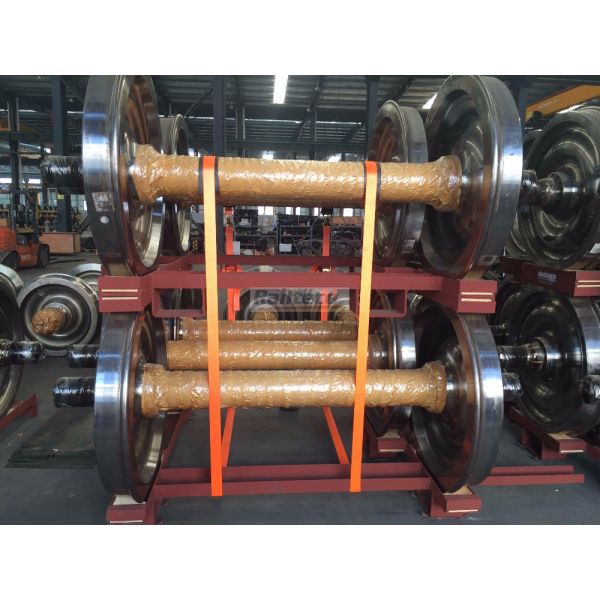

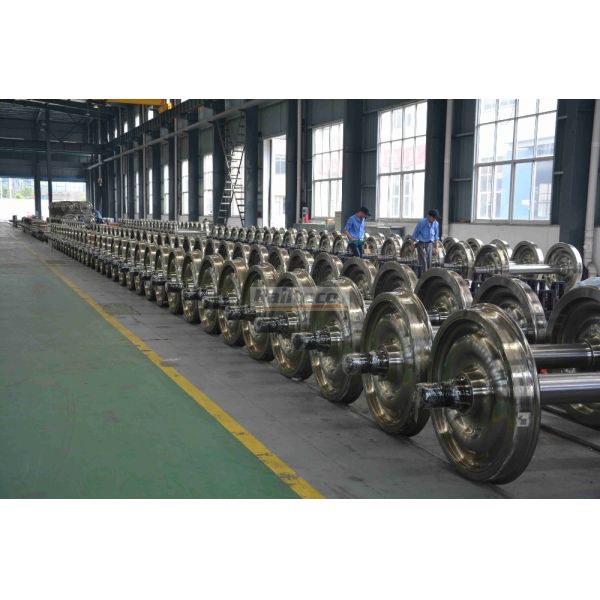

Forged Steel Railway Wheel Set BA004 High Reliability With TSI Certification
Forged Steel Railway Wheel Set BA004 High Reliability With TSI Certification
Forged Steel Railway Wheel Set BA004 High Reliability With TSI Certification
Forged Steel Railway Wheel Set BA004 High Reliability With TSI Certification
Specifications
Brand Name :
Railteco
Model Number :
BA004
Certification :
TSI
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
Annual capacity of 20000 pcs
Delivery Time :
90 to 120 days after advance payment
Packaging Details :
Railteco Standard Packing
Name :
Railway BA004 Wheel Set
Material :
Forged Steel
Standard :
AAR, UIC, EN13261, IRIS, JIS E4502, TB
Dimension :
According to customers' drawings
Application :
Wagons
Description

Railway Wheel Set BA004 Wheel Set With TSI Certification Railroad Wagon Wheelset European Standard 920mm Wheels

Description of Railway BA004 Wheelsets:

The wheelset type BA 004 is designed for heavy freight wagons with axle load of up to 23.5 tons.

Product Name BA004 wheel set
Wheel diameter 920MM
Wheel material ER7
Axle material EA1N
Standard EN13261
Use used for wagon


• Axle load: 23.5 t
• Maxi speed: 120 km/h
• Nominal diameter of a new wheel: 920 mm
• Worn out limit of the wheel: 840 mm
• Wheel material: ER7 according to EN 13262 and BN 918 277
• Axle material: EA1N according to EN 13261and BN 918 274

Specifications of Railway Wheelsets:

Product Name
railway wheelset
Material
Forged Steel
Standard
AAR M-101, UIC 811-1, EN13261, IRIS 16/95,BS 5892, JIS E4502, TB/T 2945
Application
Freight Wagon Wheels, Passenger Coach Wheels, Locomotive Wheels and many other industrial or mine vehicles wheels
Demension
400--1250mm,According to customers' drawings
Capacity
10,000 pcs per year
Inspection
Chemical analysis, Metallographic, Mechnical analysis, Ultrasonic testing, Magnetic testing, Impact testing, Hardness testing, Surface quality and dimension report
Warranty
5 years
