HTJZ-A2 Railway Axle Counting System Outdoor Equipment
HTJZ-A2 Railway Axle Counting System Outdoor Equipment
HTJZ-A2 Railway Axle Counting System Outdoor Equipment
HTJZ-A2 Railway Axle Counting System Outdoor Equipment
Specifications
Brand Name :
HTR
Model Number :
HTJZ-A2
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Product Name :
Railway Axle Counting System Outdoor Equipment
Material :
Metal
Protection :
IP66/IP68
Part :
Sensor/Trackside Electronic Unit
Minimal Board Types :
Magnetic Head Board
Description
Product Description
HTJZ-A2 Axle Counting System is a "fail-safe" track occupancy detection system designed to determine whether a track section is occupied or clear. The system consists of an indoor central processing unit and outdoor axle counting points.By accurately counting the wheel axles of trains passing over each detection point, the system can reliably determine the occupancy status of a track section, providing essential input for the railway signal control system.

Technical Advantages
· Simplified Structure: Distributed architecture combined with modular control for streamlined system design.
· Fewer Boards: Minimal board types and reduced quantity, leading to lower complexity and easier inventory management.
· Flexible Configuration: Both software and hardware are easily configurable to adapt to diverse application needs.
· Easy Installation: Clamp-based installation significantly reduces labor and installation time.
· Convenient Maintenance: Precise fault localization and quick board replacement ensure efficient maintenance
· Minimal Fault lmpact: Distributed control architecture localizes faults, limiting impact to individual sections.
· Network Communication Support: Built-in communication interfaces reduce the need for extensive indoor relay wiring, optimizing cabling and saving resources.

HTJZ-A2 Railway Axle Counting System Outdoor Equipment

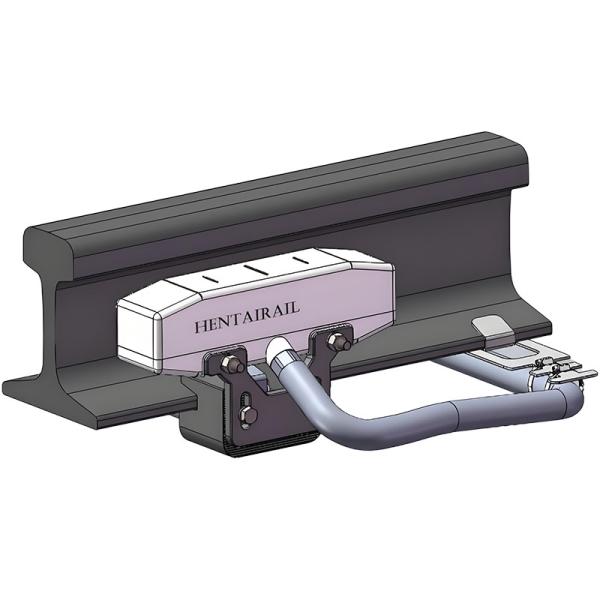

Sensor of HTJZ-A2

· The magnetic head sensor is a monolithic structure, integrating two magnetic core coils operating at different oscillation frequencies, along with the associated functional circuitry, all encapsulated within a single housing.
· It is mounted on the inner or outer side of the rail using a clamping fixture.
· The sensor features a fully potted (encapsulated) design, providing IP68-rated protection against dust and water.

HTJZ-A2 Railway Axle Counting System Outdoor Equipment

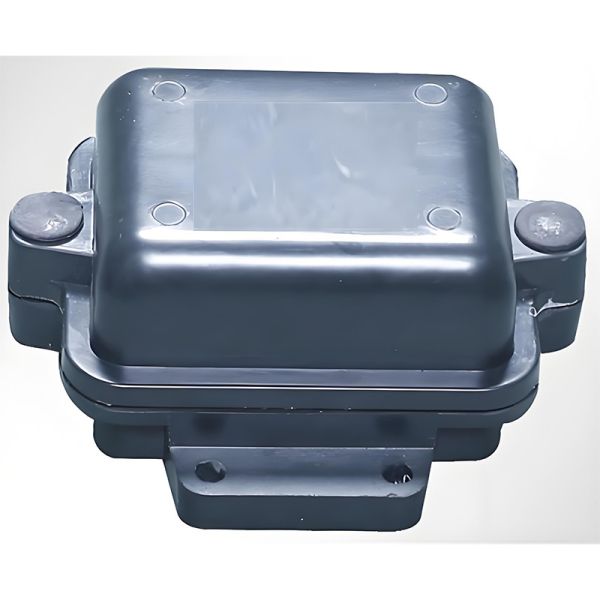

Trackside Electronic Unit of HTJZ-A2

· The junction box is used to connect the tail cable of the magnetic head sensor to the axle counting cable.
· Inside the junction box, WAGO terminals are used to enable one-to-one connection between the 4-core magnetic head tail cable and the 4-core axle counting cable.
· The junction box is mounted using a bracket, allowing it to be fixed either on the ground or on tunnel walls.
· It features a composite material housing with gasket sealing, providing IP66-rated protection against dust and water.

HTJZ-A2 Railway Axle Counting System Outdoor Equipment
