Specifications
Brand Name :
HTR
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Model Number :
HTJZ-A1
Product Name :
Railway Axle Counting System Outdoor Equipment
Material :
Metal
Protection :
IP66/IP68
Part :
Sensor/Trackside Electronic Unit
Minimal Board Types :
Magnetic Head Board
Description
Product Description
HTJZ-A1 Axle Counting System is a "fail-safe" track occupancy detection system designed to determine whether a track section is occupied or clear. The system consists of an indoor central processing unit and outdoor axle counting points. By accurately counting the wheel axles of trains passing over each detection point, the system can reliably determine the occupancy status of a track section, providing essential input for the railway signal control system.

Technical Advantages
· Simplified Structure: Distributed architecture combined with modular control for streamlined system design.
· Fewer Boards: Minimal board types and reduced quantity, leading to lower complexity and easier inventory management.
· Flexible Configuration: Both software and hardware are easily configurable to adapt to diverse application needs.
· Easy Installation: Clamp-based installation significantly reduces labor and installation time.
· Convenient Maintenance: Precise fault localization and quick board replacement ensure efficient maintenance
· Minimal Fault lmpact: Distributed control architecture localizes faults, limiting impact to individual sections.
· Network Communication Support: Built-in communication interfaces reduce the need for extensive indoor relay wiring, optimizing cabling and saving resources.

Sensor of HTJZ-A1

· The magnetic head sensor consists of a transmitting head and a receiving head, which are mounted on the rail using a clamping fixture.
· The transmitting head is positioned on the outer side of the rail, while the receiving head is installed on the inner side.
· The sensor features a fully encapsulated design and offers IP68-rated protection against dust and water ingress.

Track Occupancy Detection System HTJZ-A1 Railway Axle Counting System Outdoor Equipment

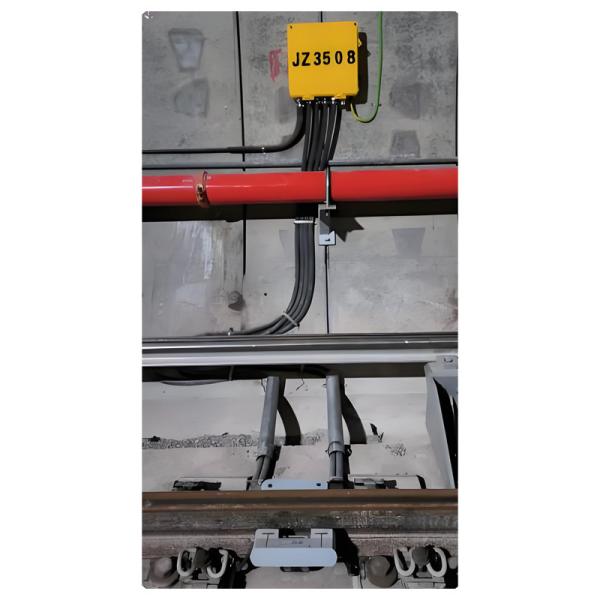

Trackside Electronic Unit of HTJZ-A1

· The Trackside Electronic Unit consists of a magnetic head board and a protective enclosure, and is mounted on the ground or wall using a mounting bracket.
· The magnetic head board adopts a modular single-board design and is housed inside the protective enclosure.
· The enclosure is made of aluminum alloy, sealed with gaskets, and provides IP66-rated protection against dust and water.

Track Occupancy Detection System HTJZ-A1 Railway Axle Counting System Outdoor Equipment
