HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
Specifications
Brand Name :
HTR
Model Number :
HTR2820
Certification :
EN50155, EN45545, GB/T 25119, etc.
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
1,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
Carton box, Wooden case, as per requires
Measuring Range :
0 kPa ~ 110 kPa
Measurement Time :
45 s (including clamping)
Spring Compression Distance :
25 mm
Pressure Measurement Accuracy :
±1.5 kPa
Description
Product Overview

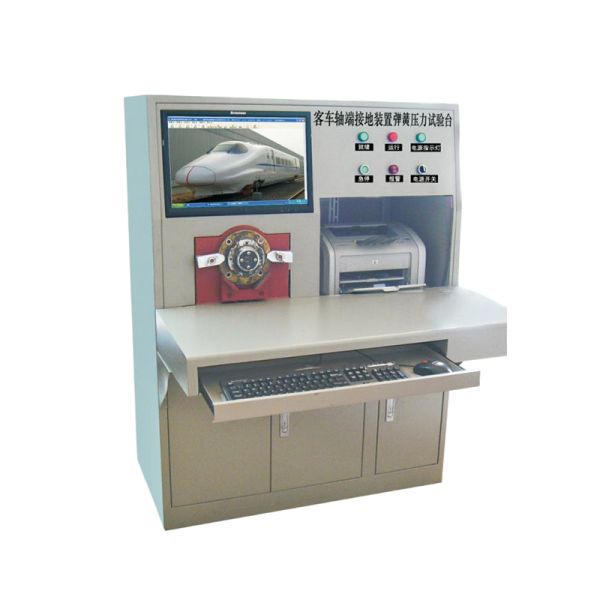

The HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench is a specialized inspection system that integrates pressure sensors and microcomputer control technology. It is specifically designed to detect the spring pressure and average value deviation of the four carbon brushes within a grounding assembly.
The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.

Main Product Features
1. This test bench can simultaneously detect 1 grounding body and 4 carbon brush springs, which is unique among domestic similar products, and its detection efficiency is 4 times that of similar products.

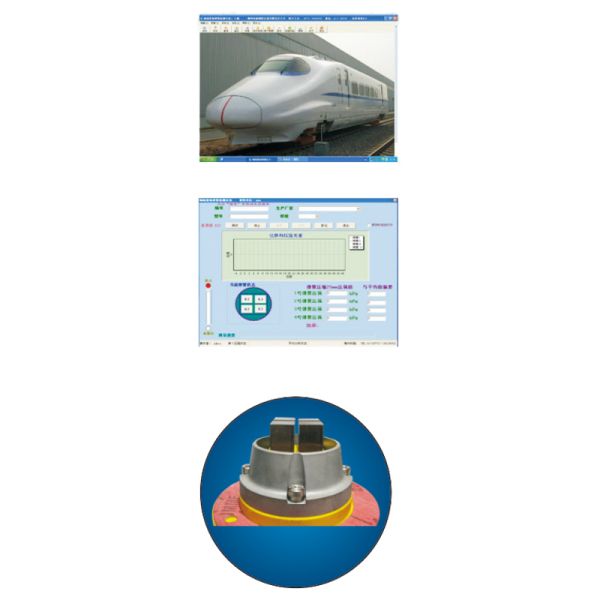

2. It features high accuracy, fast measurement speed, and supports data query, printing, storage and real-time transmission to the KMIS system.
3. It can accurately detect and judge the jamming condition of the grounding device.
Main Technical Indicators
Measuring Range 0 kPa ~ 110 kPa
Measurement Time 45 s (including clamping)
Spring Compression Distance 25 mm
Pressure Measurement Accuracy ±1.5 kPa


HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench

HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
