Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid
Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid
Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid
Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-80
Certification :
CNEX
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Packaging Details :
Carton
Grade :
Industrial
Customized support :
OEM, ODM
Model :
DTS-RD-80
Measuring range :
85m
Application :
Rivers, embankments, lakes etc
Accuracy :
±1mm
Process temperature :
-40~85℃
Process pressure :
(-0.1~0.3) MPa
Signal output :
(4~20) mA(Supports Bluetooth)/RS485
Beam angle :
6°
Power supply :
(9~36) VDC
Installation method :
Bracket, flange, thread
Description

Non Contact Radar Water Level Transmitter Sensor Meter 76-81GHz Iiquid FMCW

Product Description:

Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

Non Contact Radar Water Level Sensor Meter 76-81GHz LiquidNon Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
    Highly chemically resistant materials ensure long service life of the sensors

Technical Parameters:

Model DTS-RD-80
Application Rivers, embankments, lakes etc
Measuring Range 85m
Accuracy ±1mm
Frequency 80GHz
Process Temperature -40℃~+85℃
Process Pressure (-0.1~0.3) MPa
Process Connection Bracket, flange, thread
Output Signal 4…20mA/HART
Connection Bluetooth/NB-iot/4G
Protection Class IP68
Power Supply (9~36) VDC
Material Stainless Steel+PTFE

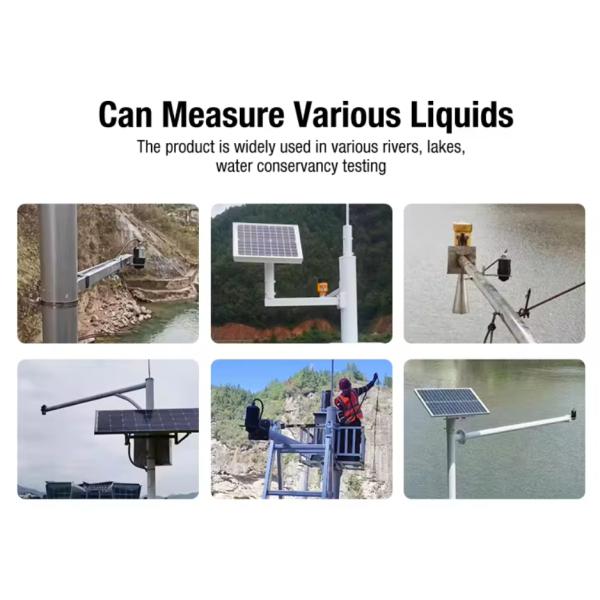

Applications:

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Non Contact Radar Water Level Sensor Meter 76-81GHz LiquidNon Contact Radar Water Level Sensor Meter 76-81GHz LiquidNon Contact Radar Water Level Sensor Meter 76-81GHz LiquidNon Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Packing and Shipping:

  • The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
    Length: 40 cm
    Width: 30 cm
    Height: 30 cm
    The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

    The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

  • Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid
