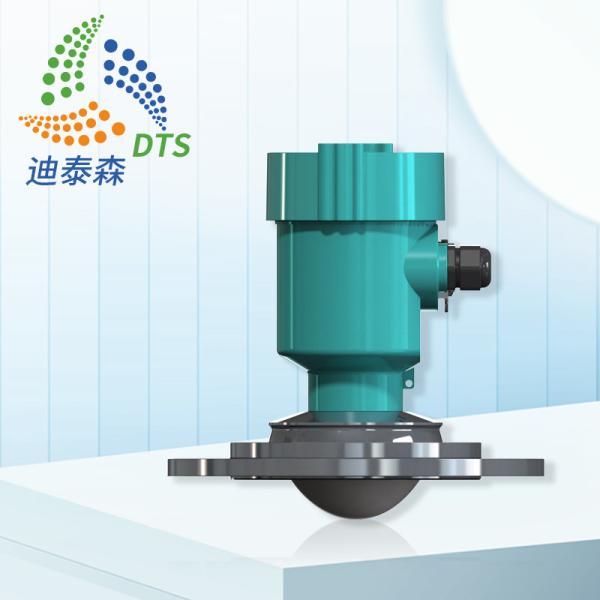

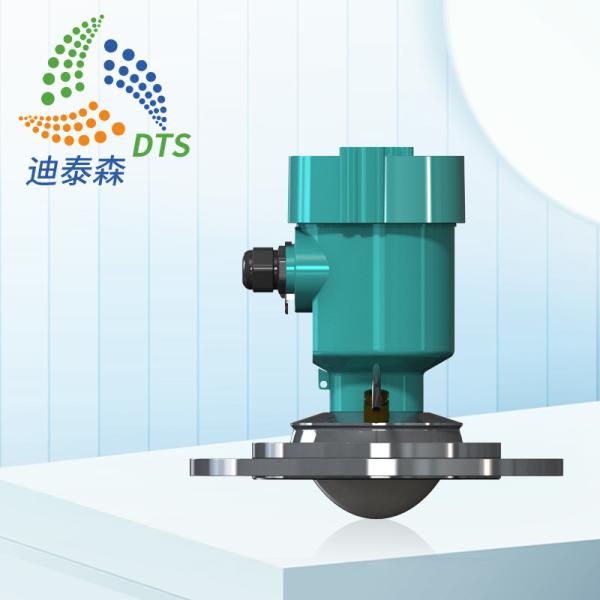

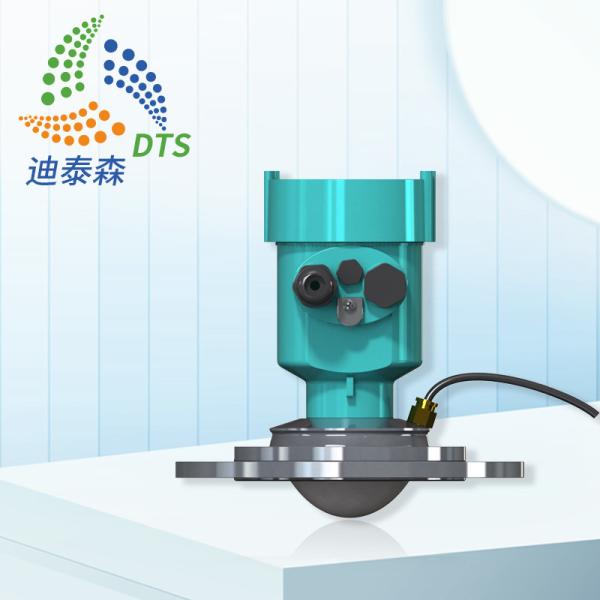

120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-85-A
Place of Origin :
China
Certification :
CNEX
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Packaging Details :
Carton
Grade :
Industrial
Customized Support :
OEM, ODM
Model :
DTS-RD-85-A
Application :
Solid Powder And Dust
Measuring Range :
120m
Frequency :
80GHz
Accuracy :
±2mm
Process Temperature :
-40℃~+120℃
Process pressure :
（-0.1~0.3）MPa
Process Connection :
Flange from DN80
Description

120m 120℃ Radar Level Transmitter Bulk Solid Powder Dust Swivelling Mounting Air/Nitrogen Purge Connection Sensor

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
  • Swivelling mounting,Easily adjustable (up to ±10°)
  • Air purge connection or Nitrogen purge connection,efficient cleaning.

Technical Parameters:

Model DTS-RD-85-A
Application Bulk Solid Powder And Dust
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.3)MPa
Process Connection Flange from DN80
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G

Applications:

This DTS-RD-85-A Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips, Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.

120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

120m Non Contact Radar Level Transmitter 80GHz Swivelling Mounting
