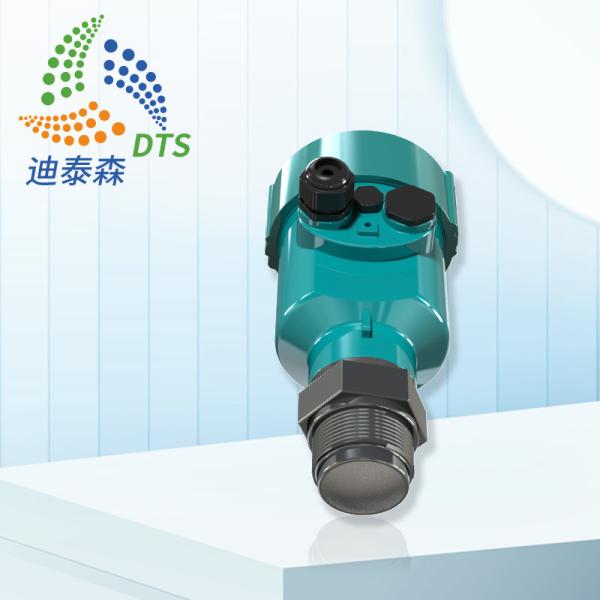

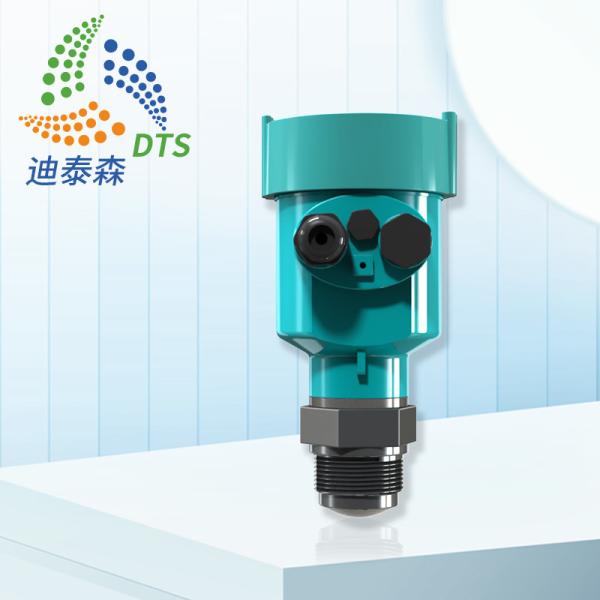

Small Radar Liquid Level Transmitter MODBUS Radar Tank Level Measurement
Small Radar Liquid Level Transmitter MODBUS Radar Tank Level Measurement
Small Radar Liquid Level Transmitter MODBUS Radar Tank Level Measurement
Small Radar Liquid Level Transmitter MODBUS Radar Tank Level Measurement
Small Radar Liquid Level Transmitter MODBUS Radar Tank Level Measurement
Small Radar Liquid Level Transmitter MODBUS Radar Tank Level Measurement
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-82-B
Certification :
CNEX
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Packaging Details :
Carton
Grade :
Industrial
Customized Support :
OEM, ODM
Model :
DTS-RD-82-B
Application :
Liquid
Measuring Range :
30m
Frequency :
80GHz
Accuracy :
±2mm
Process Temperature :
-40℃~+120℃
Process pressure :
（-0.1~0.1）MPa
Process Connection :
Thread G1½; Flange from DN50
Description

30m Radar Liquid Level Transmitter High Precision High Sensitivity 80GHz Radar Sensor Meter Gauge

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance

Technical Parameters:

Model DTS-RD-82-B
Application Liquid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G1½; Flange from DN50
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V

Applications:

This DTS-RD-82-B Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior etc, all these could use DTS-RD-82-B to monitor the level.

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
