Product Description:

Radar level meter works with high-frequency radar pulses which are emitted by an antenna and reflected from the medium surface due to a change of the dc value (relative dielectric constant). The Time-of-Flight of the reflected radar pulse is directly proportional to the distance traveled. If the tank geometry is known, the level can be calculated from this variable.

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

Features:

• 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
  2. Smaller antenna size, to meet the more working conditions for measurement.
  3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
  4. It is more penetrating and can be used normally in the case of adhesion and condensation.
  5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
  6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode.

Technical Parameters:

Applications:

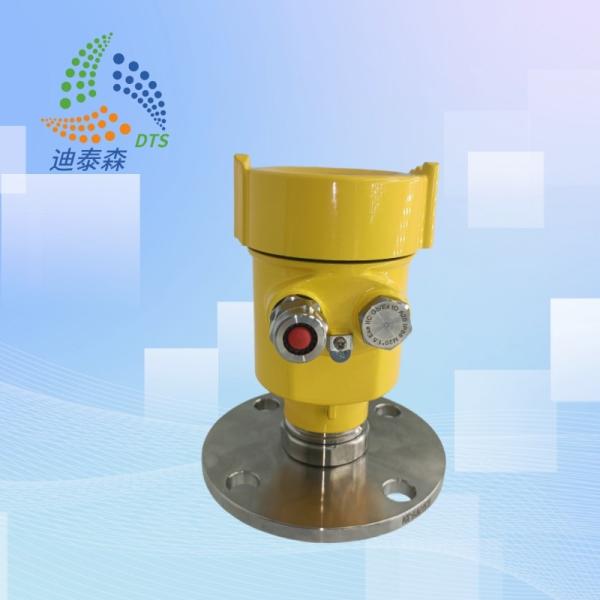

The 80G Radar Level Meter is an advanced microwave level sensor that has a measuring range of 0.15~30m and is equipped with a microwave level sensor. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos. This level meter is an ideal choice for industrial operations that require accurate and reliable measuring of liquid and solid levels.

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
