Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

The principle of the FM cCW radar bit meter is that the radar emits electromagnetic waves on the top of the tank, and the electromagnetic wave is reflected by the radar. The frequency difference δ f between the received signal and the transmitted signal is proportional to the distance R to the surface of the medium R: R= C (speed) * δ f (frequency difference) / 2 / K (frequency modulation slope). Because the light speed C and the FM slope K are known, the frequency difference δ f can be calculated to obtain the distance R between the installed position of the radar and the material surface, and then obtain the height of the material level by subtracting the spatial distance between the radar and the material surface (empty height for short) from the known total height of the tank body.

Features:

• 80GHz FMCW technology
  False echo suppression option
  Narrow beam, small blind zone and accurate measurement
  Unaffected by temperature fluctuations
  Resistant to dirt and buildup
  Measurement under vacuum and high pressure
  Small size, easy to use, less maintenance

Technical Parameters:

Applications:

The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~30m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.

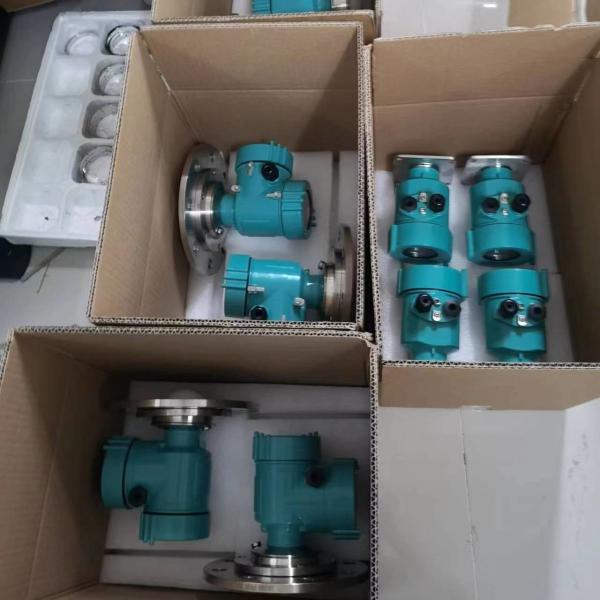

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
