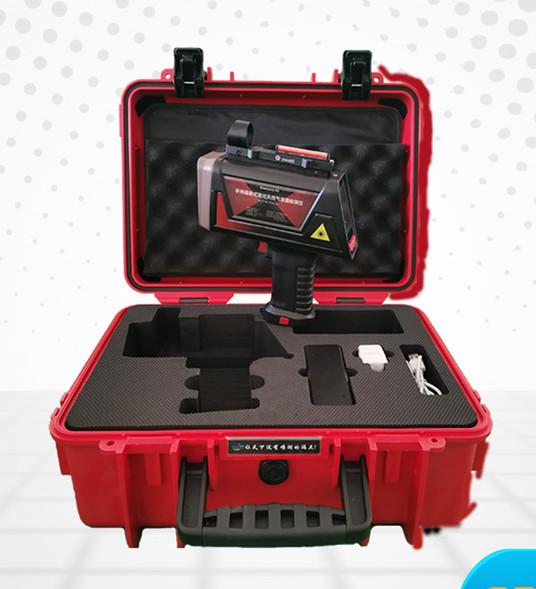

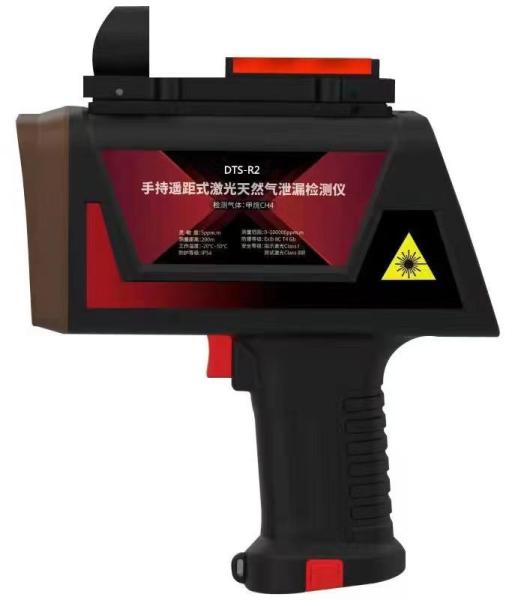

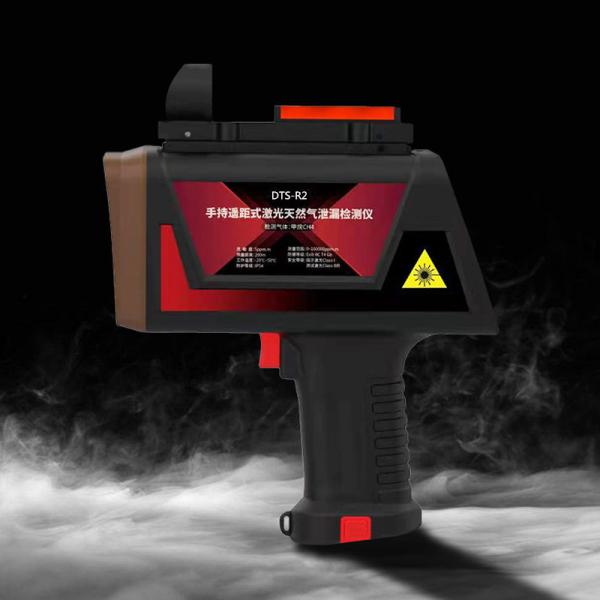

Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
Specifications
Brand Name :
DTS
Model Number :
DTS-R2
Place of Origin :
China
Certification :
CNEX SIL
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Packaging Details :
Carton
Customized Support :
OEM, ODM
Response Time :
Less Than 100ms
Detection Distance :
150m
Detection Range :
0-100000ppm.m
Ex proof satety :
Exib IIC T4 Gb
Accuracy :
5ppm.m
Size :
196*146*66mm
Weight :
900g
Description

Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66

Product Description:

This Laser Methane Detector provides a precise and reliable detection of methane concentration levels in both indoor and outdoor environments. It is highly sensitive and accurate, and can be used in various industrial, residential, and commercial applications. This convenient and easy-to-use detector is ideal for monitoring methane gas concentrations in any environment.

It uses tunable laser spectroscopy (TDLS) to quickly detect gas leaks up to 150 meters away.People can effectively detect hard-to-reach or inaccessible areas within safe areas, such as busy roads, dangling pipelines, tall towers, long haul pipelines, unattended rooms and more. Its use is not only effectively improve the efficiency and quality of walking inspection, but also makes easy which can not reach or difficult to reach the place of inspection possible.

Features:

  • ◇Remote measurement and detection, up to 200 meters (using a reflect sheet).
    ◇Compact, small, lightweight, easy to operate and maintenance free.
    ◇No specialist or special access equipment required to detect leaks.
    ◇Just respond to isolated strong absorption line of methane molecule that avoid to be interfered by other gas ingredients.
    ◇High sensitivity and very short response time(≤100ms)

    ◇Automatic self-check during start-up ensures consistent performance and reliability every time unit are turned on.

    ◇Green laser guide light is highly visible even under strong sunlight simplifying the task of locating leaks.
    ◇It can be widely used for detecting leak of natural gas transferring pipe, environment of natural gas station and concentration of coal mine gas.

Technical Parameters:

Parameter Specification
Gas Detected Methane
Detection Range 0-100000ppm.m
Accuracy 5ppm.m
Response Time Less Than 100ms
Power Supply 3.7V Li-ion Battery
Operating Temperature -25°C-50°C
Operating Humidity 0-95% RH
Fault Warning Audible-visual Alarm,Vibration Alarm, Light Alarm
Laser type Guide laser:Class 3R not direct to eyes; Measurement laser:Class 1 safe for eyes

Applications:

Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66Handheld Laser Methane Gas Detector With 1ppm Accuracy 150m Detection Distance Ip66
