Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
Specifications
Brand Name :
QINWEIYB
Model Number :
QWRD80G601
Certification :
Explosion-proof certificate ，Safety certificate
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Name :
Radar Level Gauge
Process Temp :
-40-130C
Model :
DTS-RD-85-A
Process Connection :
Flange from DN50
Temperature Range :
-40℃~+120℃
Range :
6m
Connection :
Bluetooth/NB-iot/4G
Measurement Principle :
Microwave Radar
Protection Class :
IP67
Output Signal :
4-20 mA, HART, Modbus
Description
Pulse Radar Liquid Level Gauge
Description

PTFE High precision radar level sensor for various measurement can measure the distance, level and volume of liquid, sticky,solid.Application in electric power,metallurgy, petroleum, shemical, food, medication, water, civic industry. They can work in high tempreture, high pressure, corrosion, dusty environment.

Technical Parameters
Measuring range 70 meters
Process connection thread, flange
Medium temperature -40 °C ~ 150 °C
Process pressure 0.1 ~ 4.0MPa
Accuracy ± 3mm
Protection grade IP67
Frequency range 6GHz, 26GHz
Explosion-proof grade Exia CT6 Ga, Exib CT6 Gb
Signal output 4-20mA/HART (two / four), RS485/ Mod bus
Type guided wave radar, intelligent radar, 26 GH high frequency radar
Key Features
  • Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
  • Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
  • Serious dust environment on the high level meter work has little effect.
  • A shorter wavelength, the reflection of solid surface inclination is better.
  • Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference.
  • The measuring range is smaller, for a measurement will yield good results.
  • High signal-to-noise ratio, the level fluctuation state can obtain better performance.
  • High frequency, measurement of solid and low dielectric constant of the best choice.

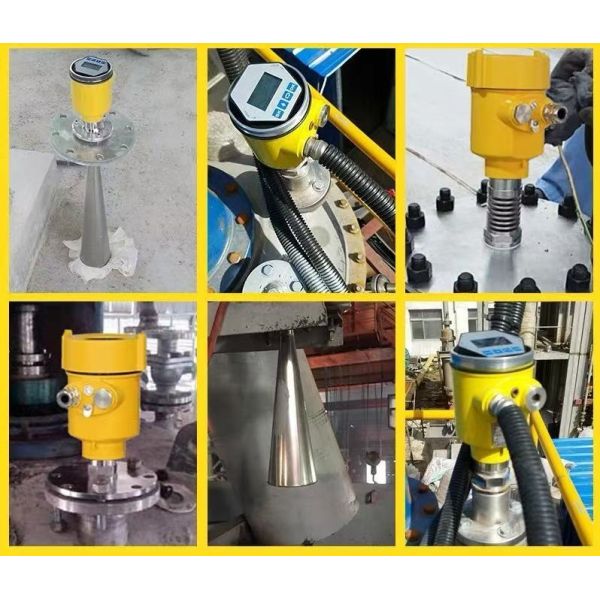

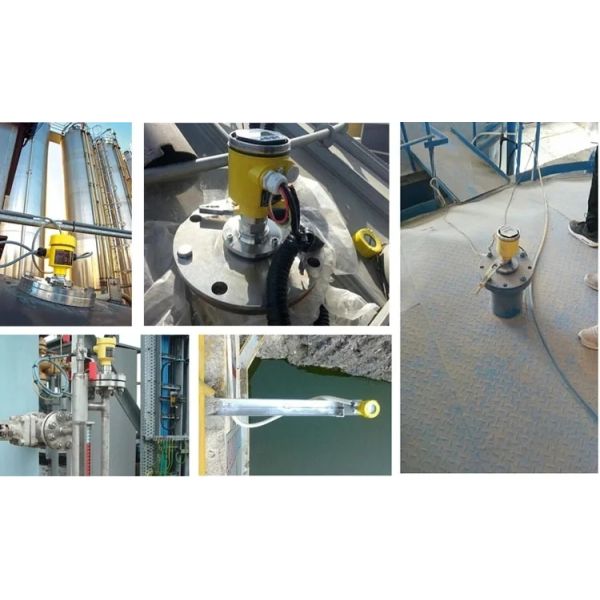

Product show and Installation

Explosion Proof Radar Level Gauge 80G, High Frequency High Precision

Explosion Proof Radar Level Gauge 80G, High Frequency High Precision

Explosion Proof Radar Level Gauge 80G, High Frequency High Precision
