Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NP-93420-IB
Certification :
CE/ExiaⅡCT6 Ga,ExdⅡCT6 Gb
Place of Origin :
Xi'an, Shaanxi,China
MOQ :
1 pcs
Price :
$450 to $1700 /pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7 working days
Packaging Details :
Carton, 60cm×30cm×30cm
Application :
Liquid/Gas/Steam
Product No. :
NP-93420-IB/-IF/-IX/-IC/-IT/-IQ/-II/-III
Gauge pressure :
0~5KPa~3.5MPa/0~0.1KPa~2MPa
Sealing pressure :
0~7KPa~100MPa
Absolute Pressure :
0~20KPa~35MPa
Diaphragm material :
316L(Optional)
Accuracy :
0.1/ 0.2 grade
Power supply :
24VDC
Output :
4... 20mA/HART/RS485/Modbus...
Display :
LCD(Optional)
Description

china suppliers low cost digital pressure sensor for water

Product Description

Description of china suppliers low cost digital pressure sensor for water

china suppliers low cost digital pressure sensor for water uses piezoresistive silicon oil-filled sensor as the signal measuring element. LED pressure transmitter signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. china suppliers low cost digital pressure sensor for water and led pressure transmitter through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance.

Detailed Images

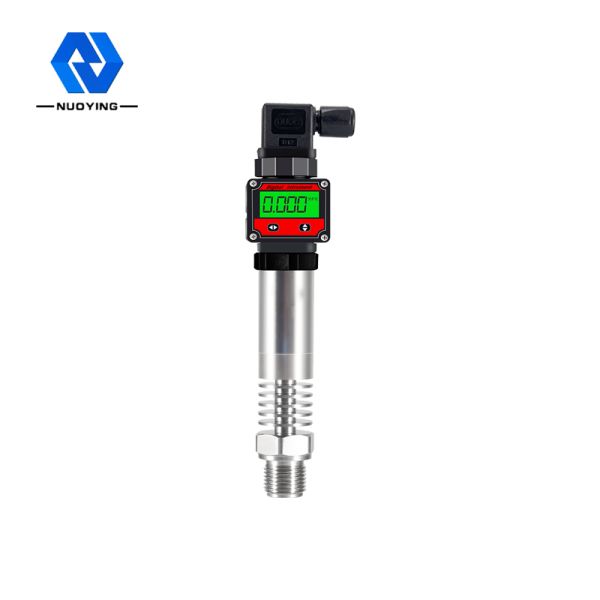

SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
Specification
Item
china suppliers low cost digital pressure sensor for water
Measurement Range
-0.1...0~0.01...~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.25%(Typical) ±0.5%(Max.)
Stability
±0.1%F.S/Year( Typical ) ±0.2%F.S/year( Max.)
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
OperatingTemperatureRange
-20℃~80℃
Power supply
12~30VDC
Output signal
4~20mA 0~10/20mA 0/1~5VDC
Pressure port
M20×1.5 G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Protection
IP65
Insulation resistance
100MΩ 100VDC
Features
SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA

Features of china suppliers low cost digital pressure sensor for water

Wide measurement range, full stainless steel,Flush diaphragm.
Various output signal
Scene adjustable
Protection: IP65
Marking:ExiaIICT6
CE certification

SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
Application

Application of china suppliers low cost digital pressure sensor for water

Compatible with 316LSS, noncorrosive gases & liquids
Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

SS316L Digital Pressure Sensor For Water Liquid 4 - 20mA
