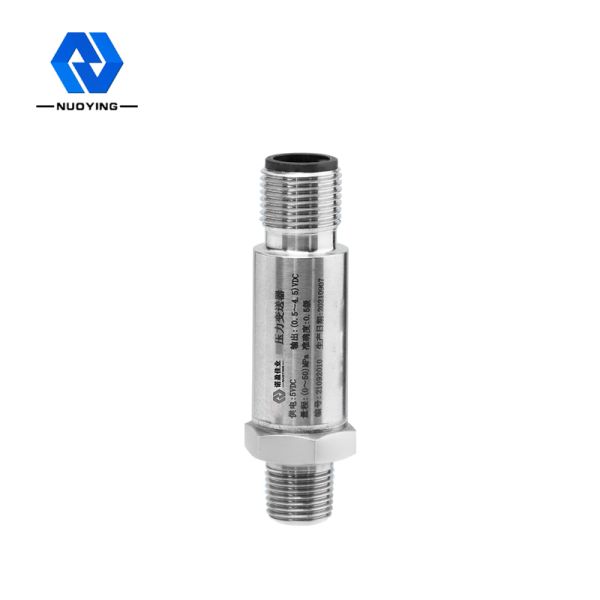

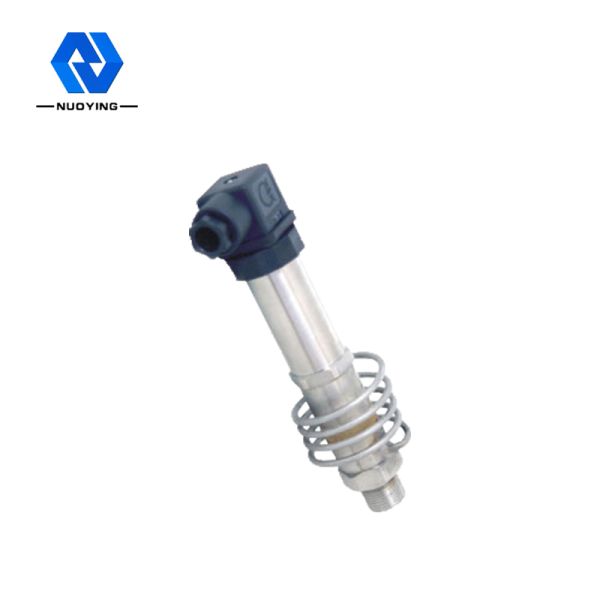

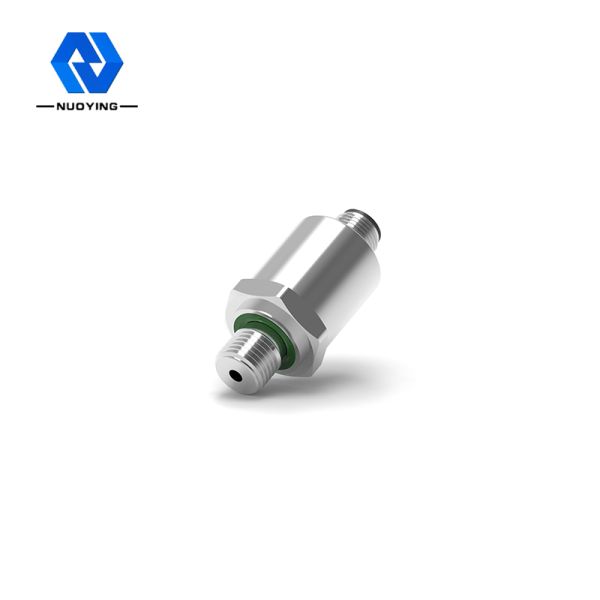

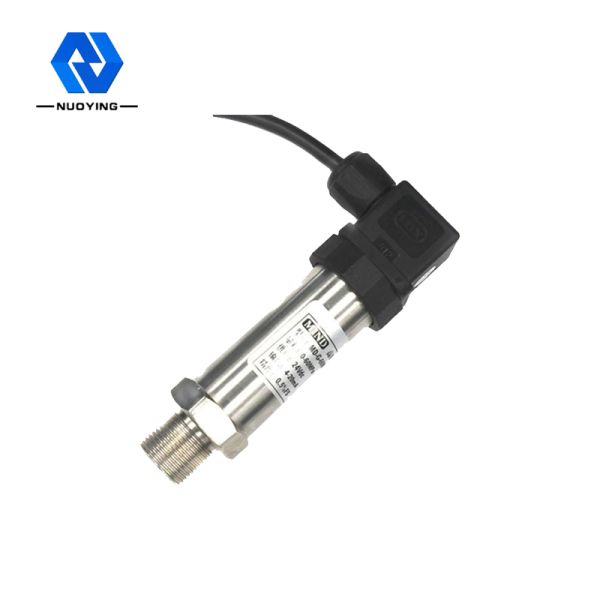

2MPa High Temperature Pressure Sensor Transmitter Thread 93420
2MPa High Temperature Pressure Sensor Transmitter Thread 93420
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NP-93420-IC
Certification :
CE
Place of Origin :
Xi'an, Shaanxi,China
MOQ :
1
Price :
Please Contact Me
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7-15 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Gauge pressure :
0~0.1KPa~2MPa
Seal gauge pressure :
0~7KPa~100MPa
Absolute pressure :
0~20KPa~35MPa
Product model :
NP-93420-IC
Typical application :
Liquid, gas, steam
Accuracy class :
Class 0.1, Class 0.2
Overload allowed :
<2 times the rated range
Description

High TemperatureType Thread 93420 Pressure Sensor Transmitter

93420 Pressure Transmitter Design Feature

◎Diffusion silicon pressure transmitter is used in dangerous and explosive fields. The product has the characteristics of low current, low voltage and low power consumption. It is an intrinsically safe explosion-proof product and is equipped with an explosion-proof certificate.

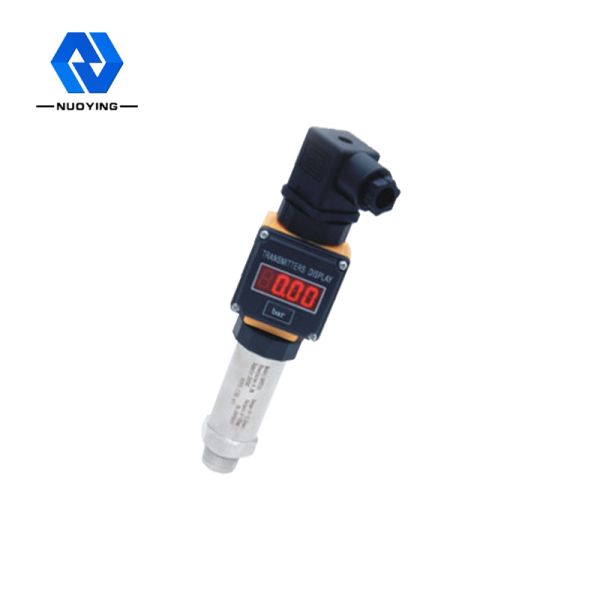

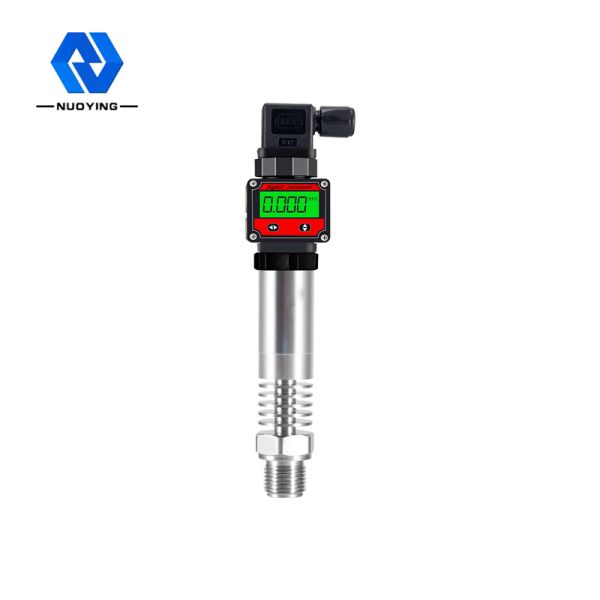

◎LED, LCD, pointer, three kinds of indicator heads, on-site reading is very convenient. They can be used to measure viscous, crystalline and corrosive media.

◎Aluminum alloy die-casting shell, three-terminal isolation, electrostatic spray protection layer, sturdy and durable.

◎4-20mA DC two-wire signal transmission, strong anti-interference ability and long transmission distance.

93420 Pressure Transmitter Working Principle

The NP93420 series is made of the piezoresistive effect of semiconductors and micromachining technology, on the specific crystal direction of the single crystal silicon wafer, using photolithography, diffusion and other semiconductor processes to make a Wheatstone bridge to form a sensitive diaphragm, when subjected to external force, a slight change occurs, the resistivity changes, and the bridge arm resistance changes (one pair becomes larger and the other becomes smaller) in the excitation voltage signal output, through computer temperature compensation, laser resistance adjustment, signal amplification and other processing methods and strict assembly testing , calibration and other processes to produce a pressure transmitter with a standard output signal.
