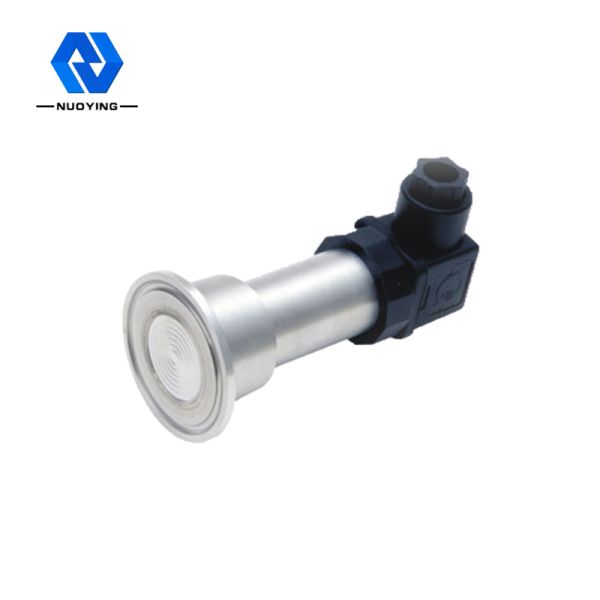

Hygienic Type 93420 Pressure Sensor Transmitter Thread Flange
Hygienic Type 93420 Pressure Sensor Transmitter Thread Flange
Specifications
Brand Name :
NUOYINGJIAYE
Model Number :
NP-93420-IQ
Certification :
CE
Place of Origin :
Xi'an, Shaanxi,China
MOQ :
1 pcs
Price :
Please Contact Me
Payment Terms :
T/T
Supply Ability :
1000 pcs/ pre month
Delivery Time :
7-15 working days
Packaging Details :
Carton, 40cm×30cm×30cm
Gauge pressure :
0~0.1KPa~2MPa
Power supply :
24VDC
Diaphragm material :
316 L(optional)
Typical application :
Liquid, gas, steam
Product model :
NP-93420-IQ
Seal gauge pressure :
0~7KPa~100MPa
Absolute pressure :
0~20KPa~35MPa
Description

Hygienic Type 93420 Pressure Sensor Transmitter Thread Flange

Pressure Sensor Transmitter Technical Parameter

Diaphragm material 316 L(optional)
Accuracy class Class 0.1, Class 0.2
Power supply 24VDC
Signal output 4... 20mA/HART/RS485/Modbus...
Ambient temperature -40~+85℃
Process temperature -25~+125℃(>+125℃can be customized)
Process connection Thread, flange (optional)
Damping time 0.1 ~ 16 s adjustable
Overload allowed <2 times the rated range
Live display LCD(optional)
Protection grade IP67
Explosion-proof grade ExiaIICT6Ga, ExdIICT6Gb(see certificate for details)

Pressure Sensor Transmitter Discription

NP93420 series diffused silicon pressure sensors are all use imported chips, a new generation of pressure sensors produced after careful structural design, signal processing and assembly, and testing in strict accordance with national standards. This series of products has stable output, high sensitivity and precision, and also has good temperature characteristics and strong anti-interference ability.
