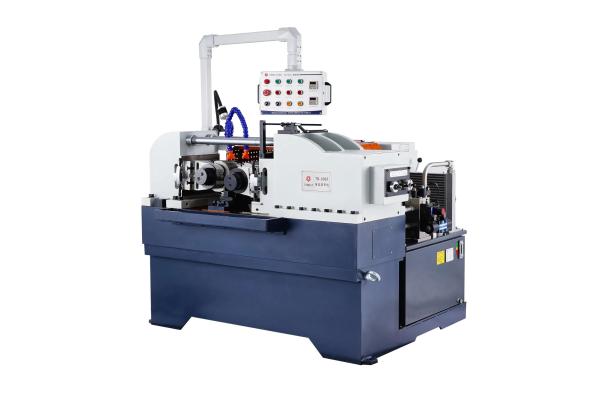

Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Specifications
Certification :
GS, CE, RoHS, ISO 9001
Price :
USD50000-USD100000
Brand Name :
Queenly
Application :
Metal
Trademark :
Queenly
Model NO. :
TB50
Origin :
China
Control Method :
Closed-Loop Control
Condition :
New
Specification :
customized
Processing Precision :
0.01~0.02(mm)
Maximum Machinable Workpiece :
320mm
Transport Package :
Wooden Pallet
Performance Classification :
High-End CNC Machine Tools
Workbench Sink Area :
945*550mm
Packaging Details :
Standard export packing
Delivery Time :
15-30DAYS
Maximum Working Load :
200kgs
Movement Method :
Contour Control
Supply Ability :
30set/mouth
Workbench Stroke :
450*350mm
MOQ :
1sert
Payment Terms :
T/T
Place of Origin :
China
Production Capacity :
2000sets/Month
Process Usage :
Metal-Cutting CNC Machine Tools
Numerical Control :
CNC/MNC
Machining Hole Range :
0.15-3.0mm
Description
High-Precision Thread Rolling Equipment

The Two-Roller Thread Rolling Machine is a high-efficiency metal forming machine designed for external thread rolling, bolt thread forming, screw thread processing, stud manufacturing, shaft threading, and precision fastener production. Using two rolling dies to press and form threads on the workpiece surface, this machine provides stable thread accuracy, smooth surface quality, high production efficiency, and reliable forming performance.

Unlike traditional thread cutting, thread rolling is a chipless cold forming process. The material is plastically deformed by the rolling dies to create strong and uniform thread profiles. This helps improve thread strength, surface hardness, fatigue resistance, and material utilization while reducing cutting waste.

The two-roller structure supports stable clamping and forming force during operation, making it suitable for processing bolts, screws, studs, threaded rods, shafts, pins, pipe fittings, and other cylindrical metal parts. Depending on roller die design and machine configuration, it can also support straight threads, fine threads, knurling, and special thread profiles.

The machine is suitable for carbon steel, alloy steel, stainless steel, copper, aluminum, and other ductile metal materials according to workpiece hardness, roller die specification, lubrication, and forming parameters. It is widely used in fastener factories, hardware production, automotive parts manufacturing, machinery components, construction parts, and industrial metalworking.

For manufacturers looking for efficient and reliable thread forming equipment, the Two-Roller Thread Rolling Machine provides high productivity, stable thread quality, strong forming capability, flexible application, and long-term industrial value.

Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming

Two-Roller Thread Rolling Machine for Precision Bolt, Screw and Shaft Thread Forming
Specification TB-S30CNC TB-S50CNC TB-S70CNC
Outer Diameter Range (mm) φ2-φ30 φ12-φ60 φ15-φ80
Pitch Range(mm) 0.5-4.0 0.5-6.0 1.0-8.0
Rolling Method
(Infeed&Through Fee Rolling)
(Infeed&Through Feed Rolling)
(Infeed&Through Feed Rolling)
Roller Outer Diameter(mm) 140-195 155-235 200-275
Roller Inner Hole(mm) φ54 φ75 φ100
Roller Maximum Thickness(mm) 120 160 240

Feed
5KW*2
( Servo Motor)
7.75KW*2
(Servo Motor)
11KW*2
(Servo Motor)
Reducer Reducer Reducer
planetary roller screw planetary roller screw planetary roller screw

Transmission Method		 3KW*2
(Servo Motor)		 11KW*2
(Servo Motor)		 22KW*2
(Servo Motor)

Reducer
Gearbox
Gearbox
/ Transmission Shaft Transmission Shaft
Control System CNC CNC CNC
Max Rolling Pressure (Tons) 40T 50T 80T
Machine Weight(KG) 5500 8000 16525
Machine Dimensions(mm) 2820*2630*2240 3650*2975*1740 4320*3890*1908
TB-S30CNC

Two-slide CNC Thread Rolling Machine Design Principle
To process higher-quality workpieces, its feed method is upgraded from single-slide to two-slide, placing the workpiece between two rollers. During operation, left and right slide rollers move toward and roll the workpiece simultaneously, ensuring uniform rolling pressure on both sides and avoiding precision loss from workpiece deflection in one-way feed. It also enables better clamping/positioning for axial feed, facilitating automated loading/unloading to enhance workpiece stability and precision. This CNC thread rolling machine is a leader in thread rolling machine industry of China.

Machine Features:

  1. Specifically designed for high-precision workpieces, especially shaft parts processing, such as ball screws, worm gears, and gear rolling densification.
  2. The feed and transmission power sources are driven by servo motors, facilitating adjustment and data collection.
  3. The feed part uses a servo motor to drive the RV reducer and planetary roller screw, increasing the machine's torque and durability. Typically, other machines use ball screws, but our planetary roller screw output is 5-10 times that of ball screws.And the accuracy of the workpiece is ensured through the detection of the grating ruler.
  4. Transmission part:
    A) The S30CNC uses a servo motor directly connected to a high-quality planetary reducer to drive the roller shaft, ensuring the roller shaft's operating precision and operability.
    B) The S50CNC & S70CNC have increased transmission torque compared to the S30CNC, Two servo motors are used to brake the two roller shafts in the gearbox, which are connected by a cage drive shaft. This improves the traditional transmission shaft's uneven speed characteristics and ensures smoother operation.
  5. The human-machine interface makes operation easier and more user-friendly.
  6. Since the workpiece is located on the middle feeding component, connecting to automation is more convenient, fast, and simple.
FAQ
1. What is a Two-Roller Thread Rolling Machine used for?

It is mainly used for external thread forming on bolts, screws, studs, threaded rods, shafts, pins, pipe fittings, and other cylindrical metal parts.

2. What is the advantage of thread rolling compared with thread cutting?

Thread rolling is a chipless cold forming process. It can improve thread strength, surface quality, fatigue resistance, and material utilization while reducing cutting waste.

3. What materials can this machine process?

It can process carbon steel, alloy steel, stainless steel, copper, aluminum, and other ductile metals depending on workpiece hardness, roller die design, lubrication, and forming parameters.

4. Can the machine process different thread sizes?

Yes. Different thread sizes and profiles can be processed by changing roller dies and adjusting machine settings according to workpiece requirements.

5. Is this machine suitable for mass production?

Yes. Thread rolling machines are suitable for high-efficiency batch production, especially for fastener factories and hardware manufacturers.

6. Can roller dies be customized?

Yes. Roller dies can be customized according to thread size, pitch, workpiece diameter, material, thread profile, and production requirements.

7. What information is needed for quotation?

Please provide workpiece material, diameter, thread size, thread length, production quantity, required accuracy, sample or drawing, and special processing requirements.
