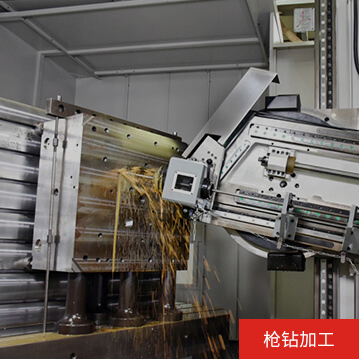

CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
Specifications
Brand Name :
Queenly
Price :
USD50000-USD100000
Structure :
Horizontal Drilling Machine
Spindle Motor :
11kw
Transport Package :
Container
Model NO. :
1.6S
Total Power Requirement :
35kw
Packaging Details :
Standard export packing
Number of Shaft :
3
Condition :
New
Spindle Feed Speed :
0~3000mm/Min
Specification :
11 ton
Place of Origin :
China
Automatic Grade :
Automatic
Machining Depth :
1200mm
Max. Spindle Speed :
6000rpm
Precision :
High Precision
Machining Hole Diameter :
3~35mm
Certification :
CE, ISO 9001
Spindle Vertical (Y) :
1200
Trademark :
QUEENLY
Supply Ability :
30set/mouth
Payment Terms :
T/T
Coolant Pressure :
1~8MPa
MOQ :
1sert
Size :
4700 X 4850 X 3100mm
Rate of Flow :
6~110 L/Min
CNC System :
Fanuc/Syntec
Hole Diameter :
50-100mm
Worktable Horizontal (X) :
1300
Production Capacity :
800pieces/Year
Delivery Time :
15-30DAYS
Worktable Max. Loading Capacity :
8ton
HS Code :
8459210000
Layout :
Horizontal
Origin :
China
Controlling Mode :
CNC
Worktable Size :
1500X1050
Description

The CNC Deep Hole Drilling System is a precision machining solution designed for deep-hole drilling, high-accuracy hole machining, mold processing, hydraulic component manufacturing, automotive parts production, aerospace components, machinery parts, and industrial metal processing applications. With CNC control and a stable machine structure, this system helps achieve accurate drilling depth, reliable hole straightness, smooth inner hole surface quality, and efficient long-depth drilling performance.

Deep-hole drilling requires strong machine rigidity, precise feed control, stable spindle performance, high-efficiency coolant supply, and reliable chip evacuation. This CNC deep hole drilling system is designed to reduce hole deviation, improve machining consistency, and maintain stable cutting performance during long-depth hole processing.

The system is suitable for processing steel, alloy steel, stainless steel, cast iron, aluminum alloy, copper alloy, mold steel, and other industrial metal materials. It can be used for mold water channels, oil holes, cooling holes, hydraulic valve holes, shaft holes, cylinder holes, and other precision deep-hole structures.

Product Introduction
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing
CNC Deep Hole Drilling System for High-Accuracy Hole Machining and Industrial Metal Processing


FAQ
  1. What is a CNC Deep Hole Drilling System used for?

    It is mainly used for deep-hole drilling, long-depth hole machining, mold water channel drilling, hydraulic valve hole processing, shaft hole drilling, oil hole machining, cooling hole processing, and industrial metal part production.

  2. What materials can this system process?

    It can process steel, alloy steel, stainless steel, cast iron, aluminum alloy, copper alloy, mold steel, and other industrial metals depending on drill type, coolant condition, spindle power, feed rate, and workpiece hardness.

  3. Why is CNC control important for deep-hole drilling?

    CNC control helps accurately manage drilling depth, feed speed, spindle speed, machining path, and process parameters. This improves repeatability, hole accuracy, and production consistency.

  4. What are the advantages of CNC deep-hole drilling?

    CNC deep-hole drilling provides better hole straightness, smoother inner hole surface, more stable drilling accuracy, reduced manual error, and better consistency for batch production.

  5. Why is coolant important in deep-hole drilling?

    Coolant helps cool the cutting tool, reduce friction, flush chips out of the hole, improve inner hole surface quality, and protect the tool during long-depth drilling.

  6. Can the system be customized?

    Yes. Machine travel, drilling depth, spindle configuration, coolant system, clamping method, control system, and workpiece support structure can be customized according to production requirements.

  7. What information is needed for quotation?

    Please provide workpiece material, hole diameter, drilling depth, required accuracy, workpiece size, maximum workpiece weight, production quantity, drawing, and application industry.
