Qtenboard 35 Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Digital Signage
Qtenboard 35 Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Digital Signage
Qtenboard 35 Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Digital Signage
Qtenboard 35 Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Digital Signage
Qtenboard 35 Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Digital Signage
Qtenboard 35 Ultra-Wide Bar LCD Display with 3000:1 Contrast Ratio and 500cd/m² Brightness for Digital Signage
Specifications
Brand Name :
Qtenboard
Model Number :
shelf-edge display
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-10 days
Description
Product Overview
Experience commercial display excellence with the Qtenboard Bar LCD Display series—where 23.1"-37" screens meet stunning visuals. 4K UHD (28"/37") delivers crisp menu details, ultra-wide (29"/35") enhances wayfinding maps, and 3000:1 contrast makes text/logos stand out in any environment.
Its 16.7M color range reproduces food, products, and branding accurately, while 500cd/m² brightness cuts through store lights or transit station glare. We add OEM/ODM flexibility and a 1-year warranty—so your visuals shine, worry-free.
Core Advantages
  • Stunning clarity: 4K UHD resolution for premium visual impact
  • Color accuracy: 16.7M colors for true-to-brand/product representation
  • Glare resistance: 500cd/m² brightness for high-ambient-light spaces
  • Detail focus: 3000:1 contrast for sharp text and image edges
Technical Specifications
Specification Category Detailed Parameters
Size Range 23.1", 24", 28", 29", 35", 37"
Active Display Area - Narrow Screen Models: 585.6(H)×48.19(V)mm, 878.4(H)×48.19(V)mm
- Standard Screen Models: 597.888(H)×112.104(V)mm, 699.84(H)×131.22(V)mm, 709.84(H)×202.22(V)mm, 903(H)×257(V)mm
Resolution - HD Basic Models: 1920×360, 1920×1080
- Ultra-Wide Screen Models: 2560×1080
- 4K UHD Models: 3840×2160
Display Performance - Brightness: 500cd/m² (Unified for all models)
- Contrast Ratio: 3000:1 (Unified for all models)
- Viewing Angle: 178°(H)/178°(V) (Unified for all models)
- Response Time: 5ms (Unified for all models)
- Color: 16.7M (Unified for all models)
Interface Configuration - Basic Interface Set: HDMI, VGA, USB, AV, BNC (Standard for all models)
- Premium Upgraded Interfaces: HDMI 2.0, USB 3.0 (Equipped on 28", 37" models)
Power & Consumption - Power Supply: AC100-240V, 50/60Hz (Unified for all models)
- Power Consumption: ≤30W (23.1"), ≤35W (24"), ≤40W (29"), ≤45W (28", 35"), ≤50W (37")
Operating Environment - Operating Temperature: 0℃~50℃ (Unified for all models)
- Storage Temperature: -20℃~60℃ (Unified for all models)
Mounting Options Wall Mount, Stand Mount (Supported by all models, with matching accessories included)
Certifications CE, RoHS, FCC (All models uniformly certified)
Industry Applications
Retail Industry

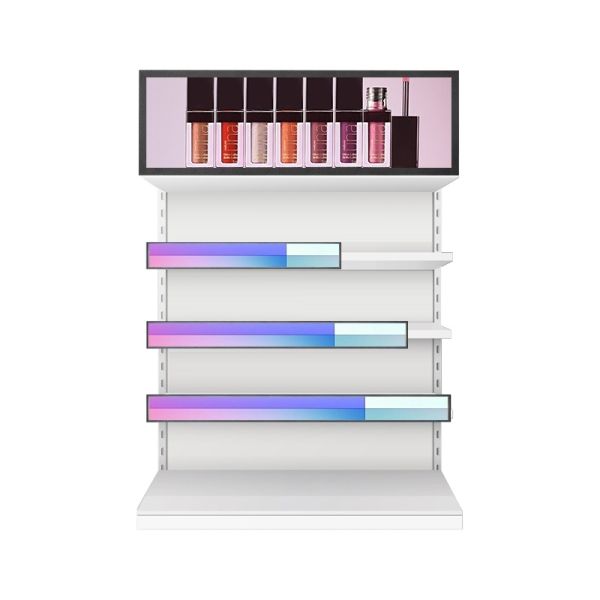

  • Price tag display for supermarket shelves
  • Promotion information showcase in convenience stores
  • Brand culture promotion in clothing stores
Transportation Sector
  • Station information broadcast inside buses
  • Route guidance in subway stations
  • Baggage claim area instructions in airports
Catering Industry
  • Digital menu display in restaurants
  • New product recommendations in cafes
  • Discount promotion in fast-food restaurants
Commercial Premises
  • Shopping mall wayfinding systems
  • Office building floor indicators
  • Information display in hotel lobbies
Customization Services
OEM/ODM Services
  • Brand customization: Custom logo printing according to customer specifications
  • Appearance design customization: Personalized enclosure design solutions
  • Function customization: Add or remove interfaces and special functions as needed
  • Software customization: Development of customized display control software
CKD/SKD Supply Models
  • CKD (Complete Knock-Down): All components provided for independent assembly
  • SKD (Semi-Knock-Down): Partially assembled components to streamline production
  • Flexible packaging solutions: Custom packaging based on transportation requirements
  • Technical support: Complete assembly guidelines and technical documentation
Frequently Asked Questions
Q1: What is the product warranty period?
A1: We provide a one-year warranty service. During this period, products with quality issues caused by non-human factors receive free repair or replacement services.
Q2: Do you support product customization?
A2: Yes, we fully support OEM/ODM customization services, including brand logo customization, appearance design, function configuration, software systems, and other customization needs. We provide tailored solutions according to specific customer requirements.
Q3: What supply models do you offer?
A3: We support two supply models: CKD (Complete Knock-Down) and SKD (Semi-Knock-Down), meeting the production and assembly needs of different customers. Complete technical support and assembly guidance are provided.
Q4: What installation methods do the products support?
A4: All models support wall-mounted installation and stand installation. Corresponding installation accessories are included, making installation simple and convenient while optimizing space utilization.
Q5: What is the operating temperature range of the product?
A5: The product operates within a temperature range of 0℃~50℃ and can be stored at -20℃~60℃, adapting to most indoor and outdoor commercial environments.
Q6: What certifications do the products have?
A6: All products have passed CE, RoHS, and FCC international certifications, complying with global quality standards and environmental requirements for safe export to international markets.
Q7: What is the delivery time for sample orders?
A7: Sample orders are typically produced and delivered within 3-5 working days. Bulk order delivery times depend on quantity and can be negotiated with our sales team.
Q8: What interfaces do the products support?
A9: Products feature comprehensive interfaces including HDMI, VGA, USB, AV, and BNC. Premium models support HDMI 2.0 and USB 3.0 high-speed interfaces to accommodate various device connection requirements.
Q9: How to obtain a product quotation?
A10: Contact our sales team through our official website, email, or online consultation. Provide the required product model, quantity, and specific requirements for a detailed quotation within 24 hours.
