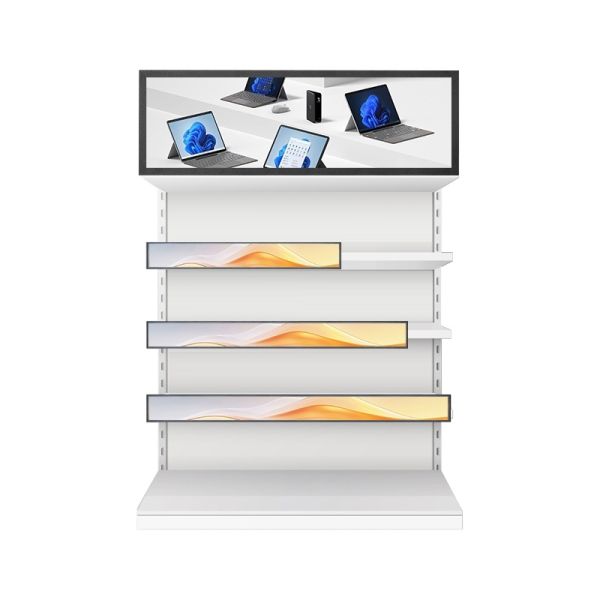

500cdm2 Brightness Qtenboard Bar LCD Display Commercial Monitor 23.1 to 37 Inch Digital Signage Featuring 178 Degree Viewing Angle
500cdm2 Brightness Qtenboard Bar LCD Display Commercial Monitor 23.1 to 37 Inch Digital Signage Featuring 178 Degree Viewing Angle
500cdm2 Brightness Qtenboard Bar LCD Display Commercial Monitor 23.1 to 37 Inch Digital Signage Featuring 178 Degree Viewing Angle
500cdm2 Brightness Qtenboard Bar LCD Display Commercial Monitor 23.1 to 37 Inch Digital Signage Featuring 178 Degree Viewing Angle
500cdm2 Brightness Qtenboard Bar LCD Display Commercial Monitor 23.1 to 37 Inch Digital Signage Featuring 178 Degree Viewing Angle
500cdm2 Brightness Qtenboard Bar LCD Display Commercial Monitor 23.1 to 37 Inch Digital Signage Featuring 178 Degree Viewing Angle
Specifications
Brand Name :
Qtenboard
Model Number :
shelf-edge display
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-10 days
Description
Product Overview
Engineered for commercial excellence, the Qtenboard Bar LCD Display series delivers professional-grade performance across 23.1" to 37" models. From 1920×360 basic resolutions to 3840×2160 4K UHD, it meets diverse content needs—whether for retail promotions or transit announcements.
Its 500cd/m² brightness cuts through ambient light, while 178° wide viewing angles ensure every audience gets consistent color. We offer OEM/ODM customization (logo, functions, software) and CKD/SKD supply, with a 1-year warranty to cover all commercial use cases.
Core Advantages
  • Resolution versatility: 4K UHD (28"/37") + ultra-wide (29"/35") + HD basics
  • Display precision: 3000:1 contrast + 16.7M colors for lifelike visuals
  • Interface completeness: HDMI/VGA/USB/AV/BNC (HDMI 2.0 on premium models)
  • Environmental adaptability: 0℃~50℃ operating temp + low power consumption
Technical Specifications
Specification Category Detailed Parameters
Size Range 23.1", 24", 28", 29", 35", 37"
Active Display Area - Narrow Screen Models: 585.6(H)×48.19(V)mm, 878.4(H)×48.19(V)mm
- Standard Screen Models: 597.888(H)×112.104(V)mm, 699.84(H)×131.22(V)mm, 709.84(H)×202.22(V)mm, 903(H)×257(V)mm
Resolution - HD Basic Models: 1920×360, 1920×1080
- Ultra-Wide Screen Models: 2560×1080
- 4K UHD Models: 3840×2160
Display Performance - Brightness: 500cd/m² (Unified for all models)
- Contrast Ratio: 3000:1 (Unified for all models)
- Viewing Angle: 178°(H)/178°(V) (Unified for all models)
- Response Time: 5ms (Unified for all models)
- Color: 16.7M (Unified for all models)
Interface Configuration - Basic Interface Set: HDMI, VGA, USB, AV, BNC (Standard for all models)
- Premium Upgraded Interfaces: HDMI 2.0, USB 3.0 (Equipped on 28", 37" models)
Power & Consumption - Power Supply: AC100-240V, 50/60Hz (Unified for all models)
- Power Consumption: ≤30W (23.1"), ≤35W (24"), ≤40W (29"), ≤45W (28", 35"), ≤50W (37")
Operating Environment - Operating Temperature: 0℃~50℃ (Unified for all models)
- Storage Temperature: -20℃~60℃ (Unified for all models)
Mounting Options Wall Mount, Stand Mount (Supported by all models, with matching accessories included)
Certifications CE, RoHS, FCC (All models uniformly certified)
Industry Applications
Retail Industry
  • Price tag display for supermarket shelves
  • Promotion information showcase in convenience stores
  • Brand culture promotion in clothing stores
Transportation Sector
  • Station information broadcast inside buses
  • Route guidance in subway stations
  • Baggage claim area instructions in airports
Catering Industry
  • Digital menu display in restaurants
  • New product recommendations in cafes
  • Discount promotion in fast-food restaurants
Commercial Premises
  • Shopping mall wayfinding systems
  • Office building floor indicators
  • Information display in hotel lobbies
Customization Services
OEM/ODM Services
  • Brand customization: Custom logo printing according to customer specifications
  • Appearance design customization: Personalized enclosure design solutions
  • Function customization: Add or remove interfaces and special functions as needed
  • Software customization: Development of customized display control software
CKD/SKD Supply Models
  • CKD (Complete Knock-Down): All components provided for independent assembly
  • SKD (Semi-Knock-Down): Partially assembled components to streamline production
  • Flexible packaging solutions: Custom packaging based on transportation requirements
  • Technical support: Complete assembly guidelines and technical documentation
Frequently Asked Questions
Q1: What is the product warranty period?
A1: We provide a one-year warranty service. During this period, products with quality issues caused by non-human factors receive free repair or replacement services.
Q2: Do you support product customization?
A2: Yes, we fully support OEM/ODM customization services, including brand logo customization, appearance design, function configuration, software systems, and other customization needs. We provide tailored solutions according to specific customer requirements.
Q3: What supply models do you offer?
A3: We support two supply models: CKD (Complete Knock-Down) and SKD (Semi-Knock-Down), meeting the production and assembly needs of different customers. Complete technical support and assembly guidance are provided.
Q4: What installation methods do the products support?
A4: All models support wall-mounted installation and stand installation. Corresponding installation accessories are included, making installation simple and convenient while optimizing space utilization.
Q5: What is the operating temperature range of the product?
A5: The product operates within a temperature range of 0℃~50℃ and can be stored at -20℃~60℃, adapting to most indoor and outdoor commercial environments.
Q6: What certifications do the products have?
A6: All products have passed CE, RoHS, and FCC international certifications, complying with global quality standards and environmental requirements for safe export to international markets.
Q7: What is the delivery time for sample orders?
A7: Sample orders are typically produced and delivered within 3-5 working days. Bulk order delivery times depend on quantity and can be negotiated with our sales team.
Q8: What interfaces do the products support?
A9: Products feature comprehensive interfaces including HDMI, VGA, USB, AV, and BNC. Premium models support HDMI 2.0 and USB 3.0 high-speed interfaces to accommodate various device connection requirements.
Q9: How to obtain a product quotation?
A10: Contact our sales team through our official website, email, or online consultation. Provide the required product model, quantity, and specific requirements for a detailed quotation within 24 hours.
