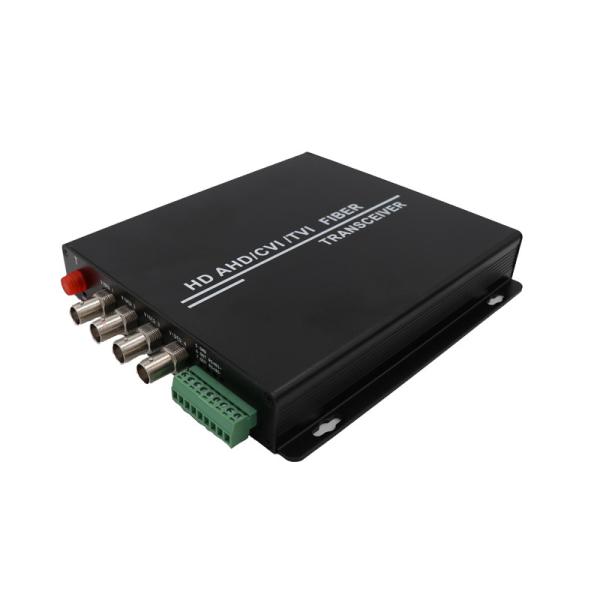

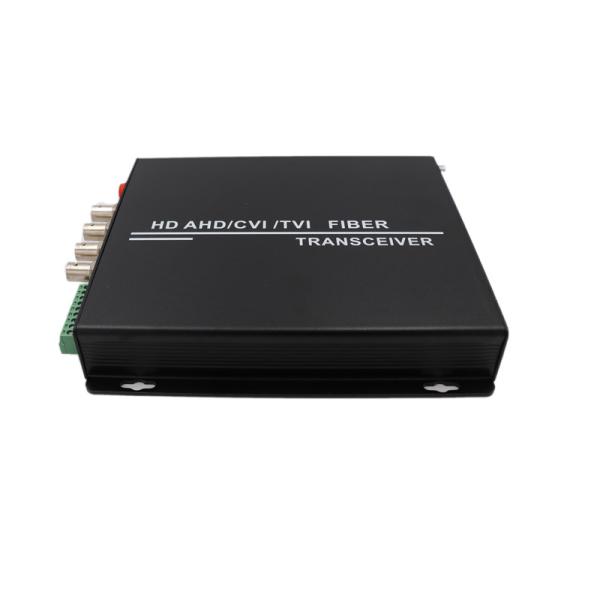

Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network
Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network
Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network
Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network
Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network
Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network
Specifications
Brand Name :
Mray
Model Number :
MR-4V1D-F20-1080P
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
4ch 1080P HD AHD CVI TVI Fiber Video Converter with Reverse Data
BNC port :
4Ch BNC port
Wavelength :
1310/1550nm
Operating temperature :
0℃ to +70℃
Data :
1CH Reverse Data
Fiber type :
Single Fiber Single Mode
Application :
FTTH FTTB FTTX Network
Warranty :
3 Years
Description

4ch 1080P HD AHD CVI TVI Fiber Video Converter with Reverse Data

Description

Miray's TVI/CVI/AHD/CVBS 4 in 1 Video to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the tvi/cvi/ahd/cvbs composite signals to optical signals to achieve long distance 20KM transmission through fibers.

Features​

  • 10-digit coding and non-compression video transmission
  • Automatically reply for overloading protection
  • Status indicationg
  • No electromagnetic,frequency and groud current interface
  • Surface mounted technology
  • Advanced auto-adaptive technology avoiding pn-site electric or optical adjustment
  • LED status indicating the operation of the surveillance
  • Automatically compatible with PAL, NTSC and SECAM video format

Technical Specification

Feature

Description

Optical

Fiber Type

Multi-mode fiber or Single mode fiber

Fiber Connector

FC/ST/SC

Distance

0~80km (Optional)

Wavelength

Transmitter
Tx1310nm, Rx1550nm.
Receiver
Tx1550nm,Rx1310nm.

Tx

Input level

>500mVp-p

self-adaption cable equilibrium

1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m

Input/Output Impedance

75Ω

Physical Interface

1/2/4/8 channel BNC connector

Rx

Output level

1Vp-p

Input/Output Impedance

75Ω

Physical Interface

1/2/4/8 channel BNC connector

Data

Transmission Media

Coaxial cable

Baud Rate

1200~9600bit/s

Bit Error Rate

≦10

Operation Mode

Half-Duplex

Indicators

LOS,PWR,DATA,VIDEO

Mean time between failures (MTBF)

>100 000 hours

General

EPS

DC5V

Power Consumption

≦5W

Operation Temperature

-40℃~75℃

Operation Humidity

10%~90%

Atmospheric Pressure

86kpa~106kpa

Mounting Method

Wall-mounted

Specification of Customized Functions

Data

Physical interface: Industrial standard terminal
Encoded type: RS485/RS422/RS232/Manchester
Data Rate: DC~300Kbps
Operating mode: Reverse simplex/half-duplex
BER: <10-9

Audio

Connector: Terminal Blocks
Audio input / output impedance: 600Ω(Balance/ unbalance)
Audio input / output voltage: 2Vp-p ( typical value)
Audio input / output level: 0dBm ( typical value)
Video bandwidth: 20HZ~20KHZ
Audio digital encoded bandwidth: 24bit
Audio signal-to-noise ratio: S/N≥85dB

Telephone

Connector: RJ11
Bandwidth: 8KHZ
Features: Support call-showing function ;support H-F
Operating mode: Point to point hot-line mode / FXS-FXO

Ethernet

Connector: RJ45
Support mode: Half duplex or Full duplex
Standards: IEEE802.3
Data rate: 10M / 100Mbps
Bandwidth: 25M

Contact Closure

Physical connector: Industrial standard connector port
Alarm output: Support any type of active or passive alarm output
Data Interface: Support TTL, RS232/485/422 or relay output

Optical Budget

Multi-mode / 20dBm / 2KM
Single mode / 20dBm / 20KM
Single mode / 22dBm / 40KM
Single mode / 25dBm / 60KM


Ordering Information

Model

Description

MR-4V-F20-720P

720P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber , 4CH video, 20KM, FC, Iron,

1V↑

MR-4V1D-F20-720P

720P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber, 4CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

MR-4V-F20-1080P

1080P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber , 4CH video, 20KM, FC, Iron,

1V↑

MR-4V1D-F20-1080P

1080P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber, 4CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

Product Show


Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network

Connection

Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network

Product Details

Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network

Power Adapters

Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network

Video Application

Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network

Production Flow

Ahd To Cvbs Video To Fiber Optic Converter Reverse Data 4CH FTTX Network


For more details, welcome to inquire us freely.
