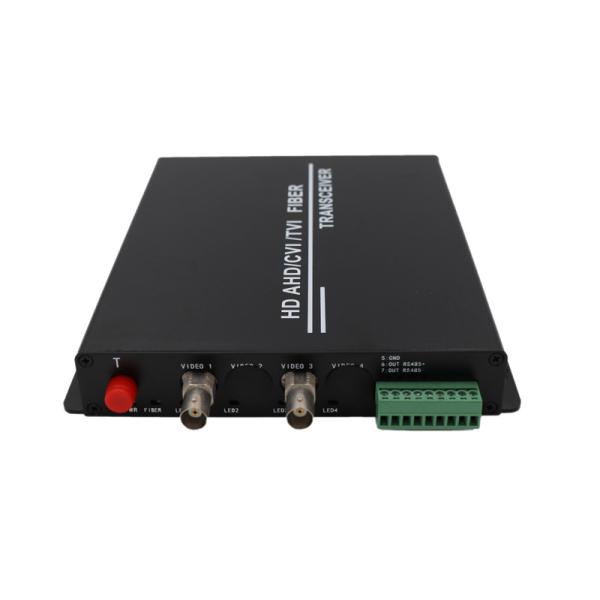

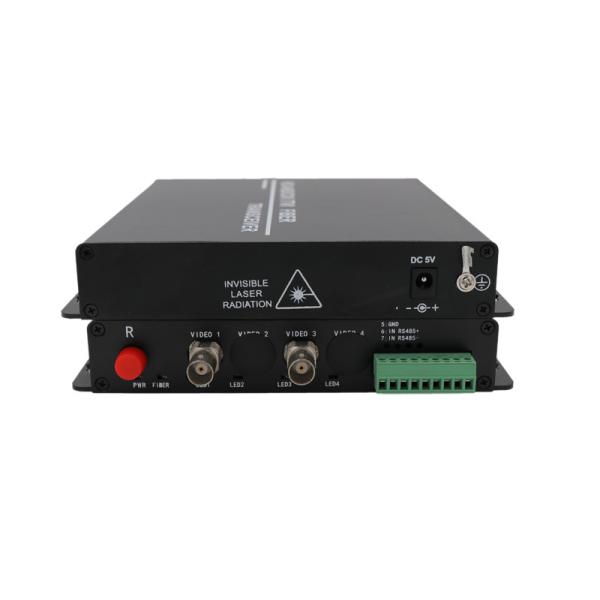

2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission
2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission
2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission
2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission
2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission
2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission
Specifications
Brand Name :
Mray
Model Number :
MR-2V-F20-1080P
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
1pcs/box, 40pcs per standard export carton
Product name :
2ch 720P 1080P HDTVI CVI AHD CVBS Fiber Optical Video Converter
BNC port :
2Ch BNC port
Wavelength :
1310/1550nm
Operating temperature :
0℃ to +70℃
Connector :
FC
Fiber type :
Single Fiber Single Mode
Application :
FTTH FTTB FTTX Network
Warranty :
3 Years
Description

2ch 720P 1080P HDTVI CVI AHD CVBS Fiber Optical Video Converter

Description

Miray's 2-Ch TVI/CVI/AHD to Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 2 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals.

Features​

  • Advanced lightning protection design, support 4kv lightning protection;

  • Industrial-grade design, smt process;

  • Full digital optical transmission platform, flexible configuration of multiple services on the same platform;

  • Can provide desktop, centralized card rack type 2 ways;

  • Core of large-scale application-specific integrated circuits with independent intellectual property rights;

  • Single fiber transmission, optional 20km, 40km, 60km, 80km, 100km, 120km long-distance transmission.

  • Supports 1920X1080P / 30Hz, 2560x1440P / 30Hz 2560x1920P / 30Hz resolution analog high definition coaxial video with 3 million, 4 million and 5 million pixel cameras, and broadcast-quality transmission quality

  • Uncompressed real-time transmission to ensure the best video transmission effect;

Application

  • Remote OB Van/Truck Video Feeds
  • Long-haul Signal Transport
  • TV station/video conference
  • Lecture Hall Projector Connectivity
  • Medical/Surgical Room Broadcast
  • Building to video conference calling
  • Small corporate campus video links

Technical Specification

Feature

Description

Optical

Fiber Type

Multi-mode fiber or Single mode fiber

Fiber Connector

FC/ST/SC

Distance

0~80km (Optional)

Wavelength

Transmitter
Tx1310nm, Rx1550nm.
Receiver
Tx1550nm,Rx1310nm.

Tx

Input level

>500mVp-p

self-adaption cable equilibrium

1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m

Input/Output Impedance

75Ω

Physical Interface

1/2/4/8 channel BNC connector

Rx

Output level

1Vp-p

Input/Output Impedance

75Ω

Physical Interface

1/2/4/8 channel BNC connector

Data

Transmission Media

Coaxial cable

Baud Rate

1200~9600bit/s

Bit Error Rate

≦10

Operation Mode

Half-Duplex

Indicators

LOS,PWR,DATA,VIDEO

Mean time between failures (MTBF)

>100 000 hours

General

EPS

DC5V

Power Consumption

≦5W

Operation Temperature

-40℃~75℃

Operation Humidity

10%~90%

Atmospheric Pressure

86kpa~106kpa

Mounting Method

Wall-mounted


Ordering Information

Model

Description

MR-2V-F20-720P

720P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber , 2CH video, 20KM, FC, Iron,

1V↑

MR-2V1D-F20-720P

720P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber, 2CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

MR-2V-F20-1080P

1080P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber , 2CH video, 20KM, FC, Iron,

1V↑

MR-2V1D-F20-1080P

1080P AHD/TVI/CVI Fiber Video Converter,single

mode single fiber, 2CH video+ reverse data,

20KM, FC, Iron, 1V↑+1D↓

Product Show


2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission

Connection

2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission

Product Details

2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission

Power Adapters

2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission

Video Application

2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission

Production Flow

2ch Fiber Optic Video Converter HDTVI BNC Port 1310nm 20km transmission


For more details, welcome to inquire us freely.
