Specifications
Brand Name :
Mray
Model Number :
SFP-GE-BX20-SM1310/1550
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/week
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
1.25G BiDi SFP 1310nm-TX/1550nm-RX
Data Rate :
1.25Gbps
Connector :
Single LC port
Wavelength :
1310nm/1550nm
Application :
Telecommunication, FTTH FTTB FTTO Network
Warranty :
3 years
Power supply :
+3.3V
Operating temperature :
,0~70℃
Description

1.25G BiDi SFP 1310nm-TX/1550nm-RX 20km DDM Transceiver Module for Cisco / H3C / HP

Description

The Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Features

  • Up to 1.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • 1310nm FP Transmitter and 1550 PIN Receiver
  • 1550 FP Transmitter and 1310 PIN Receiver
  • Single LC connector
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • Up to 3km point to point transmission
  • Single 3.3V power supply
  • Compliant with SFP MSA Specification
  • Average Output Power: -14~-8dBm
  • Receiver Sensitivity: -22dBm
  • Operating temperature range: 0°C to 70°C

Recommended Operating Environment

Parameter

Symbol

Minimum

Maximum

Units

Supply Voltage

Vcc

3.15

3.45

V

Ambient

operating Temperature

Top

0

+70

°C

Operating Relative Humidity

–

5

95

%

Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Transmitter Specification

Parameter Symbol Min Typical Max Unit
Data Input Swing Differential VIN 400 1800 mV
common mode voltage tolerance 15 mV
Input Differential Impedance ZIN 90 100 110 Ω
Transmit Disable Input High VD 2.0 Vcc V
Low VEN VEE VEE +0.8 V
Transmit Enable Output High VD 2.0 Vcc V
Low VEN VEE VEE +0.8 V
Receiver Specification
Parameter Symbol Min Typical Max Unit note
Centre Wavelength λc 1270 1580 nm
Receiver Sensitivity Sen -22 dBm 2
Receiver Overload Psat -3 dBm 2
LOS De-Assert LOSD -24 dBm
LOS Assert LOSA -35 dBm
LOS Hysteresis 1 4 dB
Receiver Reflectance Rrx -12 dB

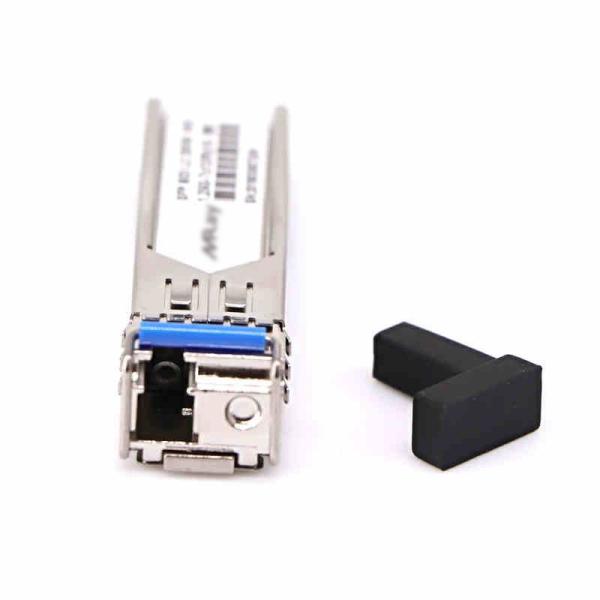

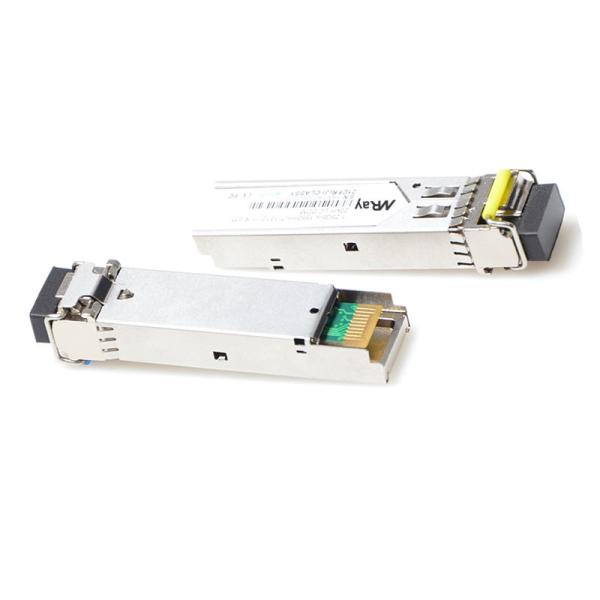

Product Show

Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM BidiHot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi

Dimension

Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi

Product Packing

Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi

Compatibility Test

Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi

Compatible Brands

Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi

Production Flow

Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi
Hot Pluggable Sfp Transceiver Single Mode 1310nm , Cisco 1g Sfp Module DDM Bidi

For more details, welcome to inquire us freely.
