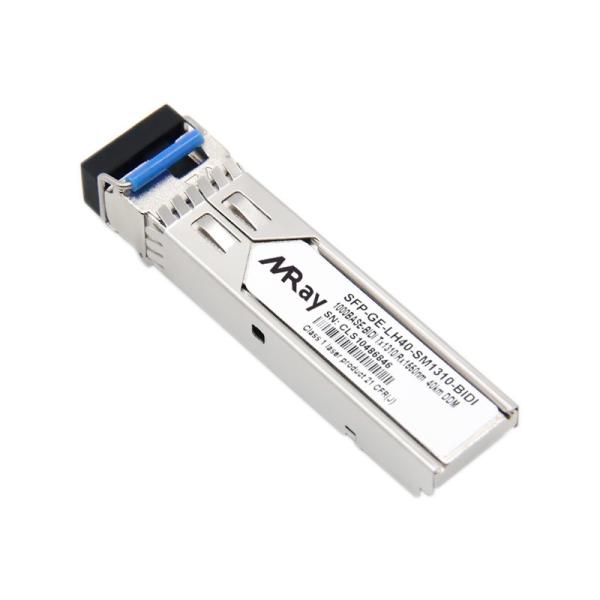

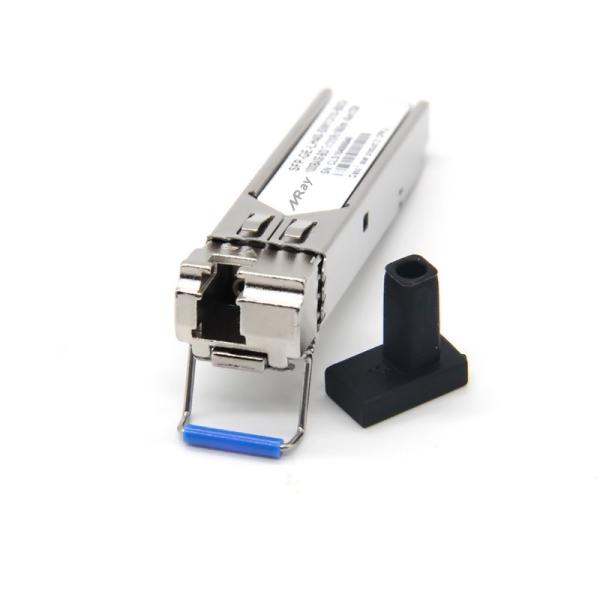

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
Specifications
Brand Name :
Mray
Model Number :
SFP-GE-BX40-SM1310/1550
Certification :
CE, FCC, RoHs, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
USD5-10/piece
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000pcs/day
Delivery Time :
1~2 days for samples
Packaging Details :
10pcs/plastic try, 500pcs per standard export carton
Product name :
1.25G 40km BIDI 1310nm 1490nm Wdm SFP Module
Rate :
1.25G
Wavelength :
1310nm/1550nm
Distance :
40km
Fiber type :
SMF
Application :
Gigabit Ethernet, FTTH FTTB FTTO Network,
Operating temperature :
0°C to 70°C
Compatible :
HP, Finisar, Juniper
Description

1000base 1.25G 40km BIDI 1310nm 1490nm Wdm SFP Module

Description

Miray’s SFP Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm DFB laser, up to 21dB link budge ensure this module 1000Base-EX Ethernet 40km application.

Features

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1550nm DFB laser and PIN photodetector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC/UPC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature range of 0°C to +70°C and -40°C to +85°C

Application

♦ Gigabit Ethernet

♦ Fiber Channel

♦ Switch to Switch interface

♦ Switched backplane applications

♦ Router/Server interface

♦ Other optical transmission systems

General Operating Characteristics

Parameter Symbol Min. Typ Max. Unit Note

Data Rate

 1250 Mb/s
Supply Voltage Vcc 3.13 3.3 3.47 V
Supply Current Icc5 220 mA
Operating Case Temp. Tc 0 70 °C
-10 80 °C
-40 85 °C

Optical Transmitter Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Average Output Power

Po

-1

3

dBm

Laser OMA output power

POMA

0

dBm

Disable Power

Poff

-40

dBm

Extinction Ratio

ER

6

dB

Output Centre Wavelength

λc

1530

1550

1565

nm

Side-Mode Suppression Ratio

SMSR

30

dB

Spectral Width (-20dB)

∆λ

1

nm

Optical Rise/Fall Time

(20%~80%)

tr/tf

0.03

ns

Transmitter Dispersion Penalty

TDP

3.0

dB

1

Generation Jitter (20KHZ-80MHZ)

GJ

0.3

UIp-p

Optical Return Loss

ORL

-12

dB

Optical Eye Mask

MM

Compliant to IEEE802.3ae

1

Data Dependent Input Jitter

DDJ

0.1

UI

Data Input Total Jitter

TJ

0.28

UI

Optical Receiver Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typical

Max

Unit

note

Centre Wavelength

λc

1270

1610

nm

Receiver Sensitivity

Sen

-15.8

dBm

2

Receiver Overload

Psat

0.5

dBm

2

LOS De-Assert

LOSD

-19

dBm

LOS Assert

LOSA

-28

dBm

LOS Hysteresis

0.5

4

dB

Receiver Reflectance

Rrx

-12

dB

Product List

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm

Dimension

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm

Product Packing

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm

Compatibility Test

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm

Compatible Brands

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm

Production Flow

1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm
1000base Fiber Optic Sfp Module , 1.25G 40km Sfp Module Single Mode Wdm

For more details, welcome to inquire us freely.
