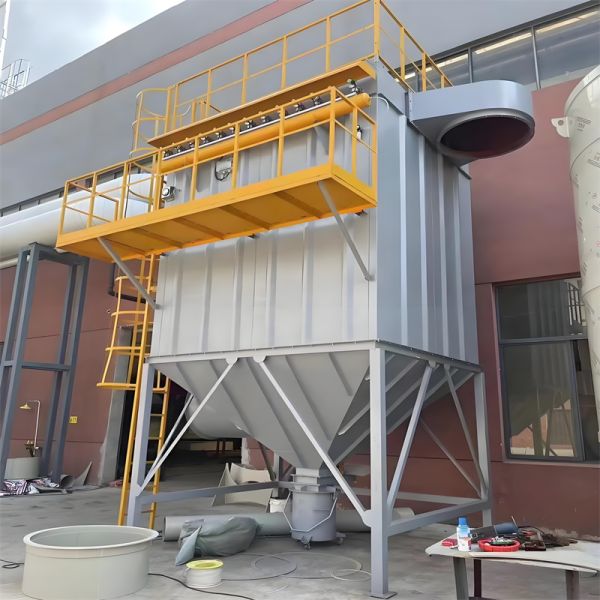

Large Centralized Baghouse Dust Collector for Factory Whole Workshop Dust Removal ATEX
Large Centralized Baghouse Dust Collector for Factory Whole Workshop Dust Removal ATEX
Large Centralized Baghouse Dust Collector for Factory Whole Workshop Dust Removal ATEX
Large Centralized Baghouse Dust Collector for Factory Whole Workshop Dust Removal ATEX
Large Centralized Baghouse Dust Collector for Factory Whole Workshop Dust Removal ATEX
Large Centralized Baghouse Dust Collector for Factory Whole Workshop Dust Removal ATEX
Specifications
Brand Name :
QiaoDa
Model Number :
QDDM-600
Certification :
CE
Place of Origin :
HeBei China
MOQ :
1PC
Price :
negotiated price
Supply Ability :
100 units per month
Delivery Time :
10-30 word days
Packaging Details :
Consultation with customers
Motorpower :
5 HP to 30 HP
Filter Type :
Cartridge
Application :
Woodworking dust and debris collection
Feature :
High Efficiency,Large dust collection
Dust Collection Method :
Single Stage
Filter Bag Size :
132*2000mm
Maintenance :
Easy filter replacement and cleaning
Minimum Particle Size :
0.5Micron
Safetyfeatures :
Explosion venting and spark detection system
Filtration Efficiency :
99%
Color :
bule
Other Name :
Industrial Welding Dust Collector
Usage :
Industry Dust Collector
Maintenancefeatures :
Easy access doors for filter cleaning and replacement
Installationtype :
Floor-mounted or wall-mounted
Filter Speed :
1.0M/min
Power :
30KW-75KW
Description
In modern industrial production, dust pollution control is an important part of environmental protection
governance. Bag filters, with their high efficiency, stability and strong adaptability, have become one of the
core devices for industrial dust control.
Bag-type dust collectors belong to dry filtration dust removal equipment. Their core principle is to use fiber filter
bags to filter the dusty gas, trapping the dust on the surface of the filter bags, and then discharging the purified gas
through the filter bags. The specific process can be divided into the following steps:
Dusty gas enters the dust collector:
The dusty gas enters the dust collector through the air inlet and is evenly distributed by the air flow distribution device
(such as the deflector plate) to prevent the filter bags from being worn due to excessively high local wind speed.
2. Dust is intercepted by the filter bag
When gas passes through the filter bag, dust particles are retained on the outer surface of the filter bag due to inertial
collision, interception, diffusion, electrostatic adsorption and other effects, forming a "dust layer" (also known as "filter cake").
As the dust layer thickens, the filtration efficiency increases, but the resistance also rises accordingly.
3. Ash cleaning process:
When the resistance of the filter bag reaches the set value (usually 1000 to 1500 Pa), the dust cleaning system is activated.
The dust on the surface of the filter bag is removed through methods such as pulse jet blowing, mechanical vibration or
reverse blowing, restoring its filtration capacity.
4. Purified gas emission
The purified gas passes through the inner cavity of the filter bag and is discharged from the clean gas chamber, ultimately
meeting the emission standards.
Technical Specifications
Type QDMC200 QDMC300 QDMC500 QDMC600 QDMC800 QDMC900 QDMC1000 QDMC1500
Filtration area (m²) 200 300 500 600 800 900 1000 1500
Quantity of filter bags (Pic) 200 300 500 600 800 900 1000 1500
Filtration air velocity (L/m².s) 20-40 20-40 20-40 20-40 20-40 20-40 20-40 20-40
Processing air volume (m³/h) 1300-2600 1950-3900 2600-5200 3240-6480 3900-7800 4550-9100 5200-10500 6500-13000
Ash cleaning device - Quantity of pulse valves 4 6 8 10 12 14 16 20
Gas consumption (m³) 0.07-0.30 0.11-0.40 0.15-0.50 0.18-0.60 0.22-0.60 0.25-0.90 0.29-0.90 0.37-0.90
Compressed air pressure (keg/cm²) 5-7
