Customized dust removal equipment for factories: Large electric furnace pulse bag dust collector
Customized dust removal equipment for factories: Large electric furnace pulse bag dust collector
Specifications
Brand Name :
HeBeiQiaoDa
Model Number :
LMC-1200
Certification :
YES
Place of Origin :
China HeBei
MOQ :
1
Price :
$3,000 - $100,000
Payment Terms :
L/C, ,T/T, Western Union, MoneyGram
Supply Ability :
5 to 20 units per month
Delivery Time :
10-30 day of work
Packaging Details :
Consultation with customers
Medium :
dry dust
After Warranty Service :
Video technical support, Spare parts
Weight :
Customized
Maintenancerequirement :
Periodic Bag Replacement and Cleaning
Emission :
<50 mg/ M3
Showroom Location :
None
Type :
Dust Collection System
Applications :
Industrial Dust Collection, Air Pollution Control
Resistance :
< 1000 pa
Surface Treatment :
Singed, Calendered, Heat Set
Airflow :
1000-100000CFM
Performance :
Easy cleaning
Seam Type :
Sewn or Welded
Shape :
Round
Micron Rating :
99.99%
Description
Customized Dust Removal Equipment for Factories: Large Electric Furnace Pulse Bag Dust Collector
The dust concentration produced by waste aluminum smelting furnaces is exceptionally high, with flue gas dust content reaching up to tens of g/m³. This dust collector features a lower filtration velocity (typically controlled at 0.8-1.0 m/min, significantly lower than the 1.2-1.5 m/min of conventional bag filters), preventing high-concentration dust from instantly clogging filter bags. It is equipped with a large-capacity ash hopper and a powerful ash cleaning system that efficiently stores and manages dust accumulation.
Key Features
  • High-pressure air bags and offline ash cleaning mode for efficient aluminum powder layer removal
  • Maintains stable dust removal efficiency under demanding conditions
  • Large-capacity ash hopper for extended operation between maintenance cycles
  • Optimized filtration velocity for high-concentration dust applications
Technical Specifications
Parameter/Model PPC32-3 PPC32-4 PPC32-5 PPC32-6 PPC64-4 PPC64-5 PPC64-6 PPC64-7 PPC64-8
Treated air volume (m³/h) 6900 8030 11150 13390 17800 22300 26700 31200 35700
Filtration velocity (m/min) 1.2-2.0 (Select different net filtration wind speed according to different dust points)
Total filtration area (m²) 93 124 155 186 248 310 372 434 496
Net filtration area (m²) 62 93 124 155 186 248 310 372 434
Number of dust collector chambers (PC) 2 4 5 6 4 5 6 7 8
Total filter bags (PCS) 96 128 160 192 256 320 384 448 512
Dust collector resistance (Pa) 1470-1770
Dust concentration of imported gas (g/m³) < 200 < 1000
Outlet gas dust concentration (mg/m³) < 30
Dust collector gas under negative pressure (Pa) 5000
Soot cleaning compressed air stress (Pa) (5-7)X1000
Air consumption (m³/min) 0.27 0.37 0.46 0.55 1.2 1.5 1.8 2.1 2.4
Impulse valve quantity (PCS) 3 4 5 6 4 5 6 7 8
Impulse valve size (inches) 1.5 2.5
Lift valve quantity (PCS) 3 4 5 6 4 5 6 7 8
Lift valve specification (mm) Lift valve diameter Ø460 cylinder diameter Ø63 Lift valve diameter Ø595 Cylinder diameter Ø100
Rigid impeller feeder Feed hole 300X300mm high 400m Speed 30.31r/min deceleration motor Power 1.1KW output 24m³/h
Screw conveyor specification Diameter Ø300 Output 30m³/h (filling rate Ø=0.7)
Gear motor Model XWD2.2--5--1/43. Power 2.2KW
Ash cleaning program controller The input and output voltage are 220V, the controller is supplied by the manufacturer, see the controller manual for details
Filter bag specifications and materials Diameter X length Ø130X2450mm, polyester needle felt weight 500g/m³, operating temperature 120 degrees (suitable filtration materials can be selected according to the actual mining temperature and flue gas properties)
Area of insulation layer (m²) 26.5 34 41 48.5 70 94 118 142 166
Total equipment weight (kg) (Approximate value, excluding insulation) 2400 3400 4400 5400 6900 8300 9700 11100 1250
Note: All specifications are approximate and subject to change based on specific application requirements.

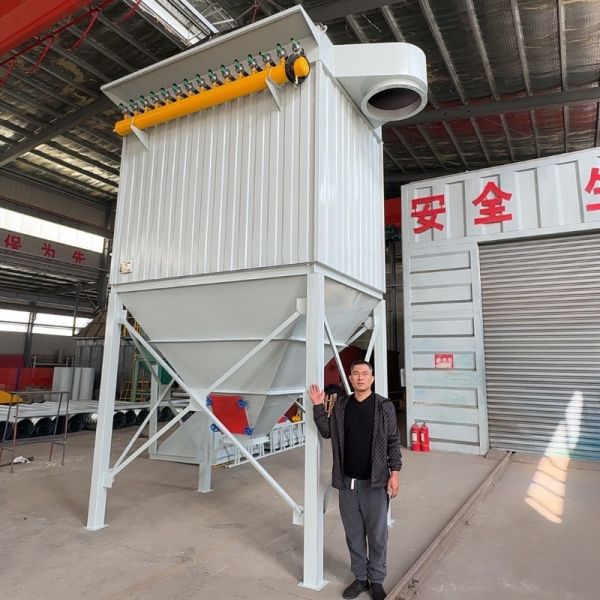

Product Image
