Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Medical Suture Diameter Tester for Surgical Thread Measurement
Specifications
Presser Foot & Plate Flatness :
≤ ±0.005 mm
Presser Foot Diameter :
12.7 ± 0.02 mm
Price :
Negotiable
Measurement Error :
≤ ±1‰
Brand Name :
HAIDA
Supply Ability :
300 Sets per Month Haida
Nominal Size Range :
12-0 to 10 medical sutures
Diameter Measurement Range :
0–5 mm
Presser Foot Load :
≤60 g, 210 g ± 3 g
Place of Origin :
Guangdong, China (Mainland)
Certification :
ISO,CE,
Reference Plate Diameter :
50 mm
Delivery Time :
20 days after order confirmed
Power Supply :
AC 90V-240V / 50Hz
Overall Dimensions :
320 × 1200 × 280 (mm)
MOQ :
1 Set
Presser Foot & Plate Parallelism :
≤ 0.5%
Model Number :
8041-HD
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
Resolution :
0.001 mm
Data Saving :
Onboard dot matrix printer / USB export to computer
Description
Medical Suture Diameter Tester
Product Overview

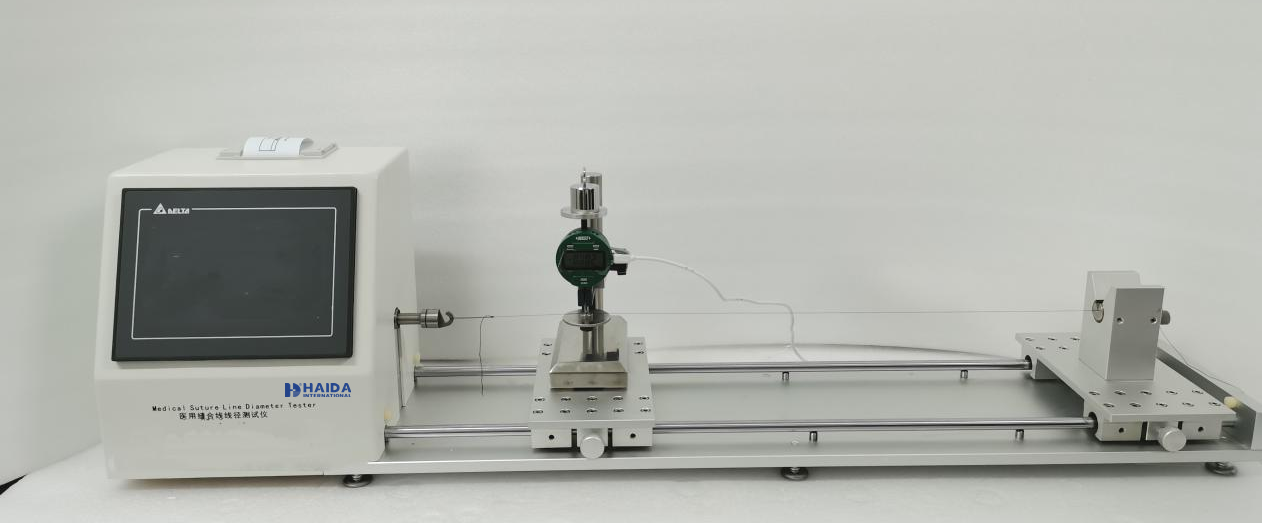

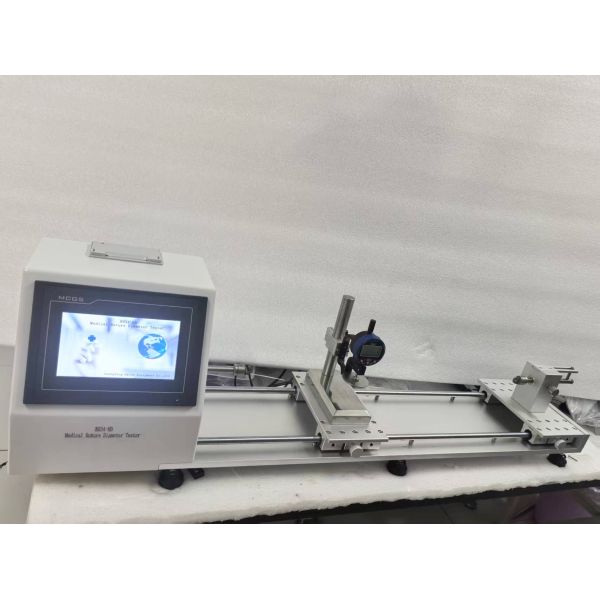

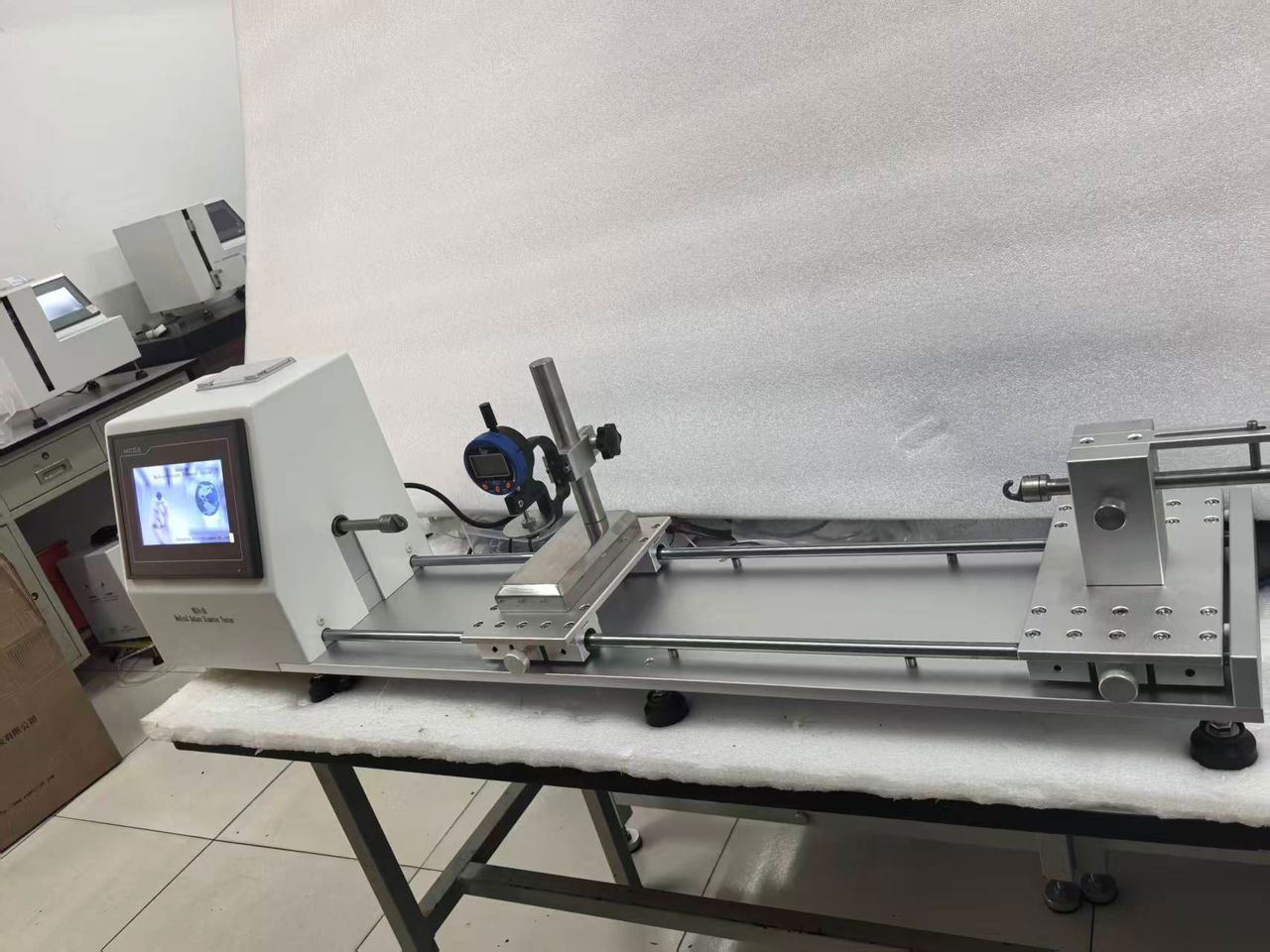

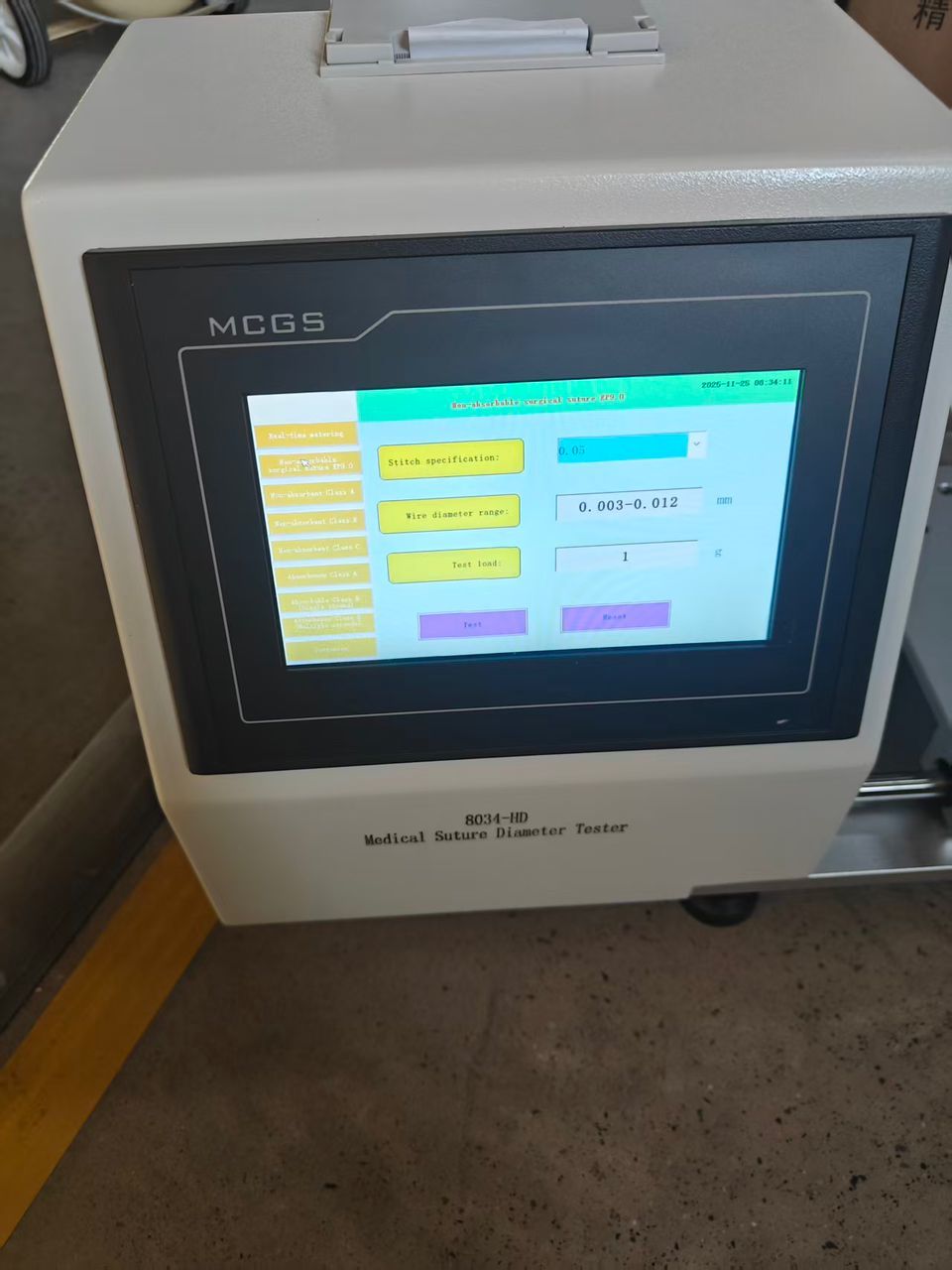

The Medical Suture Diameter Tester is a precision instrument designed for accurate diameter measurement of medical sutures. Equipped with advanced features including a 7-inch K600+ core/dot matrix 65-color touchscreen display at 800×480 resolution and PLC control system for dynamic loading force value display.

  • Multi-language operable interface: Chinese/English/Chinese-English switchable
  • Digital closed-loop control with AD acquisition speed of 500KHz
  • Internal resolution of 500,000 counts with high-precision clock chip
  • Power-off storage and overload alarm with automatic shutdown protection
  • Weight loading for tension with automatic diameter data recording
  • Built-in printer for test result output and data reports
Design Standards

Manufactured in accordance with the clauses related to diameter testing in standards YY1116-2020 "Absorbable Surgical Suture" and YY0167-2020 "Non-Absorbable Surgical Suture".

Medical Suture Diameter Tester for Surgical Thread Measurement
Technical Parameters
Parameter Specification
Nominal Size Range 12-0 to 10 medical sutures
Diameter Measurement Range 0-5 mm
Measurement Error ≤ ±1‰
Resolution 0.001 mm
Presser Foot Diameter 12.7 ± 0.02 mm
Reference Plate Diameter 50 mm
Presser Foot & Plate Flatness ≤ ±0.005 mm
Presser Foot & Plate Parallelism ≤ 0.5%
Loading Weights Range 0-2 Kg
Weight Accuracy ±0.1 g
Presser Foot Load ≤60 g, 210 g ± 3 g
Print Method Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation.
Shipping List Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights.
Power Supply AC 90V-240V / 50Hz
Data Saving Onboard dot matrix printer / USB export to computer
Net Weight 38 kg
Overall Dimensions 320 × 1200 × 280 (mm)
