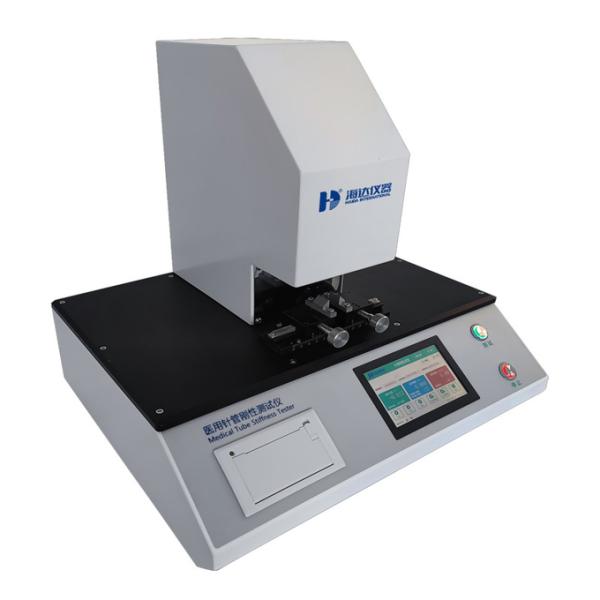

Adjustable Loading Speed Medical Tube Stiffness Tester
Adjustable Loading Speed Medical Tube Stiffness Tester
Specifications
Brand Name :
HAIDA
Model Number :
8030-HD
Certification :
ISO,CE,
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month Haida
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Tube Wall :
Normal wall, thin wall, ultra-thin wall
Specification of needle tube :
0.1～4.0mm
Set load :
1.0～100N Accuracy: ±0.01N
Loading speed :
1mm/min(0.1～200mm/min adjustable)
Span range :
5～50mm Accuracy: ±0.01mm
Deflection test :
0～10mm Accuracy: ±0.001mm
Controller :
LCD Controller Type
Dimension(W*D*H) :
460*380*450mm
Power Supply :
AC 220V, 50Hz
Description

Medical Tube Stiffness Tester


Description:

Medical Tube Stiffness Tester is suitable for the determination of stiffness of common syringe needles, prefilled syringe needles, infusion needles, etc.

It is widely used in medical product manufacturers, quality inspection institutes, third-party testing agencies, colleges and universities, scientific research institutes, etc.

The machine adopts a high-rigidity loading structure to ensure the accuracy of deflection testing. The span support blocks are tightly matched, which is far superior to the accuracy of clearance-matched fixtures.


Adjustable Loading Speed Medical Tube Stiffness Tester


Technical Parameters

Model 8030-HD
Tube Wall Normal wall, thin wall, ultra-thin wall
Specification of needle tube 0.1～4.0mm
Set load 1.0～100N Accuracy: ±0.01N
Loading speed 1mm/min(0.1～200mm/min adjustable)
Span range 5～50mm Accuracy: ±0.01mm
Deflection test 0～10mm Accuracy: ±0.001mm
Dimension(W*D*H) 460*380*450mm
Controller LCD Controller Type
Power AC220V/50Hz
Weight 28kg

ABOUT HAIDA

Adjustable Loading Speed Medical Tube Stiffness Tester

Adjustable Loading Speed Medical Tube Stiffness Tester

Adjustable Loading Speed Medical Tube Stiffness Tester

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
