Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Specifications
Delivery Time :
20 days after order confirmed
Measurement Range :
0 ~ 300 N
Force Measurement Mechanism :
Built-in
Printer :
Built-in dot matrix printer
Supply Ability :
300 Sets per Month Haida
Model Number :
8042-HD
Speed Setting :
Configurable via software
Place of Origin :
Guangdong, China (Mainland)
Test Speed :
1 mm/min ~ 500 mm/min
Programmable Controller :
PLC + ARM
Testing Standards :
YY1116-2020 Absorbable Surgical Suture
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Resolution :
0.0001 N
Brand Name :
HAIDA
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,escrow
MOQ :
1 Set
Certification :
ISO,CE,
Error :
≤ ±0.5% of reading
Price :
Negotiable
Test Range :
All specifications (Manually enterable)
Operating Interface :
Simplified Chinese / English
Description

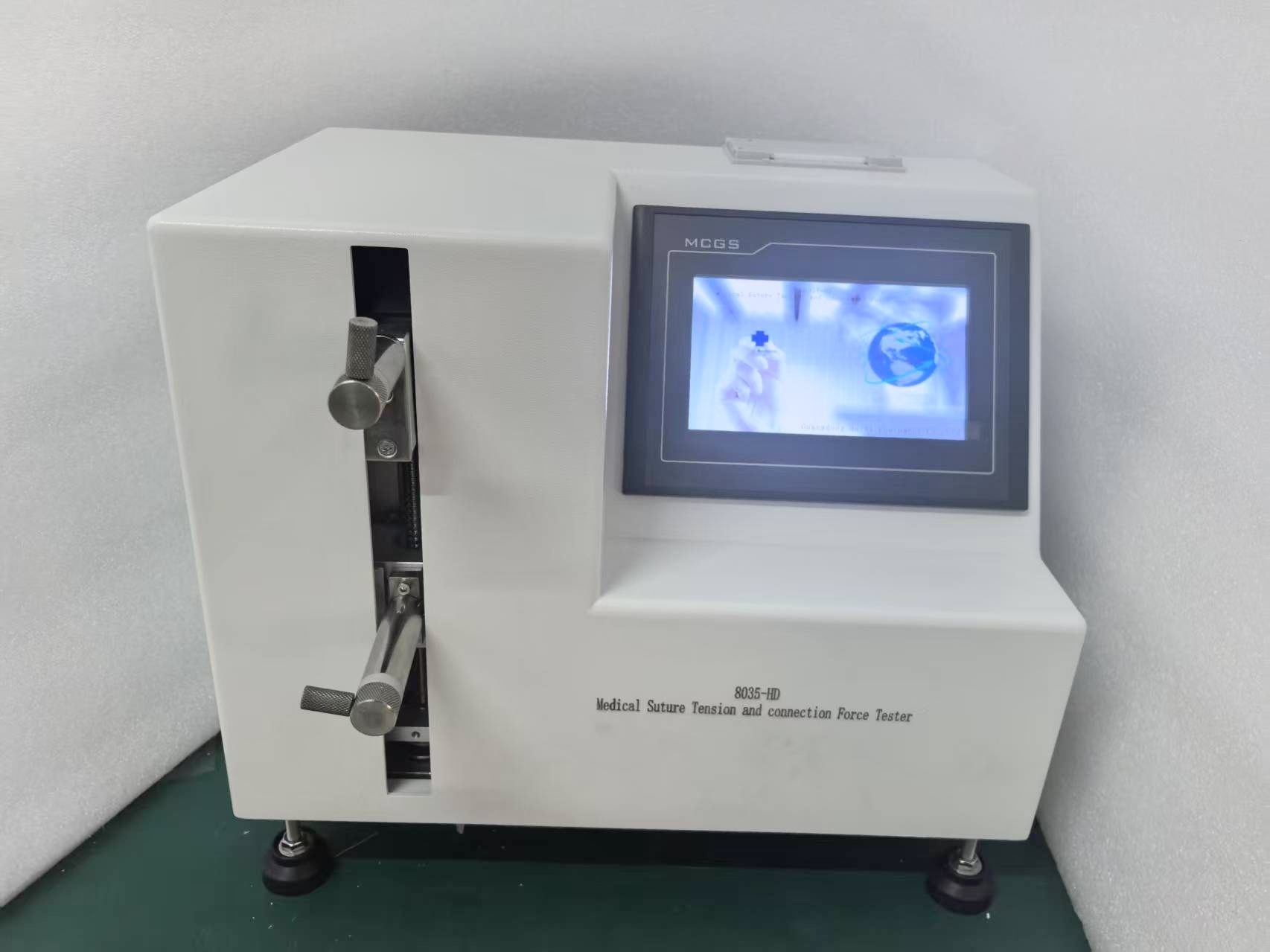

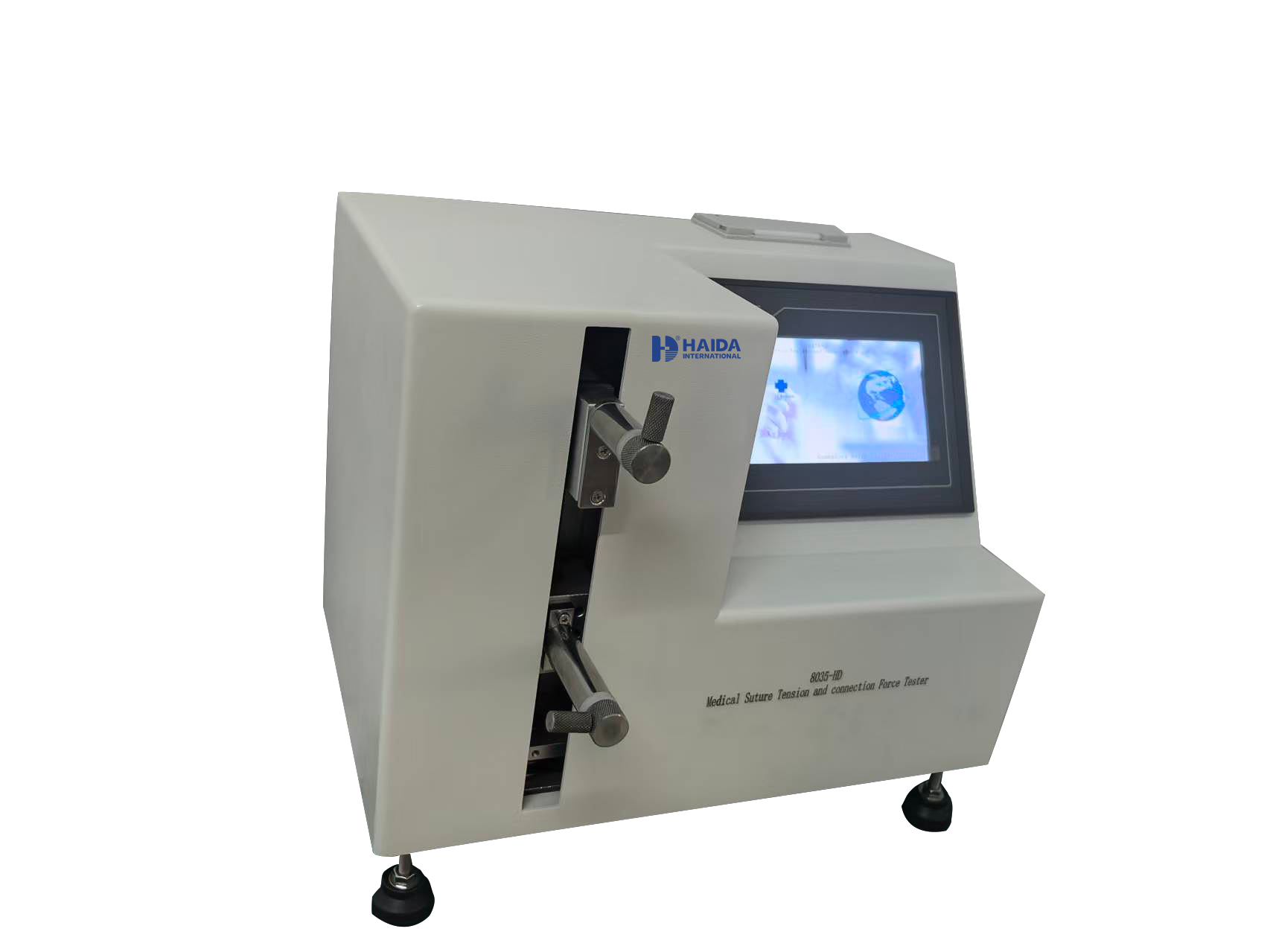

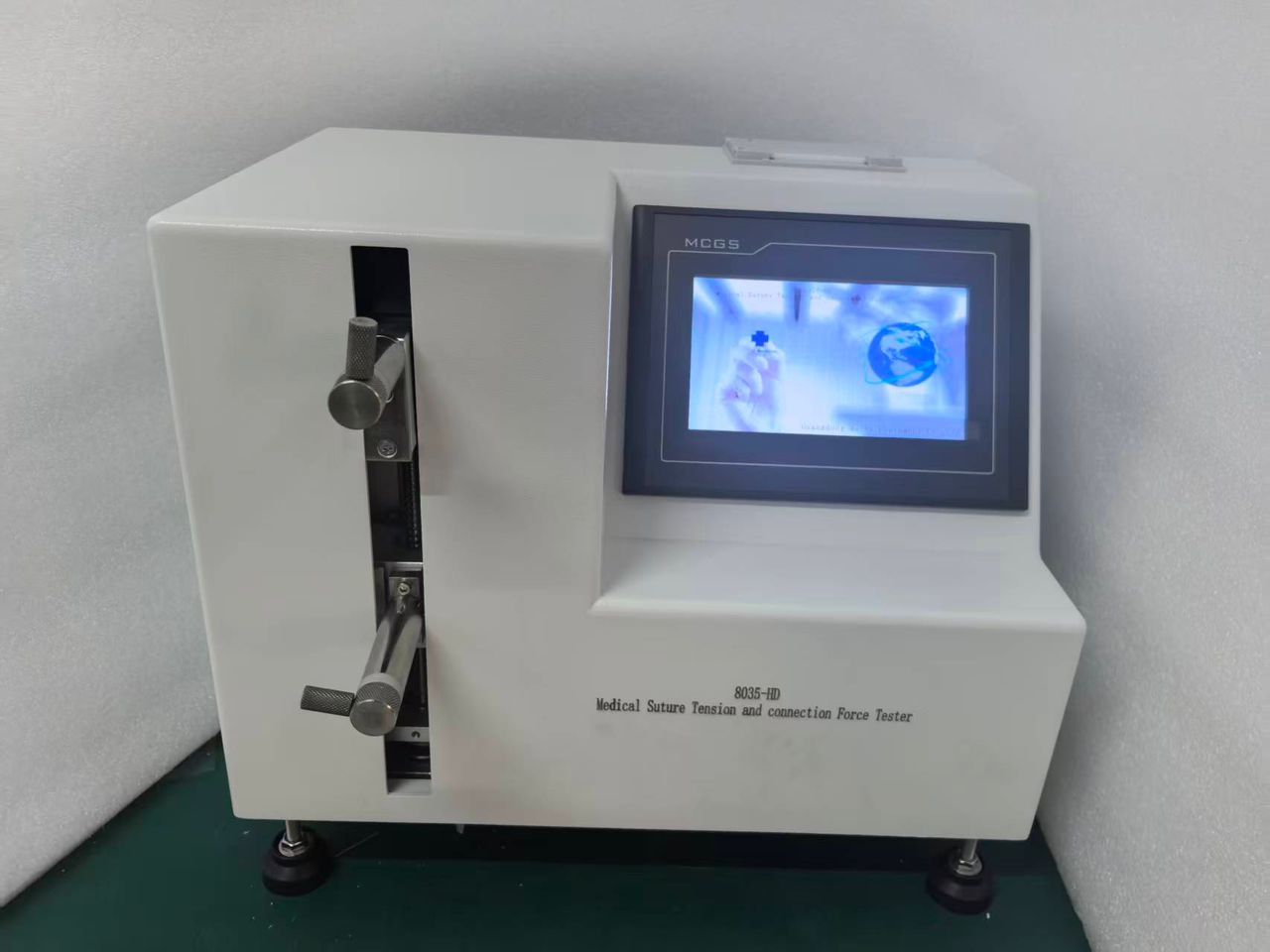

Medical Suture Tension and Connection Force Tester
The Medical Suture Tension and Connection Force Tester is designed to determine the physical properties of tensile strength and needle thread connection strength of medical sutures. This instrument serves as an essential tool for identifying and verifying the quality of medical sutures.
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Technical Specifications
Parameter Specification
Nominal Size Range 12-0 to 10 medical sutures
Diameter Measurement Range 0-5 mm
Measurement Error ≤ ±1‰
Resolution 0.001 mm
Presser Foot Diameter 12.7 ± 0.02 mm
Reference Plate Diameter 50 mm
Presser Foot & Plate Flatness ≤ ±0.005 mm
Presser Foot & Plate Parallelism ≤ 0.5%
Loading Weights Range 0-2 Kg
Weight Accuracy ±0.1 g
Presser Foot Load ≤60 g, 210 g ± 3 g
Print Method Can print 3-point (1/4, 1/2, 3/4 positions) measurement data and average value; Can print the average of 10 tests, their overall average, and deviation.
Shipping List Main unit x1, Certificate of Conformity x1, Matching fixtures, Operation manual x1, Printer paper x1 roll, Matching hook weights.
Power Supply AC 90V-240V / 50Hz
Data Saving Onboard dot matrix printer / USB export to computer
Net Weight 38 kg
Overall Dimensions 320 × 1200 × 280 (mm)
About HAIDA
Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer Medical Suture Tester with 0 ~ 300 N Measurement Range YY1116-2020 Testing Standards and Built-in Dot Matrix Printer
Why Choose Us?
  • Design & Production: Solution consultation for each order. We recommend the most cost-effective machines and research & develop suitable models for special requirements.
  • Shipping & Delivery: One-stop service including production, delivery to your door, installation & training, and technical support.
  • Warranty: 1-year warranty with lifetime technology support.
  • After-Sale Service: React within 2 hours with video inspection and on-site service options.
Frequently Asked Questions
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we offer technical support and replacement parts. If necessary, our engineers may visit your location for comprehensive service.
What is the order process?
Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing and debugging → Packing → Document preparation → Delivery arrangement → Shipping → Customer receiving → After-sales service.
Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you and your team to visit our factory. We will help arrange hotel accommodations and provide airport pickup service.
Do you accept customization service?
Yes, we offer both standard machines and customized solutions according to your specific requirements. Please share your needs with us, and we will do our best to meet them.
