Portable Inverter Box LS-IB1200/LS-IB2500 12–150V MPPT Voltage Range
Portable Inverter Box LS-IB1200/LS-IB2500 12–150V MPPT Voltage Range
Specifications
Supply Ability :
10,000 Pieces
Max Input Current :
25A
Delivery Time :
5-30 workingdays
Payment Terms :
T/T
Start-up Voltage :
12.4V
Brand Name :
SunPhoton
MOQ :
RFQ on MOQ
Place of Origin :
China
MPPT Voltage Range :
12–150V
Max Input Voltage :
150V
Price :
RFQ on MOQ
Description

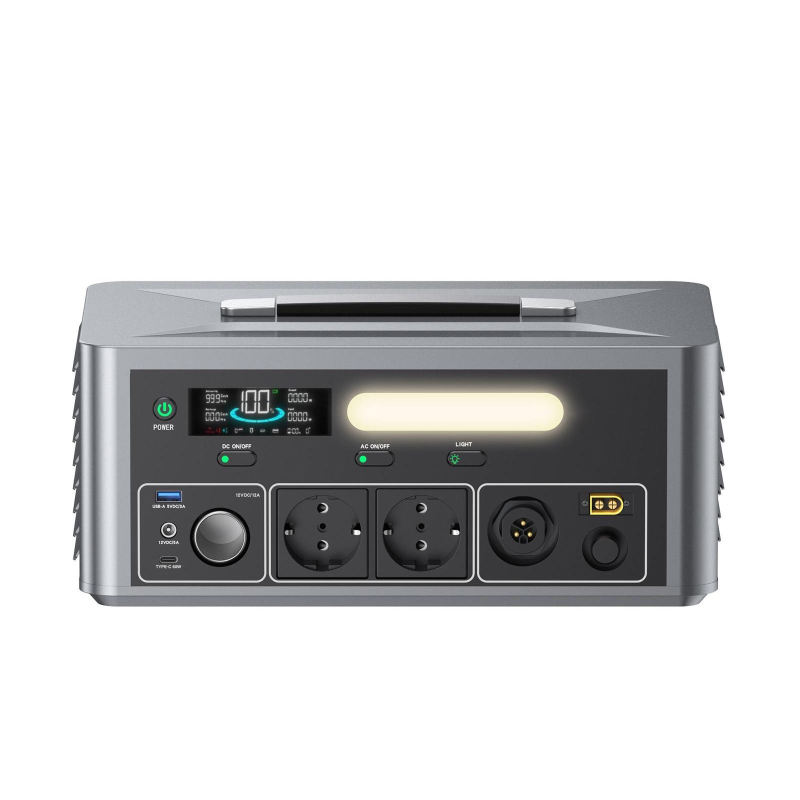

Portable Inverter Box LS-IB1200/LS-IB2500
IB series portable inverter boxes are available in 1200W and 2500W power models. x-boost algorithms are suitable for most appliances. With batteries, it can be used as an uninterruptible power supply (UPS). Lightweight and portable design, stackable connection method, DIY installation and use as needed. Portable inverter box has two charging methods for PV panels and grid. With batteries, it can be used as an emergency power supply, plug and play. Portable inverter box has various output interfaces such as USB, DC output and AC output, which can be widely used in outdoor camping, farm, garden, picnic and other scenes.
Key Features
  • Lightweight and portable design for easy transport and installation
  • High power output with 1200W / 2500W options
  • X-Boost technology for enhanced appliance compatibility
  • MPPT solar input up to 1200W for efficient charging
  • Dual charging modes: solar PV and grid input
  • UPS functionality with fast switching (<30ms / <15ms)
  • Multiple output interfaces: AC, DC, USB-A, USB-C, PD fast charging
  • Stackable design for flexible system expansion
  • Plug-and-play operation with external lithium battery support
  • High efficiency with advanced inverter and MPPT performance

Applications

  • Outdoor camping and travel power supply
  • Residential emergency backup power
  • Farm and agricultural equipment power support
  • Garden and outdoor tool power supply
  • Picnic and recreational activities
  • Small business and mobile workstation power
  • Off-grid and remote area applications
  • DIY energy storage system integration
Product Specification
Category Parameter LS-IB1200 LS-IB2500
PV Input Maximum Input Voltage 150V 150V
MPPT Voltage Range 12 ~ 150V 12 ~ 150V
Start-up Voltage 12.4V 12.4V
Maximum Input Current 25A 25A
Maximum Input Power 1200W 1200W
MPPT Channels 1 1
Grid Input Rated Voltage 230V 230V
Frequency 50/60Hz 50/60Hz
Charging Voltage 57.6V 57.6V
Charging Current 11.5A 40A
Input Voltage Range 180 ~ 270V 190 ~ 265V
Maximum Input Current 3.5A 12.7A
Maximum Charging Power 600W 2000W
Battery Parameters Battery Type 1 × 12–16 series lithium battery pack 1 × 12–16 series lithium battery pack
Rated Battery Voltage 51.2V 51.2V
Battery Voltage Range 40 ~ 57.6V 40 ~ 57.6V
Communication Interface RS485 RS485
AC Output Rated Output Voltage 230V 230V
Rated Output Current 5.2A 11.3A
Rated Output Power 1200W 2500W
Output Frequency 50Hz (Pure Sine Wave) 50Hz (Pure Sine Wave)
Peak Power 2400W 5000W
Overload Protection Power 1300W 2625W
Over-temperature Protection 85℃ 85℃
Battery Overvoltage Protection 60V 60V
Battery Undervoltage Protection 43.5V 43.5V
DC Output Lighter + DC5521 12V–10A shared, 12A overcurrent protection 12V–10A shared, 12A overcurrent protection
USB-A 18W Fast Charging 18W Fast Charging
USB-C (18W) 18W Fast Charging 18W Fast Charging
USB-C (60W) 60W PD Fast Charging 60W PD Fast Charging
Efficiency MPPT Efficiency 99.5% 99.5%
Grid Charging Efficiency 88% 93%
Inverter Efficiency 91% 92.5%
General Parameters Operating Temperature -20℃ ~ +45℃ -20℃ ~ +45℃
Storage Temperature -30℃ ~ +70℃ -30℃ ~ +70℃
Cooling Method Air Cooling Air Cooling
Protection Rating IP21 IP21
UPS Switching Time <30ms <15ms
Weight 4.5kg 6.5kg
Dimensions 320 × 210 × 150mm 320 × 210 × 150mm
Certifications CE, IEC62109-1-2 CE, IEC62109-1-2
Warranty 3 Years 3 Years
