800W Microinverter with Dual MPPT and IP67 Protection for Residential Solar Systems
800W Microinverter with Dual MPPT and IP67 Protection for Residential Solar Systems
Specifications
Operating Temperature :
-40°C ~ +65°C
Supply Ability :
10,000 Pieces
Price :
RFQ on MOQ
Brand Name :
SunPhoton
Place of Origin :
China
Delivery Time :
5-30 workingdays
MOQ :
RFQ on MOQ
Payment Terms :
T/T
Description

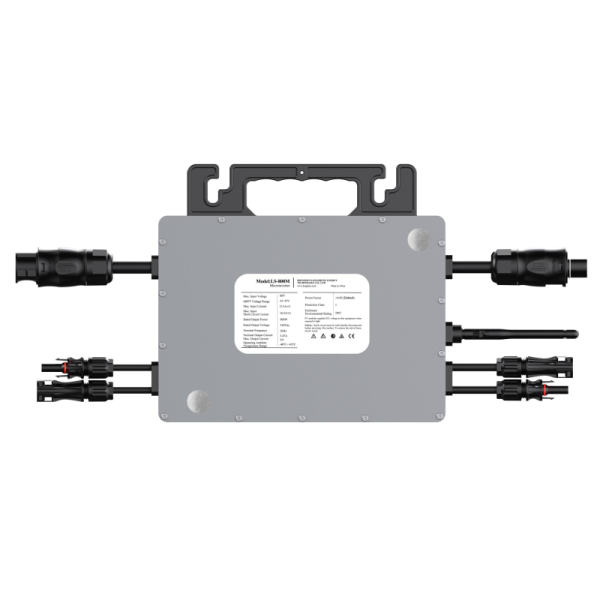

800W Microinverter LS-800Mi

Product Description

The LS-800Mi 800W Microinverter is a high-efficiency, module-level solar power conversion device designed for residential and small commercial photovoltaic systems. It provides safe low-voltage DC operation with a maximum 60V input, significantly reducing installation risks while maintaining high energy conversion efficiency.

With dual MPPT technology, IP67 protection, and intelligent WiFi monitoring, the LS-800Mi ensures stable performance, real-time data tracking, and reliable operation in harsh environmental conditions. Its compact and lightweight design makes it ideal for small-scale solar installations and distributed energy systems.

Product Specifications

DC Input

Item Specification

Recommended PV Module Power

280W – 550W

Start-up Voltage

20V

MPPT Voltage Range

25V – 55V

Maximum Input Voltage

60V

Maximum Input Current

13.5A × 2

Maximum Short Circuit Current

16.5A × 2

MPPT Channels

2

AC Output

Item Specification

Rated Output Power

800W

Rated Output Voltage

230V

Rated Output Current

3.47A

Frequency Range

50Hz ±5Hz

Peak Efficiency

96%

Static MPPT Efficiency

99.5%

Mechanical & Environmental

Item Specification

Operating Temperature

-40°C ~ +65°C

Dimensions

260 × 225 × 32 mm

Weight

2.9 kg

Protection Rating

IP67

Cooling Method

Natural convection (fanless)

Communication

WiFi

Warranty

10 Years

Product Features

  • Safe 60V Low-Voltage DC Design for Enhanced Safety

  • Dual MPPT Technology for Maximum Energy Harvesting

  • High Conversion Efficiency up to 96%

  • IP67 Waterproof and Dustproof Protection

  • Compact and Lightweight Design for Easy Installation

  • Full Metal Housing with Efficient Heat Dissipation

  • Smart WiFi Monitoring for Real-Time Energy Tracking

  • Instant Fault Detection and System Alerts

  • Wide Temperature Range (-40°C to +65°C)

  • Suitable for Residential and Small Business Use

Applications

  • Residential Rooftop Solar Systems

  • Small Commercial PV Installations

  • Balcony and Distributed Solar Systems

  • Smart Home Energy Systems

  • Small Office and Retail Energy Supply

  • Modular and Expandable Solar Projects

  • Complex Roof and Shaded Installations
