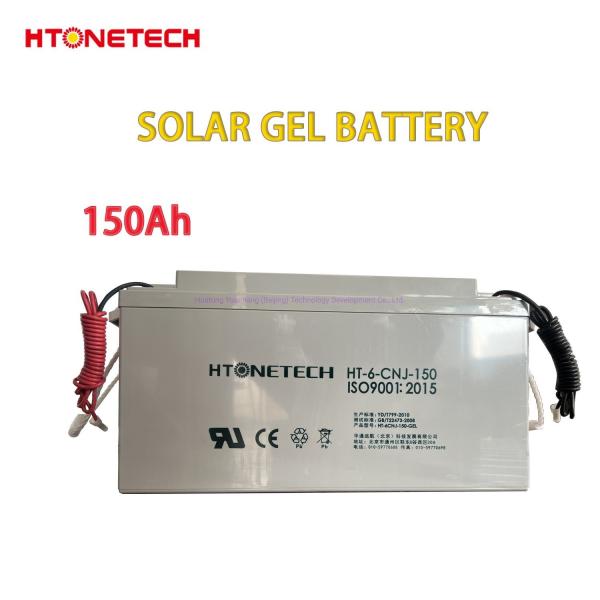

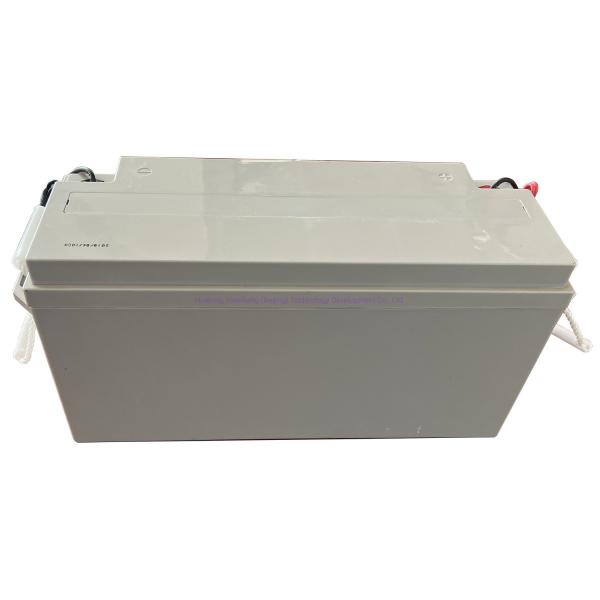

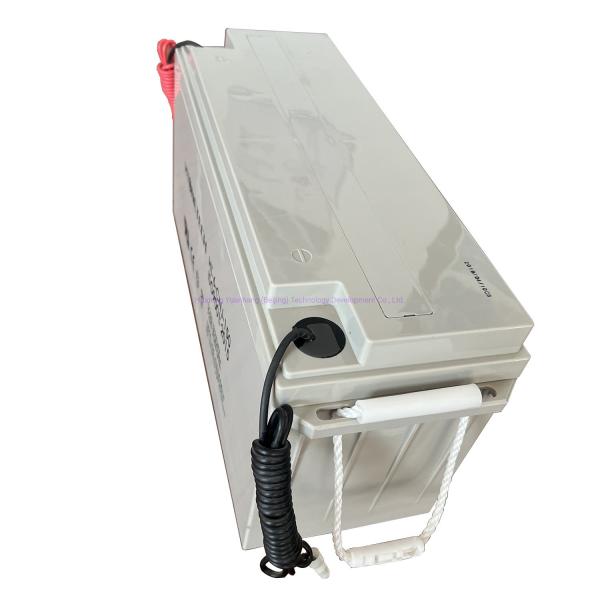

Gel Cell Solar Cell Energy Storage High Capacity 12V 150ah Photovoltaic off Grid Power Generation System
Product Description
A solar energy storage battery, also known as a solar battery or solar storage system, is a device that stores electricity generated from solar panels for later use. It enables the efficient utilization of solar energy by capturing and storing excess electricity during periods of high solar generation and releasing it when needed, such as during nighttime or when solar production is low.
Here are some key points about solar energy storage batteries:
- Energy storage: Solar batteries store the surplus electricity produced by solar panels. This stored energy can be used during times when the solar panels are not actively generating electricity, ensuring a continuous power supply and reducing reliance on the electrical grid.
- Maximizing self-consumption: Solar energy storage batteries enable homeowners and businesses to maximize self-consumption of solar energy. Instead of exporting excess electricity back to the grid, which may not provide favorable compensation, the stored energy can be used directly, increasing the proportion of solar energy consumed on-site.
- Backup power: One of the main advantages of solar energy storage batteries is their ability to provide backup power during grid outages. In the event of a power failure, the stored energy can be utilized to power critical appliances or systems, offering a reliable source of electricity when the grid is down.
- Time shifting and load management: Solar batteries allow for time shifting of electricity consumption. Excess solar energy generated during the day can be stored and used during periods of high energy demand or when electricity rates are higher, optimizing energy usage and reducing costs.
- Grid independence: By incorporating solar energy storage batteries, individuals and businesses can reduce their reliance on the electrical grid. This is particularly beneficial in areas with unreliable grid infrastructure or where grid electricity costs are high. Solar batteries offer a level of energy independence and resilience, especially when combined with solar panels.


12V | 80A | 25.5KG | 6.2mΩ | 20.0A | -35~60ºC | 329 | 172 | 214 | 236 | ABS |
100A | 28.6KG | 5.3mΩ | 25.0A | 329 | 172 | 214 | 236 |
150A | 42.2KG | 4.0mΩ | 37.5A | 483 | 170 | 240 | 240 |
200A | 58.3KG | 3.3mΩ | 50.0A | 522 | 240 | 219 | 244 |
250A | 69.3KG | 2.9mΩ | 62.5A | 520 | 269 | 220 | 245 |
2V | 100Ah | 5.5KG | 0.85mΩ | 25A | 170 | 76 | 214 | 223 |
200Ah | 13.3KG | 0.66mΩ | 50A | 171 | 106 | 330 | 342 |
250Ah | 16.6kg | 0.56mΩ | 62.5A | 171 | 151 | 330 | 342 |
300Ah | 18.4kg | 0.46mΩ | 75A | 171 | 151 | 330 | 342 |
400Ah | 23.6KG | 0.41mΩ | 100A | 196 | 171 | 330 | 342 |
600Ah | 35.2KG | 0.31mΩ | 150A | 285 | 171 | 330 | 342 |
800Ah | 48.2kg | 0.23mΩ | 200A | 383 | 171 | 330 | 342 |
1000Ah | 58.3kg | 0.21mΩ | 250A | 471 | 171 | 330 | 342 |
1500Ah | 84.9kg | 0.17mΩ | 375A | 318 | 341 | 341 | 351 |
2000Ah | 114.6kg | 0.14mΩ | 500A | 433 | 342 | 341 | 351 |
2500Ah | 160.8kg | 0.13mΩ | 625A | 629 | 346 | 341 | 351 |
3000Ah | 170.9kg | 0.11mΩ | 750A | 329 | 346 | 341 | 351 |
Rated Voltage | Rated Capacity | Approximate Weight | Internal Resistance | Maximum Charge Current | Ambient Temperature | Length | Width | Height | Total Height | Case |
