Specifications
Model NO. :
Lithium Battery
Size :
Large
Capacity :
400ah-1000ah
Battery Cell :
3.2V 100ah LiFePO4 Cell
Cycle Life :
4000-6000 Cycles
Energy :
5120wh
Nominal Voltage :
48/51.2V
Application :
Electric Power Systems/Solar Energy Storage System
Storage Type :
Lithium Ion, LiFePO4, LiFePO4(LFP)
Inverter Matched :
Deye, Goodwe, Growatt, Sofar, Gmde, etc
Shape :
Square
Material :
LiFePO4
Anode Material :
LFP
Controller Type :
MPPT
Keywords :
LiFePO4 Lithium Battery
Other Name :
Lithium Ion Battery
Product Name :
Solar Lithium Battery
Transport Package :
Standard Shipping Package or Customized
Specification :
Standard specification or customized
Trademark :
HTONETECH
Origin :
Beijing, China
Supply Ability :
500000 Pieces Per Month
Shipping Cost :
To be negotiated| Freight Cost Calculator
Type :
Li-ion Battery
Cathode Material :
NCM
Rechargeable :
Yes
Samples :
US$ 200/Piece 1 Piece(Min.Order) |
Description

Product Description

HTONETECH 48V 200AH Energy Storage Battery Suppliers 3.2V 50ah Prismatic Cell Solar Battery LiFePO4 Material China 12V Lithium Ion Battery
Product Description
48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System

LiFePO4 batteries are a type of lithium battery built from lithium iron phosphate.
For things like solar energy systems, RV, Golf Carts, Bass Boats, and Electric Motorcycles.

Advantages of Lifepo4 Battery:

1. Safety: LiFePO4 is the safest lithium-ion battery cathode material, not burning or explosion.
2. Environmental Protection: LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use
3. Easy installation: Our screw-in bolt ports allow for easy and secure connectivity. Plug and Play.
4. Long Cycle Life: Can be charged and discharged more than 2000 times @ 85% DOD, 5000 times @ 60% DOD
5. Light Weight: LiFePO4 battery is lighter and smaller than a Lead-acid battery/ Gel battery.
6. Protection: LiFePO4 batteries built in BMS it has overcharge, over-discharge, over temp, and short circuit protection.

Product Features

The SBS lithium energy storage battery uses a long working life LiFePO4 battery and high-performance BMS protects and manages the battery system, it has wider usage and longer life than traditional batteries.

- Energystorage system, control system, alarm system, power system, database
- Emergency lighting system, emergency power supply, UPS
- Telecommunication, communication, fire fighting system
- High power, friendly interface, free combination
- A+ battery cell, precise combination
- CAN/RS485/WIFI/4G/Blue tooth communication
- BMS customization supported
- Thick shell, well protection for inside cells

Product Parameters
Battery Type
LiFePO4(LFP)
LiFePO4(LFP)
Nominal Voltage(V)
51.2V
51.2V
Nominal Capacity(WH)
5427.2WH
10854.4WH
Usable Capacity(WH)
4884WH
9768.96WH
Design Life
10+ Years (25°C/77F)
10+ Years (25°C/77F)
PHYSICAL
Dimension(mm)
648*462*162
648*786*162
Weight(kg)
54
98
ELECTRICAL
Cycle Life
>6000. 25°C
>6000. 25°C
Discharge Voltage(V)
40 - 48
40 - 48
Charge Voltage(V)
56 - 58.4
56 - 58.4
Charge/Discharge Current(A)
50A (Recommended) 100A(Max )
Internal Resistance
≤30mΩ
BMS
Power Consumption
<2W (Work) < 100mW(Sleep)
Monitoring Parameters
System voltage, current, cell voltage,cell temperature, module temperature
SOC
Intelligent algorithm
Communication
CAN/RS-485/RS-232
OPERATION
Operating Temperature Range
-10ºC - 50 ºC
Transport or Storage Temperate Range
-20ºC - 45 ºC
Humidity
15% - 85% (No Condensing)
WARRANTY
Product Warranty
5 Years
Performance Warranty
10Years

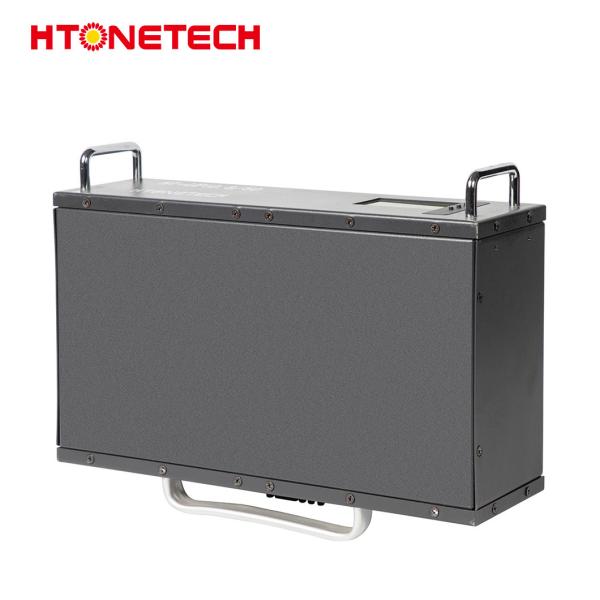

Detailed Photos

48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System

48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System48V 200AH Solar Energy Storage Battery Prismatic Solar Battery Storage System
FAQ

1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China

2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;

3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems

4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.

5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
