1 Inch Clear PVC Hose With Steel Wire Reinforced For Discharge Water Pipe
1 Inch Clear PVC Hose With Steel Wire Reinforced For Discharge Water Pipe
1 Inch Clear PVC Hose With Steel Wire Reinforced For Discharge Water Pipe
1 Inch Clear PVC Hose With Steel Wire Reinforced For Discharge Water Pipe
1 Inch Clear PVC Hose With Steel Wire Reinforced For Discharge Water Pipe
1 Inch Clear PVC Hose With Steel Wire Reinforced For Discharge Water Pipe
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000 pieces
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Name :
Clear PVC Steel Wire Hose
Color :
transparent, blue, green etc.
Material :
pvc, steel wire, fiber
weight :
0.12 - 23kg/m
working pressure :
2bar - 10bar
Packing :
woven plastic cloth wrapped
Description

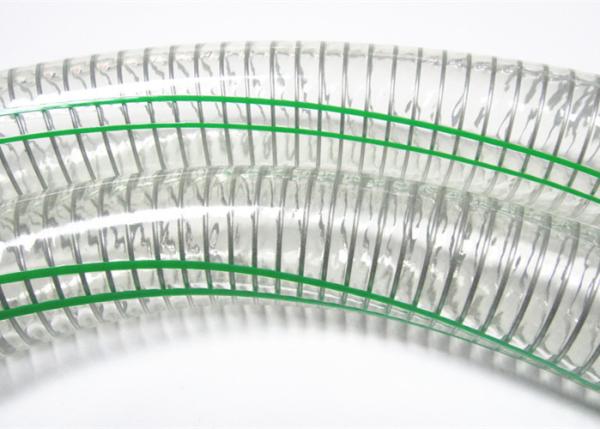

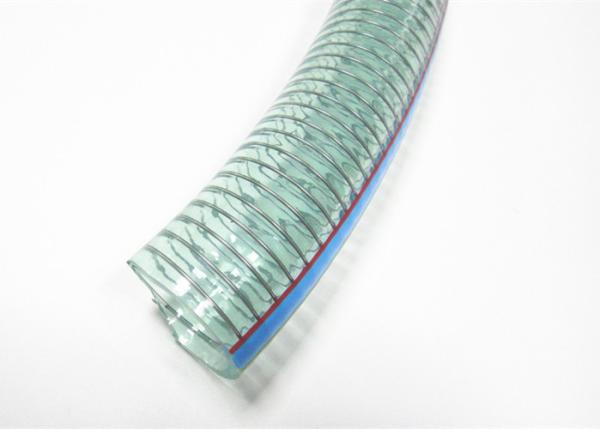

Clear PVC Hose with Steel Wire Reinforced Discharge Water Pipe

size 1/4''-10''
color clear, blue,yellow etc.
Length: 20m/30m/50m/100m or customized
weight 0.12 - 23kg/m
working pressure 2bar - 10bar
burst pressure 6bar - 30bar

By improving the formula and adding special materials, the hose has the performance of freeze resistance and low temperature resistance, and can be used normally at minus 10 degrees celsius, which meets the needs of people in the northern countries and special low temperature environment.

Advantages:

We can match the hose with fittings and clamps, or produce the fittings according to your requirements. When you receive the product, you can put it into use immediately.

It can remain good flexibility in -10℃, not hard, bending is not brittle.

Both sides have the same wall thickness, no deviation, smooth and transparent. We can also produce opaque steel wire hoses.

We use advanced equipment, employ professional and technical personnel specialized checks, the pipe wall has no impurities, no bubbles.

It meets the needs of new type pipes in mechanical petroleum, powder, chemical industry, agriculture, national defense industry, manufacturing, pumping and conveying industries.

Application Areas:

It is widely used in food and sanitation industry. It is an ideal pipe material for pumping and transporting water, oil and powder in industry, agriculture and engineering. It can be used for unloading oil at gas stations, transporting chemical raw materials, transporting water by high-pressure pumps, transporting high-pressure pipes for ships and raw materials in factories.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6 0.433 11 0.12 10 145 100 300
5/16 8 0.551 14 0.15 10 145 100 300
3/8 10 0.629 16 0.20 10 145 100 300
1/2 12 0.708 18 0.22 8 120 100 300
5/8 15 0.866 22 0.31 8 120 100 300
3/4 19 0.984 25 0.36 8 120 50 150
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
5 127 5.629 143 6.00 3 45 20 60
6 152 6.692 170 9.00 3 45 10 30
8 200 8.818 224 12.00 3 45 10 30
10 250 10.866 276 23.00 2 30 10 30
