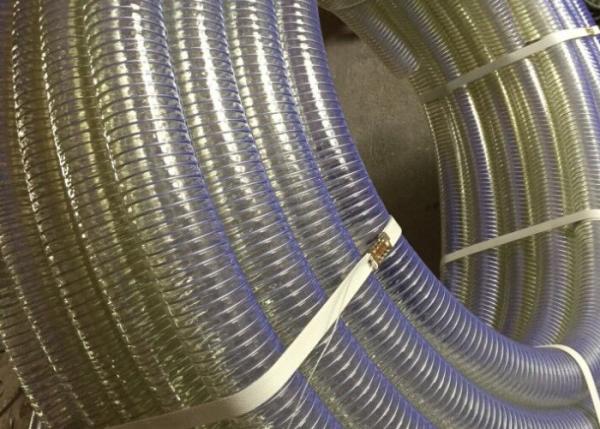

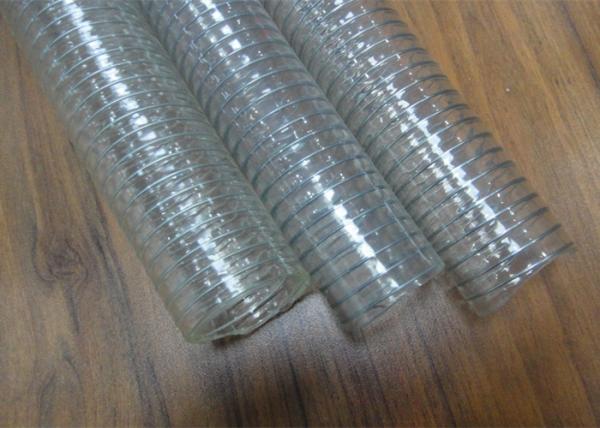

Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Non Toxic PVC Steel Wire Hose / Pipe / Tubing Candy Smell Resistant Abrasion
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China (Mainland)
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
name :
PVC steel wire hose
specification :
1/4inch to 10inch
standard :
SGS; ISO; REACH
Working pressure: :
2bar-10bar
colorful :
transparent, yellow, green, blue etc.
working temperature :
-5℃ - 65℃
Description

non-toxic pvc steel wire reinforced suction hose / pipe / tubing with candy smell

size 6mm-250mm ( 1/4''-10'' )
color clear, blue,yellow etc.
Length: 20m/30m/50m/100m or customized
quality grade food grade, no toxic grade
transporting medium water, oil, liquid, powder, granules etc.
features flexible, durable, non-toxic, anti-static

The pvc steel wire hose is widely used for drawing and conveying water, oil, other liquid and powder in the factory, agriculture, engineering, foodstuffs and sanitation lines.

Features

1. High strength reinforced by steel wire.

2. Flexible and adapt for multi-purpose.

3. Resistant to abrasion, high pressure, chemical and bad weather.

4. Long lasting service life.

5. The Diameter, Thickness, Length and Color can be cusd as per requirement.

6. High quality, low price, higher cost performance.

7. Good adaptability to hard weather condition and minus pressure, small bending radius, anti-abrasion.

8. This product has resolved the problem of continual rolling on the steel wire of the hose, which is much stronger and durable than normal steel wire reinforced pipe.

Usage:
High-weight and flexible. Solids, liquid and gaseous chemicals to be absorbed and transferred, air hose and air conditioning as a protective technique, wood shavings used in the transfer liquid is absorbed and Moreover, in areas with very high negative pressure suction hose and is used as a printer.

Packing
All hose is packed by 2 plies of PVC film, inner is transparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
1/4 6 0.433 11 0.12 10 145 100 300
5/16 8 0.551 14 0.15 10 145 100 300
3/8 10 0.629 16 0.20 10 145 100 300
1/2 12 0.708 18 0.22 8 120 100 300
5/8 15 0.866 22 0.31 8 120 100 300
3/4 19 0.984 25 0.36 8 120 50 150
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
5 127 5.629 143 6.00 3 45 20 60
6 152 6.692 170 9.00 3 45 10 30
8 200 8.818 224 12.00 3 45 10 30
10 250 10.866 276 23.00 2 30 10 30
