High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed
High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed
High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed
High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed
High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed
High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed
Specifications
Brand Name :
ET
Model Number :
1/4"-10"
Certification :
ISO9001:2008,SGS,ROHS
Place of Origin :
Shandong, China
MOQ :
1000m
Price :
$0.1-$5 / meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6000tons / year
Delivery Time :
10-15 work days
Packaging Details :
woven plastic cloth wrapped
Name :
pvc clear wire reinforced hose
Material :
pvc, steel wire, fiber
working temperature :
-5℃ - 65℃
Usage :
industry, agriculture, chemical
length :
20m/30m/40m/50m
Packing :
woven plastic cloth wrapped
Description

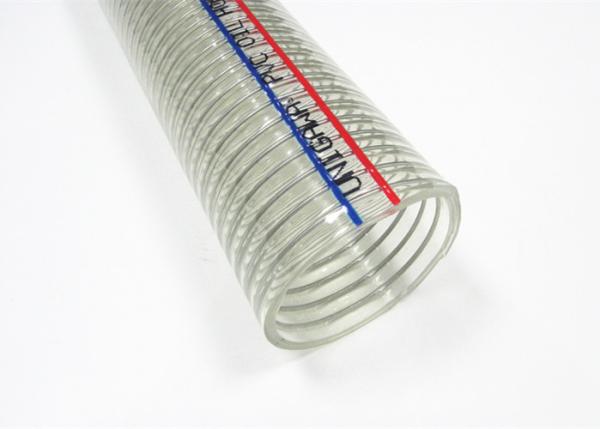

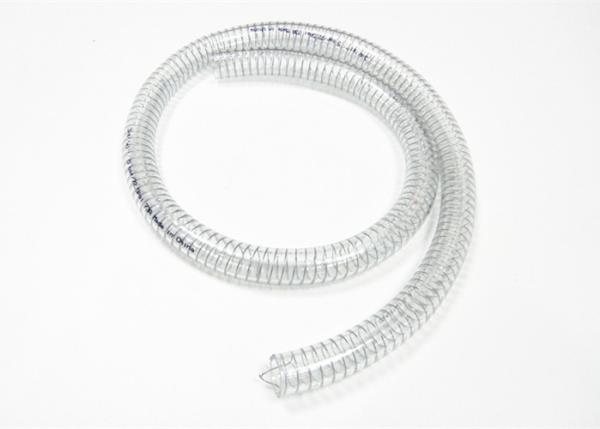

High Pressure Food Grade PVC Steel Wire Hose Transparent Flexible Typed

The tube is made of super polyvinyl chloride raw material, thickening fiber thread. Because of the unique formula and corresponding reinforcing material, the hose has properties, such as soft, non-toxic and tasteless, wear-resistant and withstand high pressure.

Advantage:

Hoses can work normally in low temperature environment without rigid and brittle cracks.

It uses green eco-friendly materials which will not pollute the environment and not cause damage to the human body.

The inner wall is smooth, there is no obstacle to transport liquid and powder, no residue, and it is also very easy to clean.

The tube wall is thickened, so that it is very wear-resistant, you don’t worry when you use it because it will not break.

Applications:

A flexible, heavy duty food grade PVC suction hose, designed for the food and beverage dispensing industry. For use in abattoirs, canneries etc...

Suction & delivery of foodstuffs, drinkable water, drinks up to 28% alcohol contents

Specification:

Inner Diameter Outer Diameter Weight W.P.(at 23℃) Std Length
inch mm inch mm kg/m bar psi m ft
3/4 19 0.984 25 0.36 8 120 50 150
1 25 1.299 33 0.54 8 120 50 150
1-1/4 32 1.614 41 0.78 7 100 40 120
1-1/2 38 1.889 48 1.05 6 90 40 120
1-3/4 45 2.204 56 1.30 6 90 40 120
1-7/8 48 2.322 59 1.40 6 90 40 120
2 50 2.441 62 1.60 5 75 40 120
2-1/4 58 2.755 70 2.00 5 75 30 90
2-1/2 63 3.149 80 2.80 5 75 30 90
3 75 3.582 91 3.50 4 60 30 90
3-1/2 90 4.251 108 4.50 4 60 20 60
4 100 4.645 118 4.80 3 45 20 60
