Specifications
Brand Name :
LB
Model Number :
LB-1180
Certification :
CE,ISO9001
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
USD,EUR
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
EXTRUDER TYPE :
55/110 CONICAL TWIN SCREW EXTRUDER
PROFILE'S SIZE :
1180MM
MOTOR POWER :
22KW
RAW MATERIAL :
PVC POWDER & ADDITIVES
HAUL-OFFS :
TWO INDEPENDENT TRACKS
CALIBRATION TABLE :
EIGHT MTERS LONG
PACKING METHOD :
WOODEN BOX AND FILM PACKAGE
PROFILE SIZE :
ACCORDING TO CUSTOMERS' DRAWING
DELIVERY TIME :
WITHIN 90 DAYS
Description
55/110 High Precision PVC Plastic Profile Extrusion Machine
This high-precision PVC plastic profile extrusion machine is engineered for producing various PVC profiles including window and door profiles, ceiling panels, and trunking systems with exceptional accuracy and efficiency.
Production Capabilities

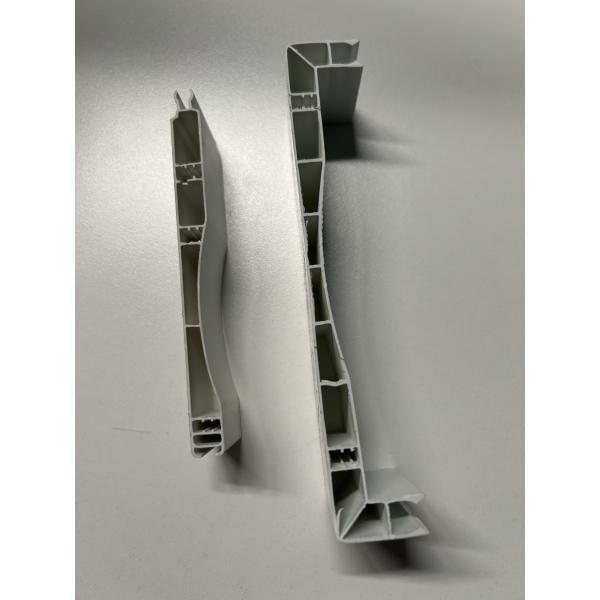

The PVC profile production line is designed for manufacturing diverse PVC profiles such as window and door profiles, ceiling panels, and trunking systems. Custom solutions and molds are developed based on specific profile drawings.
Processing Workflow
  • PVC powder + additive mixing
  • Material feeding system
  • Twin screw extruder processing
  • Mold and calibrator shaping
  • Vacuum forming table
  • Haul-off machine
  • Cutting machine
  • Discharge rack
This extrusion line features a conical twin screw extruder compatible with both PVC powder and granules. The integrated degassing system ensures superior material plasticization, while high-speed molds significantly enhance productivity.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Key Components

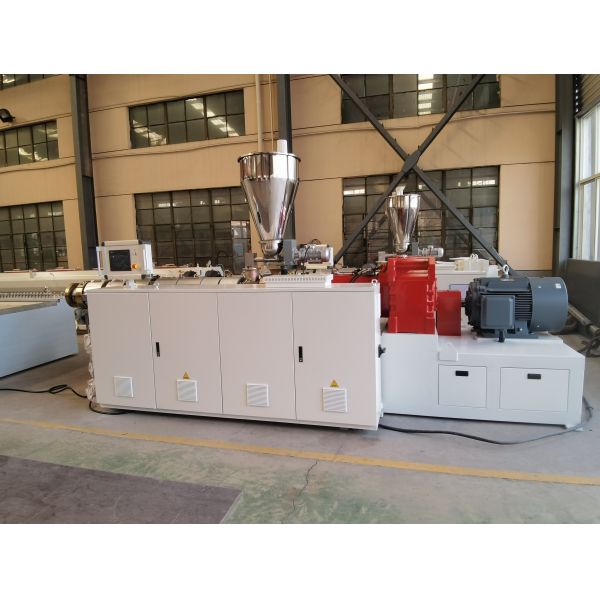

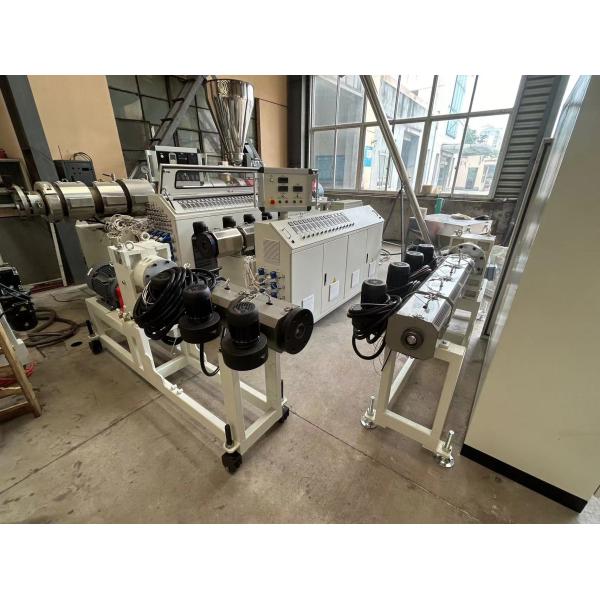

Conical Twin Screw Extruder: Specifically engineered for processing dry PVC powder blends. Our design ensures homogeneous mixture, superior plastification, and optimal conveying efficiency. Features permanent magnet synchronous motors for high energy efficiency and PLC control system for centralized production line management.
Plate Mould: Double strand mold configuration for PVC trunking production lines dramatically increases productivity. Advanced channel design provides exceptional flow performance, producing profiles with high dimensional precision.

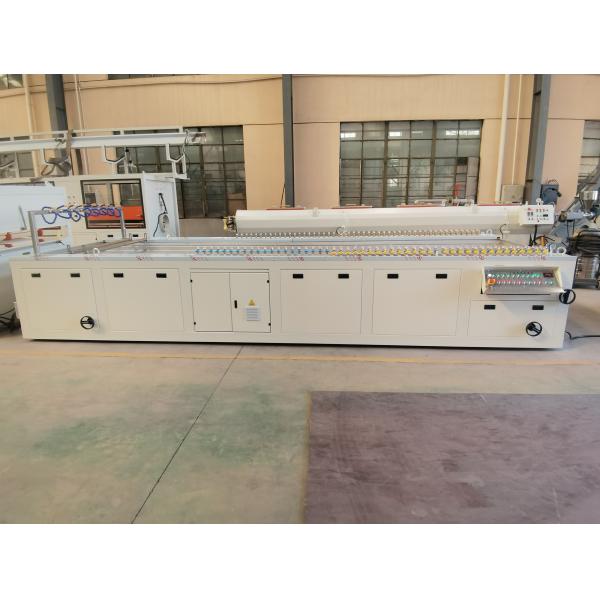

Calibration Table: Constructed with stable steel frame and SUS 304 stainless steel body. Multi-dimension position adjustment system combined with precisely arranged water pumps and vacuum calibrators ensures rapid shaping and cooling of PVC profiles. Adequate length guarantees optimal profile formation.

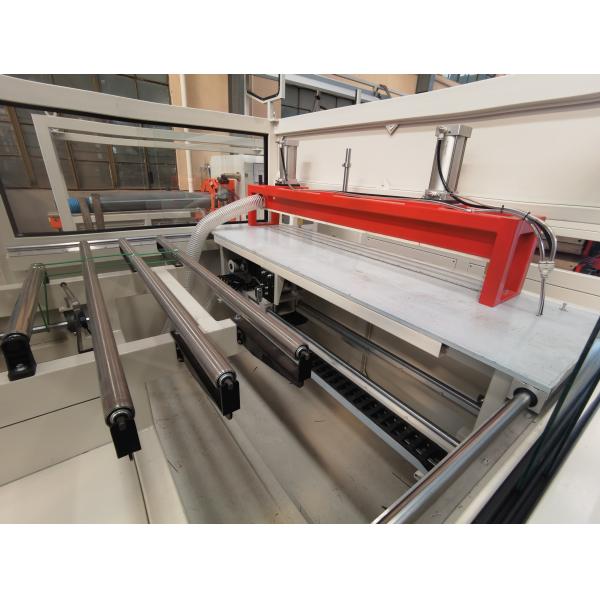

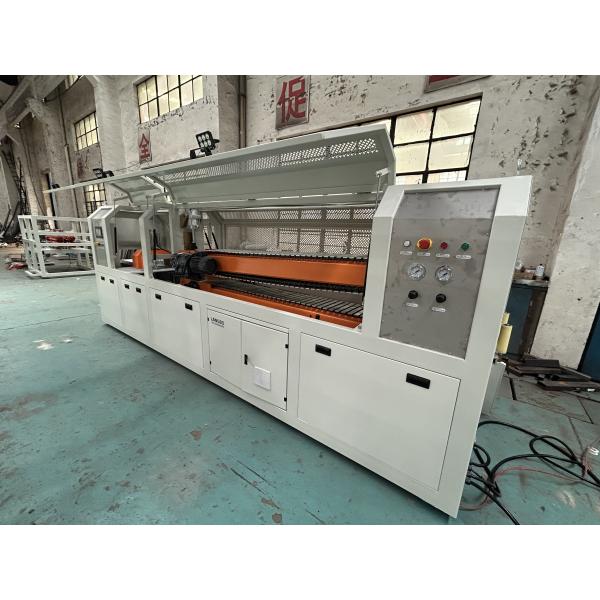

Haul-off & Cutter Combination: Even force distribution across s provides sufficient hauling capacity. High-quality rubber components and pneumatic pressure systems facilitate easy adjustment and product protection. Customizable cutting options include swarfless and saw cutting methods.
Product Images
55/110 High Precision PVC Plastic Profile Extrusion Machine 55/110 High Precision PVC Plastic Profile Extrusion Machine 55/110 High Precision PVC Plastic Profile Extrusion Machine 55/110 High Precision PVC Plastic Profile Extrusion Machine 55/110 High Precision PVC Plastic Profile Extrusion Machine 55/110 High Precision PVC Plastic Profile Extrusion Machine 55/110 High Precision PVC Plastic Profile Extrusion Machine
