Specifications
Brand Name :
LB
Model Number :
LB-95/33
Certification :
CE,ISO
Place of Origin :
JIANGSU ZHANGJIAGANG
MOQ :
1
Price :
USD
Supply Ability :
15 sets per month
Delivery Time :
45 days
Packaging Details :
Film or wooden boxes
EXTRUDER MODEL :
SINGLE SCREW EXTRUDET
PROFILE'S SIZE :
MAX. 2140MM
single screw extruder :
SJ 120/35
RAW MATERIAL :
PP PELLETS
CUTTER :
SAW CUTTER
Voltage :
380V 50HZ 3Phase(Customized)
Inverter :
ABB
Application :
CONSTRUCTION
Warranty :
12 months after installation in local place
COLOR :
depand on customers' demand
PACKING METHOD :
FILM OR WOODEN BOXES
Description
Processing Workflow
The complete production process follows this sequence: PVC powder + additives → mixing material feeder → twin screw extruder → mould and calibrator → vacuum forming table → haul-off machine → cutting machine → discharge rack.
Key Features
  • Conical twin screw extruder compatible with both PVC powder and granules
  • Integrated degassing system for superior material plasticization
  • High-speed mould technology for enhanced productivity
  • Advanced PLC control system for centralized production management
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Production Components

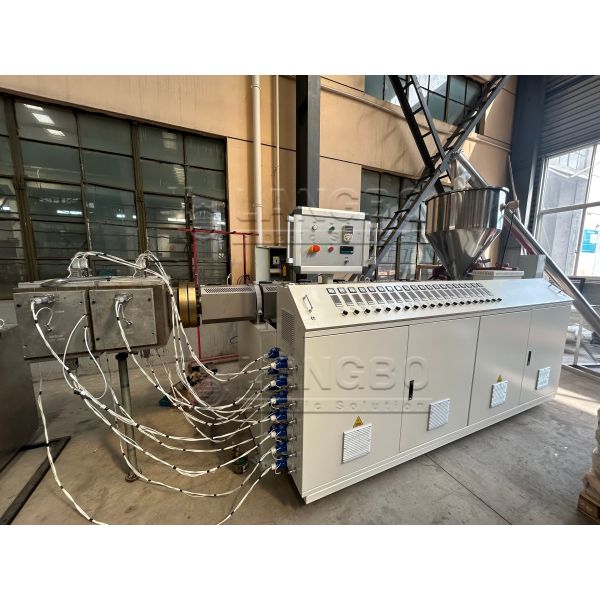

Single Screw Extruder
Features specially designed screws optimized for processing dry PVC powder blends. The conical twin screw extruder ensures homogeneous mixture, superior plastification, and efficient material conveying. Powered by permanent magnet synchronous motors for high energy efficiency.
Plastic PP PE WPC Decking Board Floor Wood Composite Profile Extrusion Line

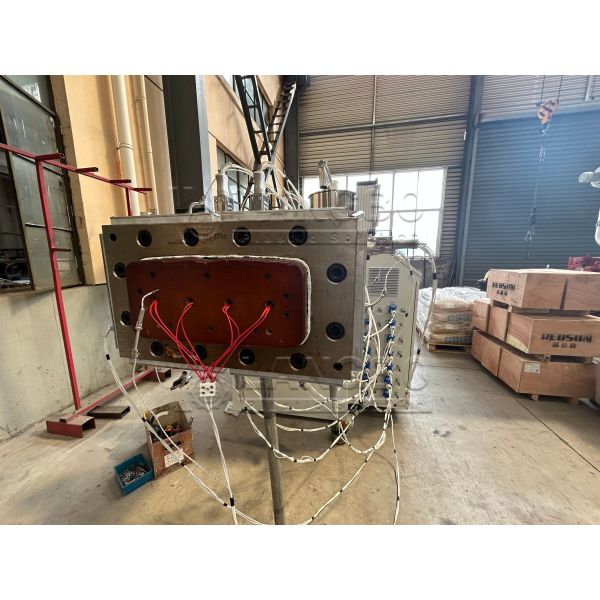

Plate Mould
Double strand mould configuration for PVC trunking production significantly increases output. Advanced channel design provides exceptional flow performance and produces profiles with high dimensional precision.
Plastic PP PE WPC Decking Board Floor Wood Composite Profile Extrusion Line

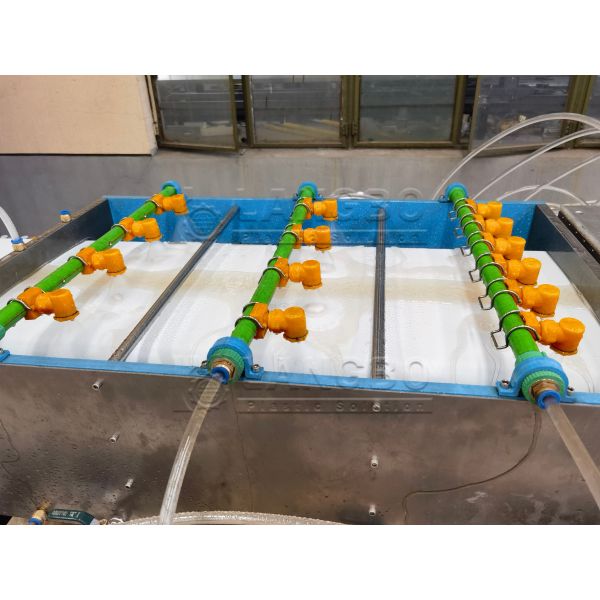

Calibration Table
Constructed with stable steel frame and SUS 304 stainless steel body. Features multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling of PVC profiles.
Plastic PP PE WPC Decking Board Floor Wood Composite Profile Extrusion Line

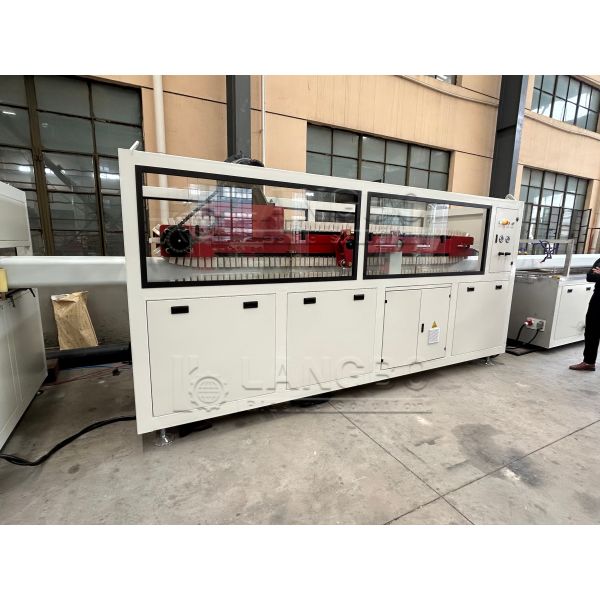

Haul-off System
Provides uniform force distribution across all crawler tracks with sufficient hauling capacity. High-quality rubber components and pneumatic pressure system enable easy adjustment and product protection.
Plastic PP PE WPC Decking Board Floor Wood Composite Profile Extrusion Line

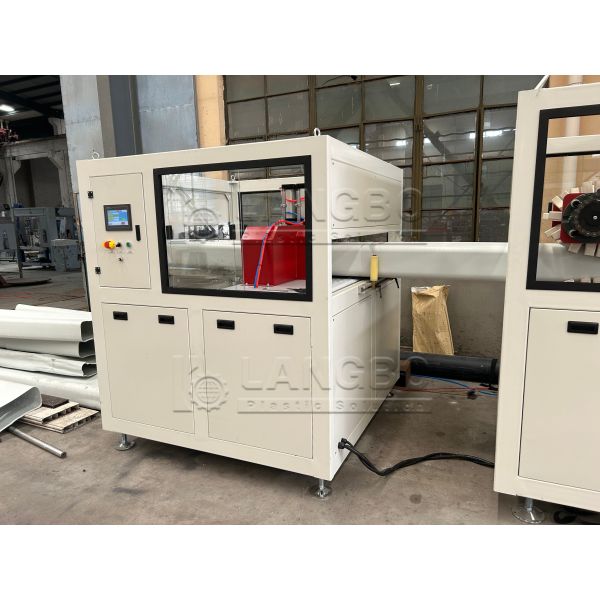

Cutting Unit
Ensures perfect finishing with clean, precise cuts on the final product.
Plastic PP PE WPC Decking Board Floor Wood Composite Profile Extrusion Line Plastic PP PE WPC Decking Board Floor Wood Composite Profile Extrusion Line
