Plastic PPR Water Pipe Cable Conduit Pipe Extruder Making Machine Tube Extrusion Production Machine Line

Introduction:

The Plastic PPR Water Pipe Cable Conduit Pipe Extruder Making Machine is a high-performance production line designed for manufacturing PPR (Polypropylene Random Copolymer) pipes and cable conduits with precision and efficiency. This advanced extrusion system ensures consistent quality, durability, and high output, making it ideal for water supply systems, electrical wiring protection, and industrial piping applications.

Equipped with state-of-the-art extrusion technology, the machine features automated controls, precise temperature regulation, and high-speed extrusion capabilities, ensuring smooth and stable production. The production line includes a single-screw extruder, vacuum calibration tank, cooling system, haul-off unit, cutting device, and stacking system, providing a complete solution for pipe manufacturing.

Extrusion line details:

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

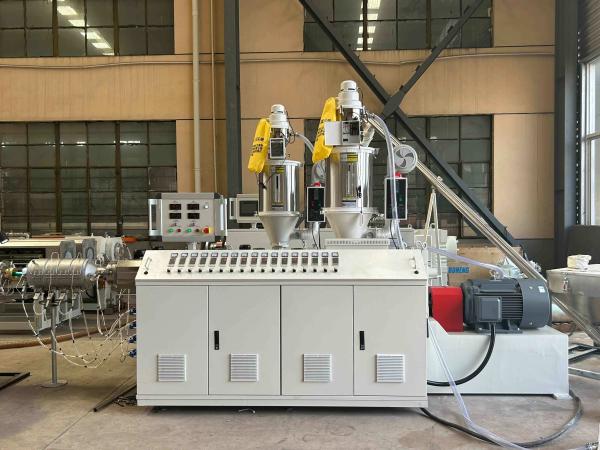

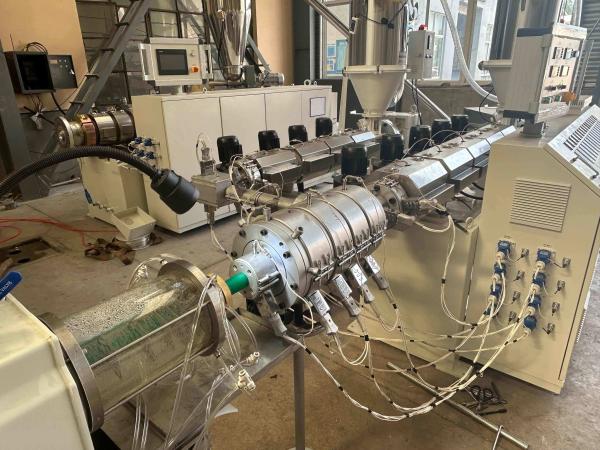

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

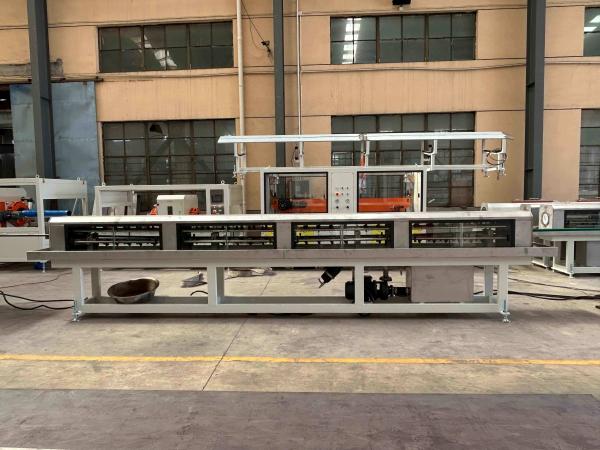

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

Hauling & Cutting

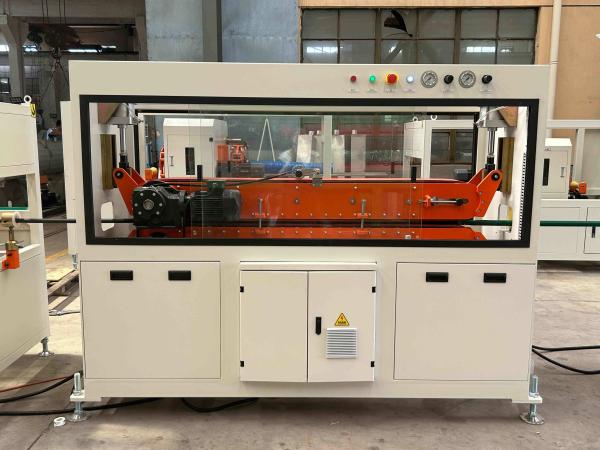

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

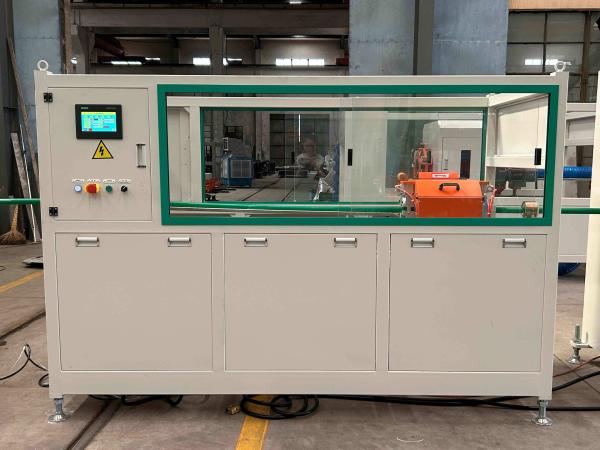

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High Efficiency & Output

Advanced extrusion technology ensures high-speed production with stable performance, maximizing productivity.

Superior Quality Pipes

Precise temperature control and vacuum calibration guarantee uniform wall thickness, smooth surfaces, and excellent mechanical strength.

Energy-Saving Design

Optimized heating and cooling systems reduce power consumption, lowering operational costs.

User-Friendly Operation

PLC control system with touch-screen interface allows easy adjustment and monitoring of production parameters.

Durable & Low Maintenance

High-quality components and robust construction ensure long service life with minimal downtime.

Versatile Applications

Suitable for producing PPR water pipes (hot/cold water supply), cable conduits, and other plastic tubes in various diameters.

Customizable Options

Available in different configurations to meet specific production needs, including auto-cutting, printing, and coiling systems.
