PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
Specifications
MOQ :
1 SET
Delivery Time :
45 WOKING DAYS
Application :
Water supply, heating systems, and industrial piping
Model Number :
LB-63/33
Screw Design :
Single screw
Payment Terms :
L/C,T/T
Power :
30KW
Control :
PLC+Touch Screen
Price :
Negotiable（USD EUR）
Machinelength :
Approx. 15-20 meters
Supply Ability :
15 SETS PER MONTH
Extruder Model :
SJ65/33
Brand Name :
LB
Cooling Method :
Water cooling tank
Productioncapacity :
100-300 kg/h
Place of Origin :
ZHANGJIAGANG
Capacity :
250-300kg/h
Packing :
Export Standard film packing
Certification :
CE/ISO
Packaging Details :
NORMAL PACKAGE
Control System :
PLC with remote control system
Automatic :
Full Automatic
Description
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
This specialized PPR pipe making machine is designed for manufacturing durable pipes used in plumbing and floor heating systems, utilizing advanced co-extrusion technology for superior product quality.
Co-Extrusion Process
Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for various applications.
Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180

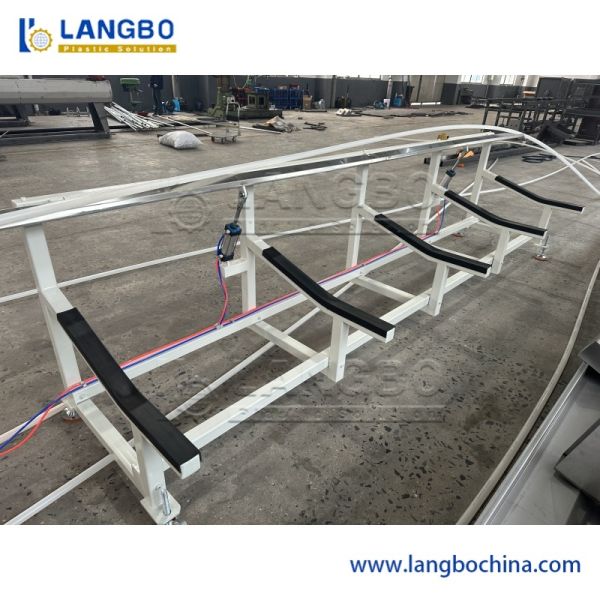

Product Images
PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall PPR Pipe Extrusion Line Providing Continuous Production Capability With Precise Thickness Control And Uniform Pipe Wall
