Tube Extrusion Line PPR Plastic Water Gas Oil Supply Pipe Tube Extrusion Production Line

Introduction:

The PPR Plastic Pipe Extrusion Production Line is a state-of-the-art manufacturing system designed for producing high-quality PPR (Polypropylene Random Copolymer) pipes, widely used in water supply, gas distribution, and oil transportation systems. This advanced extrusion line ensures precision, efficiency, and durability, making it ideal for industrial and construction applications.

Equipped with cutting-edge extrusion technology, the production line includes automatic feeding, high-efficiency extrusion, vacuum calibration, cooling, cutting, and stacking systems, ensuring smooth and continuous pipe manufacturing. The PPR pipes produced are corrosion-resistant, heat-resistant, environmentally friendly, and have a long service life, meeting international standards such as ISO, DIN, and ASTM.

Whether for residential plumbing, industrial pipelines, or municipal infrastructure, this extrusion line delivers consistent quality, high output, and energy efficiency, making it a top choice for pipe manufacturers worldwide.

Extrusion line details:

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

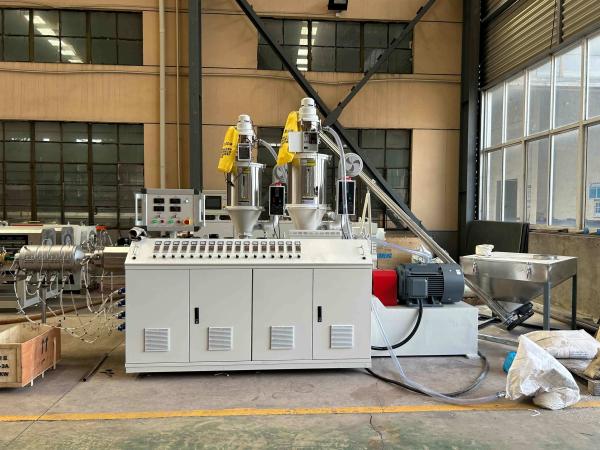

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

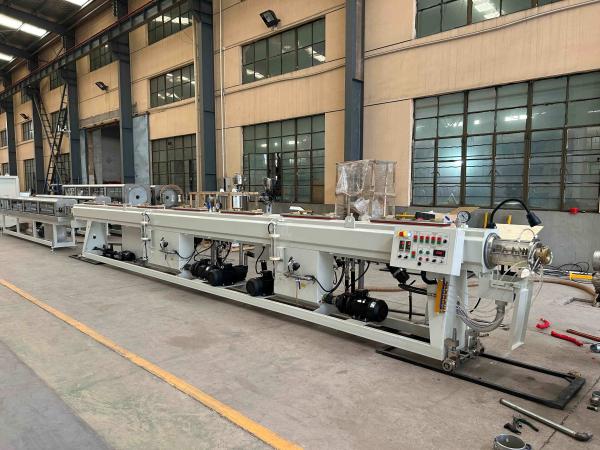

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High-Quality Output – Produces smooth, durable, and leak-proof PPR pipes with excellent mechanical strength and chemical resistance.

Energy-Efficient & Cost-Effective – Advanced extrusion technology reduces energy consumption while maintaining high production efficiency.

Fully Automated Operation – Minimizes manual intervention with PLC control systems, ensuring precision and consistency.

Versatile Applications – Suitable for hot/cold water supply, gas transmission, and oil pipelines, meeting diverse industry needs.

Long Service Life – PPR pipes are corrosion-resistant, heat-resistant (up to 95°C), and pressure-resistant, ensuring decades of reliable performance.

Compliance with International Standards – Meets ISO 15874, DIN 8077/8078, and ASTM standards, ensuring global market acceptance.

Fast & Stable Production – High-speed extrusion, precise calibration, and efficient cooling systems ensure high output with minimal downtime.

Easy Maintenance & Low Noise – Designed for user-friendly operation and minimal maintenance, with noise-reduction features for a better working environment.

Investing in this PPR Pipe Extrusion Line guarantees superior product quality, operational efficiency, and long-term profitability for your pipe manufacturing business.
