Plastic PPR Water Pipe Cable Conduit Pipe Extruder Making Machine Tube Extrusion Production Machine Line

Introduction:

The Plastic PPR Water Pipe, Cable Conduit Pipe Extruder Making Machine is a high-performance production line designed for manufacturing durable PPR (Polypropylene Random Copolymer) pipes for water supply systems and cable conduit pipes. This advanced extrusion machine ensures precision, efficiency, and consistency in producing high-quality plastic tubes with excellent thermal resistance, corrosion resistance, and long-term durability.

Equipped with state-of-the-art extrusion technology, the machine features automatic feeding, precise temperature control, vacuum calibration, and cutting systems to ensure smooth and stable production. It is widely used in construction, plumbing, electrical wiring, and industrial applications, providing reliable piping solutions for various industries.

Extrusion line details:

Loader → Dryer → Single-screw Extruder→ Mould→ Vacuum &Spraying Cooling Tank →Hauling-off → Cutter/Winder → Pipe stacker

Material Feeding & Drying

PPR resin pellets are loaded into the hopper and automatically fed into the drying system to remove moisture, ensuring optimal extrusion quality.

Extrusion

The dried material is melted in a single-screw or twin-screw extruder with precise temperature control.

The molten PPR is pushed through a pipe die head to form a continuous pipe shape.

Vacuum Calibration & Cooling

The pipe enters a vacuum calibration tank to stabilize the diameter and wall thickness.

It then passes through a cooling water tank to solidify the structure.

Hauling & Cutting

A haul-off machine pulls the pipe at a controlled speed to maintain uniformity.

An automatic cutting machine cuts the pipe to the required lengths.

Printing & Stacking

A printing machine marks the pipe with specifications (size, pressure rating, brand, etc.).

The finished pipes are collected by an automatic stacking machine for packaging.

Quality Inspection

Each pipe undergoes dimensional checks, pressure testing, and visual inspection to ensure compliance with industry standards.

Features

High Efficiency & Stable Output – The extrusion line operates with high-speed production capabilities, ensuring consistent output with minimal downtime.

Precision Extrusion Technology – Advanced screw and barrel design ensures uniform melting and extrusion, producing pipes with smooth surfaces and precise dimensions.

Energy-Saving & Eco-Friendly – Optimized heating and cooling systems reduce energy consumption while maintaining high production efficiency.

Durable & Low Maintenance – Made from high-quality materials and components, the machine offers long service life with minimal maintenance requirements.

Versatile Applications – Suitable for producing both PPR water pipes (for hot/cold water systems) and cable conduit pipes (for electrical wiring protection).

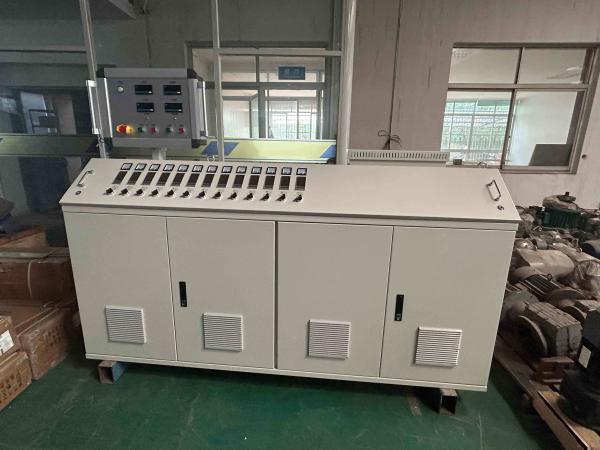

User-Friendly Control System – Equipped with an intuitive PLC control panel for easy operation, monitoring, and adjustment of production parameters.

Customizable Production – Supports different pipe diameters and thicknesses, allowing flexibility to meet various customer demands.

This Tube Extrusion Production Line is an ideal solution for manufacturers seeking reliable, high-performance machinery for plastic pipe production.
