Specifications
Brand Name :
LB
Model Number :
LB-108
Certification :
CE,ISO9001
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
Negotiable(USD,EUR)
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Screw And Barrel :
38CrMoALA, bi-metal
Extruder Type :
51/105 CONICAL TWIN SCREW EXTRUDER
Powersupply :
380V, 50Hz, 3 phase
Machine Length :
20m
Cuttingsystem :
Automatic saw cutting
Extrudertype :
twin screw extruder
Contactor :
OR SCHNIDER
Capacity :
350KG/H
Description
PVC Fluted Decoration Panel Extrusion Line | Stable Haul-Off & Precision Cutting
This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.
Production Capabilities
The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.
Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder
  • Specially engineered screws designed for processing dry PVC powder blends
  • Features permanent magnet synchronous motor for high energy efficiency
  • PLC control system for centralized production line management
Plate Mould System
  • Double strand mold configuration for PVC trunking production
  • Optimized channel design ensuring high flow performance
  • Precision profile manufacturing capabilities
Calibration Table
  • Sturdy steel frame construction with SUS 304 stainless steel body
  • Multi-dimension position adjustment system
  • Precisely arranged water pumps and vacuum calibrators
  • Rapid shaping and cooling technology

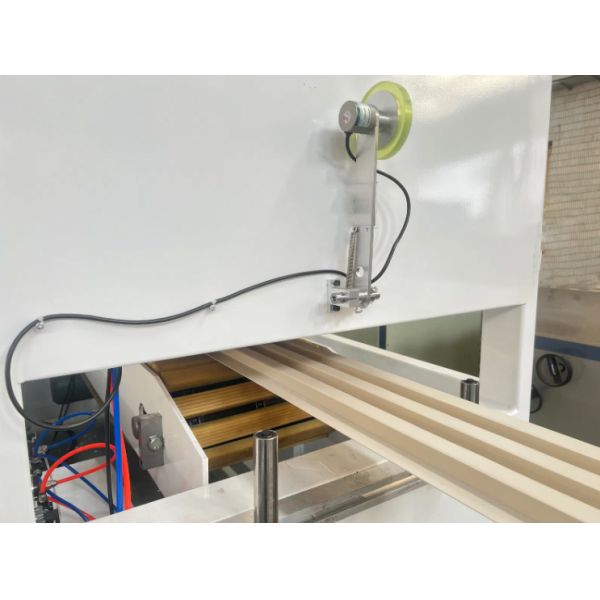

Haul-off & Cutting Combination
  • Even force distribution across s with high-quality rubber components
  • Pneumatic pressure system for easy adjustment and product protection
  • Customizable cutting options including swarfless and saw cutting methods
Production Line Images
PVC Fluted Decoration Panel Extrusion Line | Stable Haul-Off & Precision Cutting PVC Fluted Decoration Panel Extrusion Line | Stable Haul-Off & Precision Cutting PVC Fluted Decoration Panel Extrusion Line | Stable Haul-Off & Precision Cutting
