WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
Specifications
Brand Name :
LB
Model Number :
LB-300
Certification :
CE,ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
Negotiable（USD,EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Rawmaterial :
Wood flour, HDPE/LDPE/PP, additives
Outputcapacity :
1000-1500 kg per hour
Material :
Wood Plastic Composite (WPC)
Screwdiameter :
90 mm
Main Extruder Type :
CONICAL TWIN SCREW EXTRUDER
Controlsystem :
PLC control with touchscreen interface
Automationlevel :
Semi-automatic with manual feeding
Motor Power :
220KW
Description
WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Conical Twin Screw Extruder
Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.
  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)
Lima Energy Saving System provides significant vacuum energy savings.
  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units
Flexible solutions with independent tracks and continuous speed adjustment.
  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter

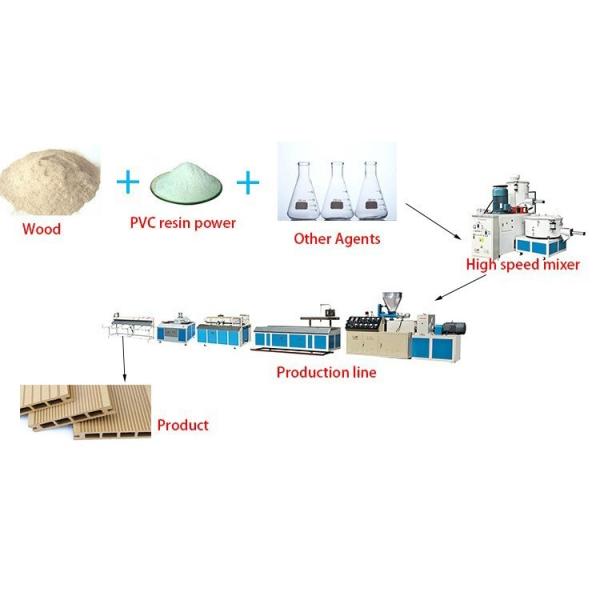

Complete Extrusion Line Components
Conical Twin Screw Extruder
Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould
Ideal viscosity design with polished contact surfaces to minimize friction losses.

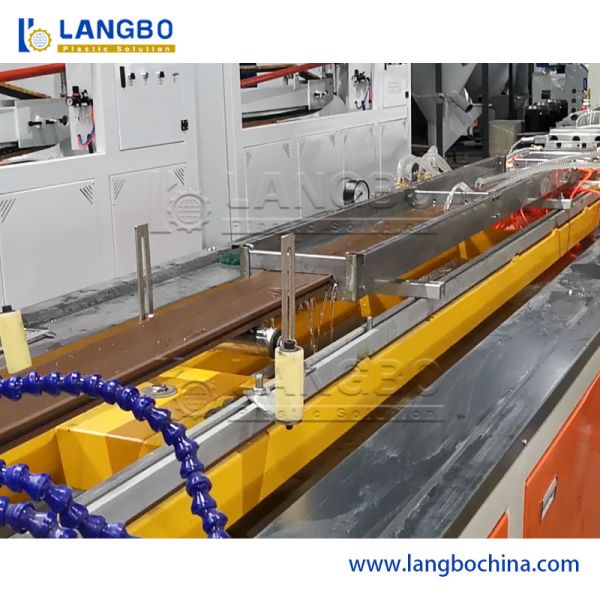

Calibration Table
Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off
Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter
High-efficiency cutting with integrated dust collection system.
Tip-off Unit
Pneumatic cylinder operation.
Production Specifications
MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER (kw)
LB-108 108 SJZ51/105 18.5 AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188 110 D
