WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
Specifications
Brand Name :
LB
Model Number :
LB-300W
Certification :
CE,ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
Negotiable（USD,EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Width :
200,240,300,400mm
Max Capacity :
300kg/h-900kg/h optional
Capacity :
100-150KG/H
Control :
PLC TOUCH SCREEN
Rawmaterial :
Wood flour, HDPE/LDPE/PP, additives
Main Extruder Model :
65/132
Processing Method :
FLUSHING
Material :
Wood Plastic Composite (WPC)
Cooling Way :
recycling water
Feature :
Long life use
Description
WPC Decking Line | Extrusion, Calibration, Embossing for Outdoor Boards
Conical Twin Screw Extruder

Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.

  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)

Lima Energy Saving System provides significant vacuum energy savings.

  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units

Flexible solutions with independent tracks and continuous speed adjustment.

  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter
Complete Extrusion Line Components

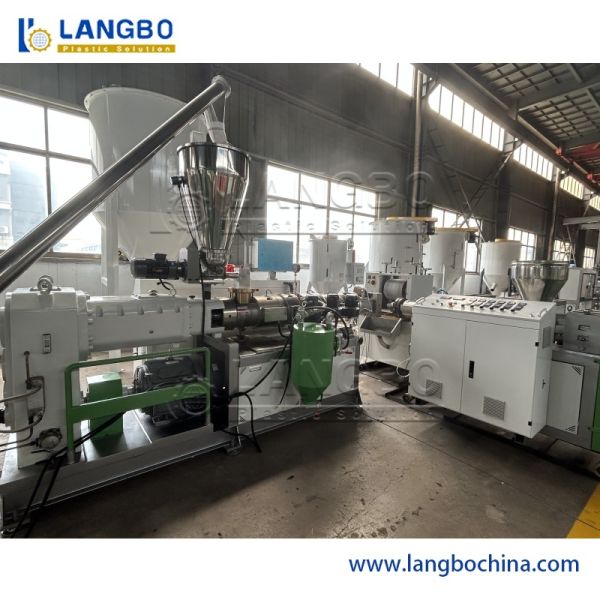

Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould: Ideal viscosity design with polished contact surfaces to minimize friction losses.
Calibration Table: Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.

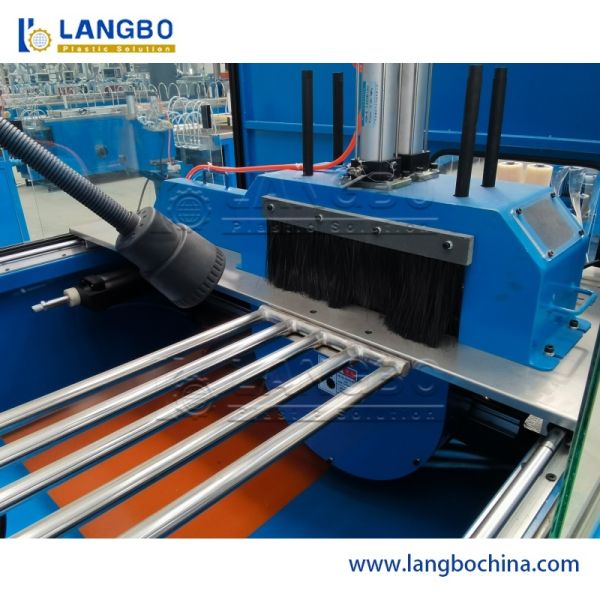

Saw Cutter: High-efficiency cutting with integrated dust collection system.
Tip-off Unit: Pneumatic cylinder operation.
Production Specifications
MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER (kw)
LB-108 108 SJZ51/105 18.5 AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188 110 D
