Specifications
Brand Name :
LB
Model Number :
LB-300W
Certification :
CE,ISO
Place of Origin :
ZHANGJIAGANG
MOQ :
1 SET
Price :
Negotiable（USD,EUR）
Payment Terms :
L/C,T/T
Supply Ability :
15 SETS PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
STANDARD PACKAGE
Motor Drive :
55KW
Production Type :
Co-extrusion
Rawmaterialcompatibility :
Wood fiber, plastic powder, additives
Width :
200,240,300,400mm
Screw Design :
Double-screw
Outputcapacity :
1000-1500 kg per hour
Productwidthrange :
100-200 mm
Port :
Shanghai, China
Productionlinetype :
Automatic continuous production line
Output Capacity :
250KG/H
Description
WPC Decking Line with Wear Resistance and Compressive Strength Suitable for Outdoor Decking

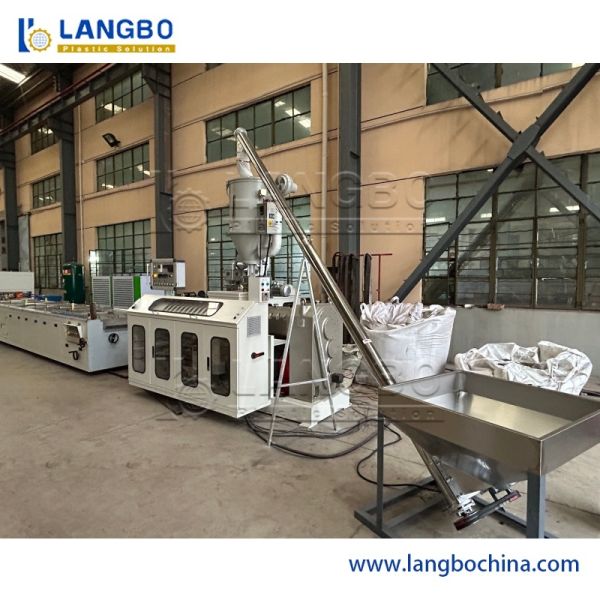

Conical Twin Screw Extruder

Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.

  • High flexibility in raw material combinations
  • Gentle and homogeneous plastification
  • Barrel with air cooling system
  • AC motors for low energy consumption
  • Control panel with color touch screen
Energy Saving System (LESS)

Lima Energy Saving System provides significant vacuum energy savings.

  • Vacuum energy savings up to 80%
  • Vacuum pumps driven by individual frequency inverters
  • Low noise level operation
  • Closed circuit water system
Crawler Track Haul-off Units

Flexible solutions with independent tracks and continuous speed adjustment.

  • Flexibility in pad dimensions
  • Two independent tracks with gearboxes
  • Speed adjustment by inverter

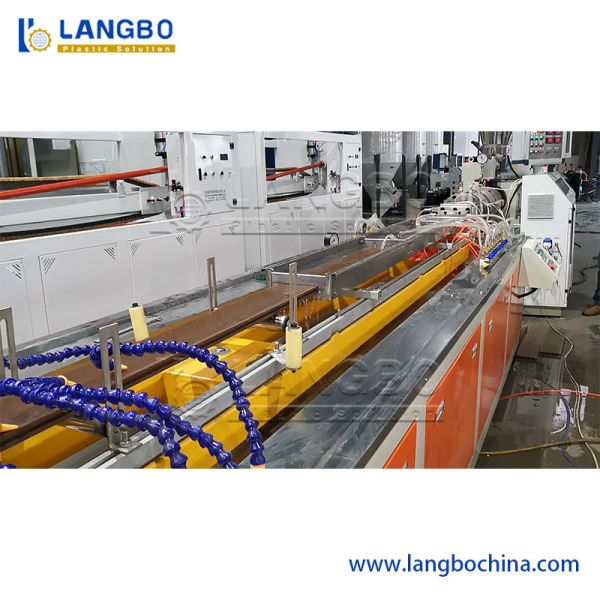

Complete Extrusion Line Components
Conical Twin Screw Extruder: Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould: Ideal viscosity design with polished contact surfaces to minimize friction losses.

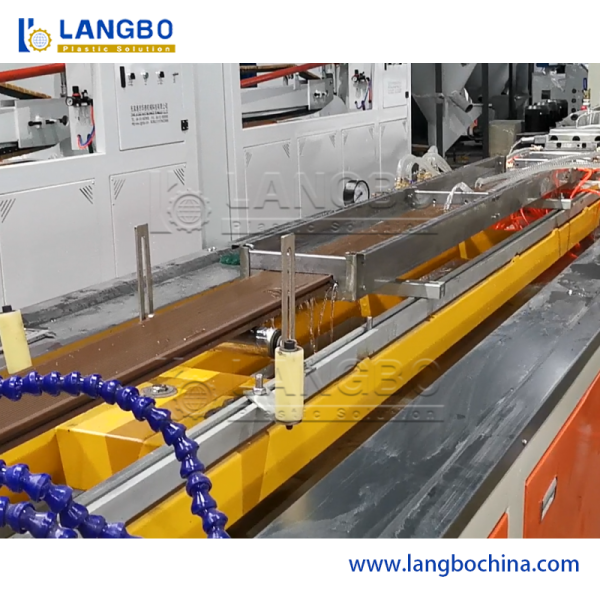

Calibration Table: Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off: Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter: High-efficiency cutting with integrated dust collection system.
Tip-off Unit: Pneumatic cylinder operation.
Production Specifications
MODEL PROFILE SIZE (mm) EXTRUDER MODEL MOTOR POWER (kw)
LB-108 108 SJZ51/105 18.5 AC
LB-180 180 SJZ55/110 22 AC
LB-300 300 SJZ65/132 37 AC
LB-600 600 SJZ80/156 55 AC
LB-800 800 SJZ80/156 55 AC
LB-1240 1240 SJZ92/188 110 D
