Specifications
Model Number :
LB-63
Pipelengthcutting :
Automatic cutting system
Brand Name :
LB
Weight :
6000-12000Kg
MOQ :
1 SET
Delivery Time :
45 WOKING DAYS
Screwdiameter :
45mm to 65mm
Die Head :
3 layer co-extrusion with two extruders
Payment Terms :
L/C,T/T
Totalpower :
30kW - 100kW
Supply Ability :
15 SETS PER MONTH
Automatic :
Full Automatic
Price :
Negotiable（USD EUR）
Productioncapacity :
50-300 kg/h
Certification :
CE/ISO
Production Speed :
12m/min; 20m/min; 28m/min
Place of Origin :
ZHANGJIAGANG
After Sales Service :
Engineer Overseas Service
Packaging Details :
NORMAL PACKAGE
Warrantyperiod :
12 months
Description
PPR Pipe Production Line 16–160mm Vacuum Calibration Water Cooling Continuous Extrusion System
This specialized PPR pipe making machine is designed for manufacturing pipes used in plumbing and floor heating systems, utilizing advanced co-extrusion technology for superior product quality.
Co-Extrusion Process
Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.
Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images
16–160mm PPR Pipe Production Line with Vacuum Calibration Water Cooling and Continuous Extrusion System

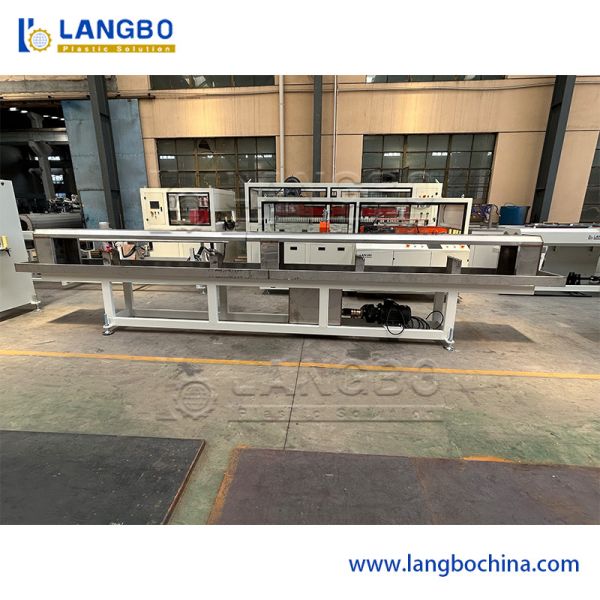

Front view showing complete machine setup
16–160mm PPR Pipe Production Line with Vacuum Calibration Water Cooling and Continuous Extrusion System
Control panel and extruder section
16–160mm PPR Pipe Production Line with Vacuum Calibration Water Cooling and Continuous Extrusion System
Vacuum tank and cooling system
16–160mm PPR Pipe Production Line with Vacuum Calibration Water Cooling and Continuous Extrusion System
Haul-off and cutter mechanism
16–160mm PPR Pipe Production Line with Vacuum Calibration Water Cooling and Continuous Extrusion System
Coiler and finished product handling
