PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
Specifications
Dimentions :
20*2.5*3m
Brand Name :
LB
Price :
Negotiable（USD,EUR）
Panel Size :
200-600mm wide
Packaging Details :
STANDARD PACKAGE
Place of Origin :
ZHANGJIAGANG
Coolingmethod :
Water cooling tank
MOQ :
1 SET
Supply Ability :
15 SETS PER MONTH
Vacuum Tank Material :
SUS304 3MM THICKNESS
Calibration Table :
EIGHT MTERS LONG
Cutter :
SAW CUTTER
Certification :
CE,ISO9001
Heating Method :
Cast-aluminum heater
Power :
15-25 KW
Machine Warranty :
12months
Payment Terms :
L/C,T/T
Delivery Time :
45 WORKING DAYS
Output :
30-50 kg/h
Model Number :
LB-51/105
Description
PVC Skirting Board Extrusion Line decoration PVC profile machine
Complete PVC Profile Manufacturing Solution

This specialized PVC profile production line provides a complete manufacturing solution for producing PVC water stop profiles and various PVC profiles including window/door profiles, ceiling panels, and trunking systems.

Production Capabilities

This extrusion line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.

Processing Workflow
  • PVC powder + additive mixing
  • Material feeding system
  • Twin screw extrusion
  • Molding and calibration
  • Vacuum forming table
  • Haul-off mechanism
  • Precision cutting
  • Automated discharge rack
Technical Features

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.

Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder

Specially engineered screws designed for processing dry PVC powder blends. Features permanent magnet synchronous motor for high energy efficiency and PLC control system for centralized production line management.

Plate Mould System

Double strand mold configuration for PVC trunking production with optimized channel design ensuring high flow performance and precision profile manufacturing.

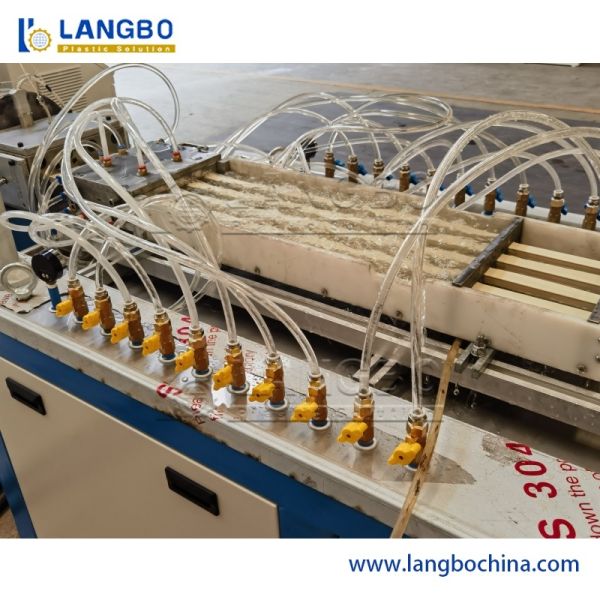

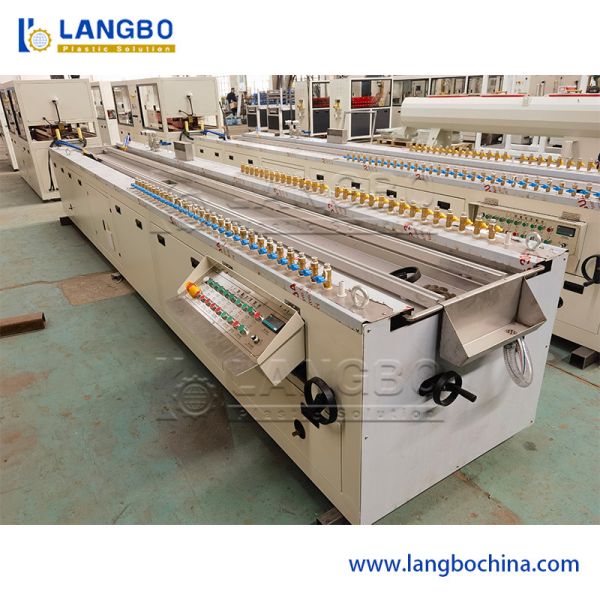

Calibration Table

Sturdy steel frame construction with SUS 304 stainless steel body. Multi-dimension position adjustment system with precisely arranged water pumps and vacuum calibrators for rapid shaping and cooling.

Haul-off & Cutting Combination

Even force distribution across surfaces with high-quality rubber components. Pneumatic pressure system for easy adjustment and product protection. Customizable cutting options including swarfless and saw cutting methods.

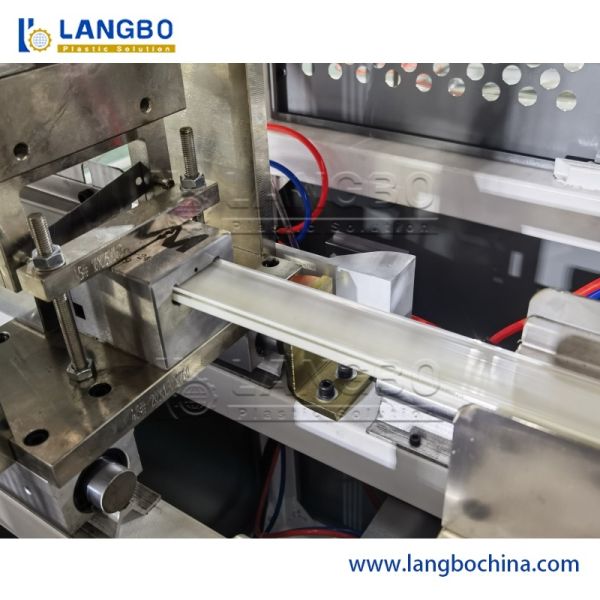

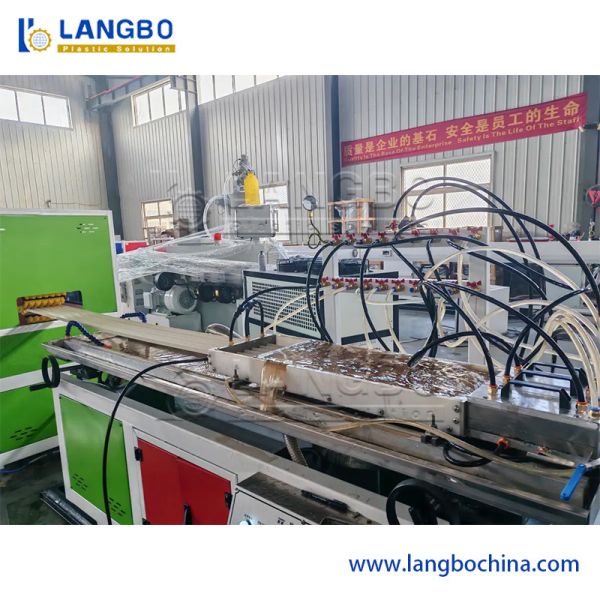

Production Line Images
PVC Skirting Board Extrusion Line decoration PVC profile machinePVC Skirting Board Extrusion Line decoration PVC profile machinePVC Skirting Board Extrusion Line decoration PVC profile machinePVC Skirting Board Extrusion Line decoration PVC profile machine
PVC Skirting Board Extrusion Line decoration PVC profile machine
