PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
Specifications
Place of Origin :
ZHANGJIAGANG
Price :
Negotiable(USD,EUR)
Delivery Time :
45 WORKING DAYS
Screw Diameter :
65/132
Screw :
Conical Twin Screw
Controlsystem :
PLC Control System
Brand Name :
LB
Mould Style :
6 cavities
Line Speed :
2-5 M/min
Voltage :
accordting to you
Packaging Details :
STANDARD PACKAGE
Motorpower :
30-75 kW
Supply Ability :
15 SETS PER MONTH
Warranty Time :
18 Months
MOQ :
1 SET
Certification :
CE,ISO9001
Payment Terms :
L/C,T/T
Model Number :
LB-108
Colour :
CUSTOMIZED
Capacity :
250KG/H
Description
PVC Profile Extrusion Machine For Complex Profile Forming And Automation
Product Overview

This specialized PVC profile production line is engineered to manufacture diverse PVC profiles with precision. Custom solutions and molds are developed based on specific drawing sections of PVC profiles.

Production Capabilities

The extrusion line incorporates a conical twin screw extruder compatible with both PVC powder and granules. Features include degassing system for superior material plasticization and high-speed mold technology for enhanced productivity.

Technical Specifications
Model LB180 LB240 LB300 LB600
Max Product Width (mm) 180 240 300 600
Screw Model SJ55/110 SJ65/132 SJ65/132 SJ80/156
Motor Power 22KW 37KW 37KW 55KW
Cooling Water (m³/h) 5 7 7 10
Compressor (m³/h) 0.2 0.3 0.3 0.4
Total Length (m) 18 22 22 25
Component Details
Conical Twin Screw Extruder
  • Specially engineered screws designed for processing dry PVC powder blends
  • Features permanent magnet synchronous motor for high energy efficiency
  • PLC control system for centralized production line management
Plate Mould System
  • Double strand mold configuration for PVC trunking production
  • Optimized channel design ensuring high flow performance
  • Precision profile manufacturing capabilities
Haul-off & Cutting Combination
  • Even force distribution across profiles with high-quality rubber components
  • Pneumatic pressure system for easy adjustment and product protection
  • Customizable cutting options including swarfless and saw cutting methods

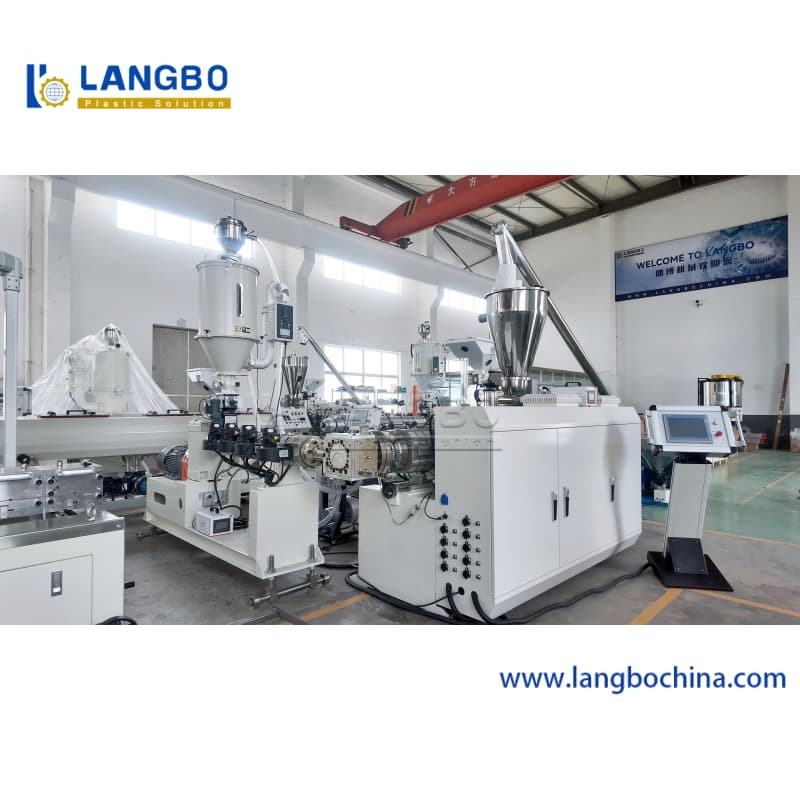

Production Line Images
PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity PVC Profile Extrusion Machine with Conical Twin Screw and PLC Control System for 250KG/H Capacity
