PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
Specifications
Delivery Time :
45 WOKING DAYS
Price :
Negotiable（USD EUR）
Payment Terms :
L/C,T/T
Brand Name :
LB
Model Number :
LB-63
Supply Ability :
15 SETS PER MONTH
Weight :
6000-12000Kg
Certification :
CE/ISO
Packaging Details :
NORMAL PACKAGE
Production Speed :
12m/min; 20m/min; 28m/min
After Sales Service :
Engineer Overseas Service
Die Head :
3 layer co-extrusion with two extruders
MOQ :
1 SET
Automatic :
Full Automatic
Warrantyperiod :
12 months
Screwdiameter :
45mm to 65mm
Totalpower :
30kW - 100kW
Pipelengthcutting :
Automatic cutting system
Productioncapacity :
50-300 kg/h
Place of Origin :
ZHANGJIAGANG
Description
PPR Pipe Extrusion Machine Multi-Layer Co-Extrusion For Hot And Cold Water Pipes
This specialized PPR pipe making machine is designed for manufacturing pipes used in plumbing and floor heating systems, utilizing advanced co-extrusion technology for superior product quality.
Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
Front view showing complete machine setup
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
Control panel and extruder section
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
Vacuum tank and cooling system
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes

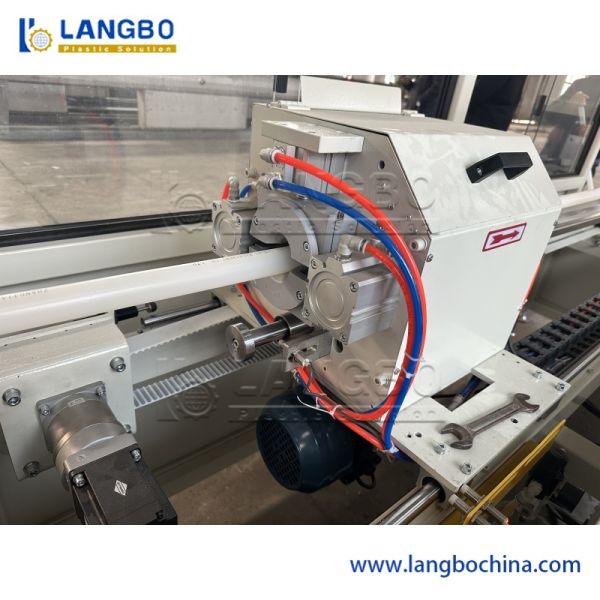

Haul-off and cutter mechanism
PPR Pipe Extrusion Machine with Multi-Layer Co-Extrusion and Automatic Cutting System for Hot and Cold Water Pipes
Coiler and finished product handling
