PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
Specifications
Extrusion Speed :
2-15m/min
Packaging Details :
NORMAL PACKAGE
Installationtype :
Floor Mounted
Brand Name :
LB
Screw Design :
Single-screw
MOQ :
1 SET
Payment Terms :
L/C,T/T
Production Speed :
12m/min; 20m/min; 28m/min
Model Number :
LB-63
Screwdiameter :
45mm - 65mm
Extruder Model :
6533
Plastic Processed :
PP PE PPR materials
Machinelength :
15-20 meters
Certification :
CE/ISO
Heating Concept :
ELECTRIC HEATER
Delivery Time :
45 WOKING DAYS
Electrical Components :
or Schnider
Place of Origin :
ZHANGJIAGANG
Max Output :
150kg/h
After Sales Service :
Engineer Overseas Service
Price :
Negotiable（USD EUR）
Supply Ability :
15 SETS PER MONTH
Description
PPR Pipe Extrusion Machine With Multi-Layer Control For Stripe Alignment And Uniform Wall Thickness
Extrusion Process

Multi-layer pipes are produced using co-extrusion pipe line technology. This specialized manufacturing process reduces raw material costs while creating pipes with enhanced functional characteristics.

For example, recycled materials can be used as the middle layer in PE thick wall pipes to optimize costs. For hot water supply applications, the production line incorporates PP-R layers along with additional structural layers such as glass fiber, providing superior performance characteristics.

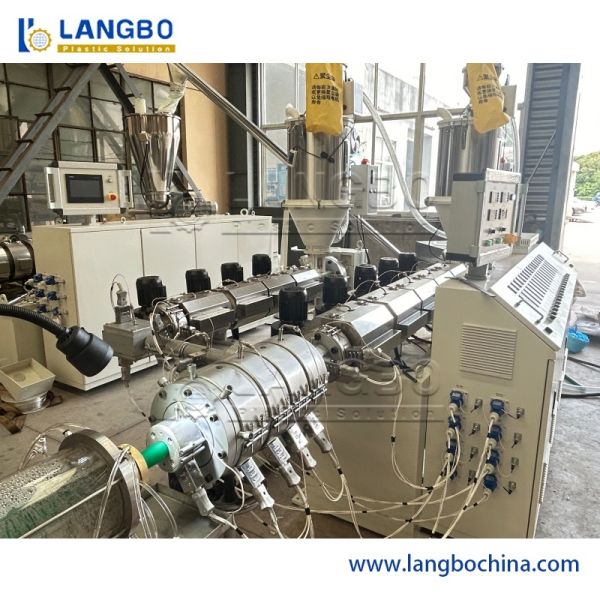

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter

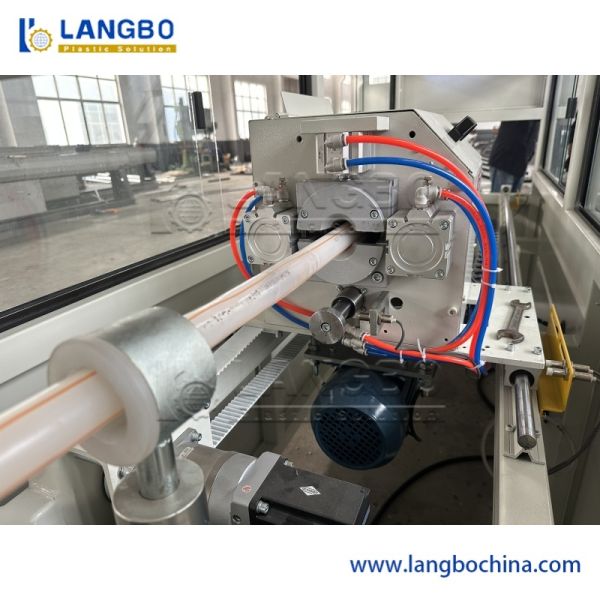

  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images
PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output PPR Pipe Extrusion Machine with Multi-Layer Control for Uniform Wall Thickness and 150kg/h Max Output
