Specifications
Pipediameterrange :
20mm - 110mm
Model Number :
LB-63
Production Speed :
12m/min; 20m/min; 28m/min
Payment Terms :
L/C,T/T
Packing Method :
Wooden and film packages
Price :
Negotiable（USD EUR）
Weight :
4000kg
Supply Ability :
15 SETS PER MONTH
Extruder Model :
6533
Brand Name :
LB
Extruderscrewdiameter :
45mm - 65mm
Output :
120kg/h
MOQ :
1 SET
Delivery Time :
45 WOKING DAYS
Screw And Barrel :
Single screw
Packaging Details :
NORMAL PACKAGE
Coolingmethod :
Water cooling tank
Certification :
CE/ISO
Cuttingmachine :
Automatic cutting machine
Place of Origin :
ZHANGJIAGANG
Description
PPR Pipe Production Line With Automatic Meter Counting For Drinking Water Pipelines
Product Overview

This advanced PPR pipe production line features automatic meter counting and delivers smooth inner surface finishes, specifically designed for drinking water pipeline applications.

Extrusion Process Technology

Multi-layer pipes are manufactured using sophisticated co-extrusion pipe line technology. This specialized process reduces raw material costs while creating pipes with enhanced functional characteristics.

  • Recycled materials can be utilized as the middle layer in PE thick wall pipes for cost optimization
  • For hot water supply applications, the production line incorporates PP-R layers with additional structural layers including glass fiber for superior performance
Complete Production Line Components

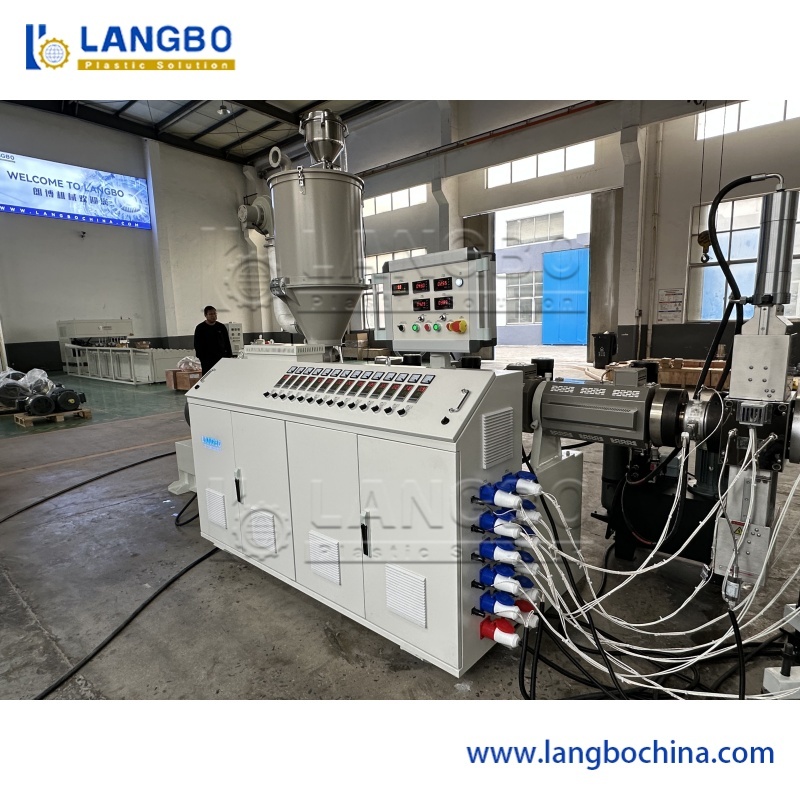

  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter

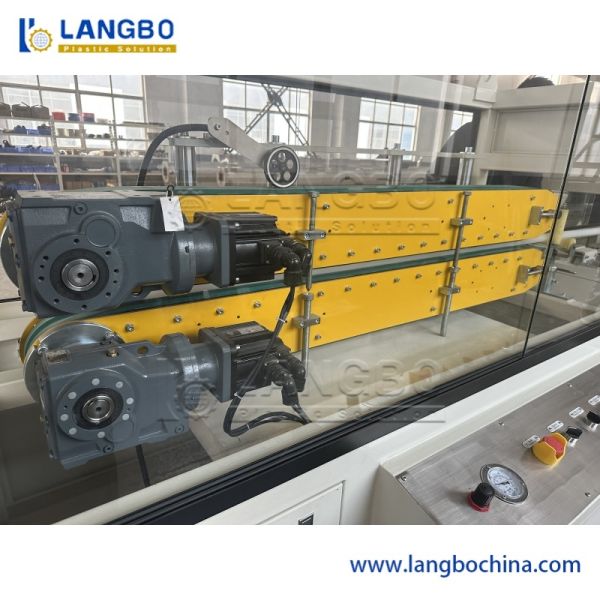

  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Technical Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images
PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range
